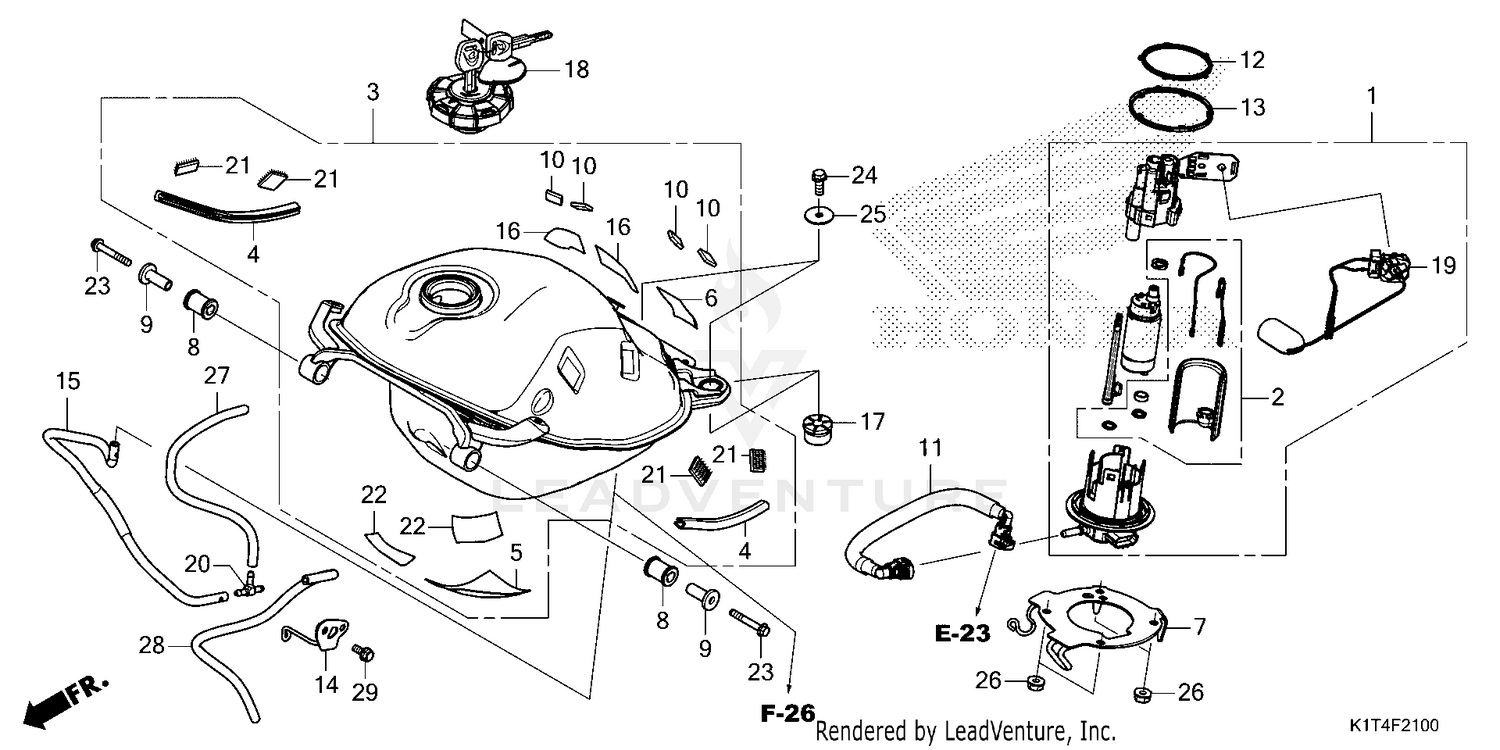

| Ref | Part Number | Description |
|---|
| 1 |
16700-K1T-E51 |
PUMP ASSY., FUEL (MSDS) Price: $145.76 |
| 2 |
16707-K45-N01 |
FILTER SET Price: $28.49 |
| 3 |
17500-K1T-E50ZA |
TANK ASSY., FUEL *NH105* (MAT BLACK) Price: $382.38 |
| 4 |
17516-KZZ-900 |
TRIM A, FUEL TANK Price: $7.22 |
| 5 |
17519-K1B-T00 |
FILM, TANK PROTECTOR Price: $8.89 |
| 6 |
17519-K35-V00 |
FILM, TANK PROTECTOR Price: $25.87 |
| 7 |
17527-K1T-E10 |
PLATE, SETTING Price: $10.65 |
| 8 |
17534-MFJ-D00 |
RUBBER, RR. TANK MOUNTING (FRONT SIDE) Price: $5.98 |
| 9 |
17538-KZZ-900 |
COLLAR Price: $2.67 |
| 10 |
17546-K1T-E50 |
RUBBER, TANK Price: $2.36 |
| 11 |
17570-K1T-E11 |
HOSE, FUEL FEED Price: $43.36 |
| 12 |
17572-GHB-613 |
GASKET, FUEL PUMP Price: $20.65 |
| 13 |
17573-KPN-A71 |
DUST SEAL Price: $15.16 |
| 16 |
17583-K1T-E10 |
FILM, TANK PROTECTOR Price: $3.04 |
| 17 |
17613-K1T-E10 |
CUSHION, FUEL TANK Price: $2.76 |
| 18 |
17620-K1T-E52 |
CAP COMP This part replaces 17620-K1T-E51. Price: $101.07 |
| 19 |
37800-K1T-E51 |
FUEL UNIT Price: $40.80 |
| 21 |
64243-MEW-920 |
FASTENER B, DUAL LOCK (20X20) Price: $3.73 |
| 22 |
84114-MFP-C80 |
FILM, PROTECTOR Price: $5.40 |
| 23 |
90004-GHB-710 |
BOLT, FLANGE (6X40) (NSHF) Price: $5.11 |
| 24 |
90013-GHB-620 |
BOLT, FLANGE (6X14) Price: $2.65 |
| 25 |
90521-K1T-E10 |
WASHER, PLAIN (6MM) Price: $1.24 |
