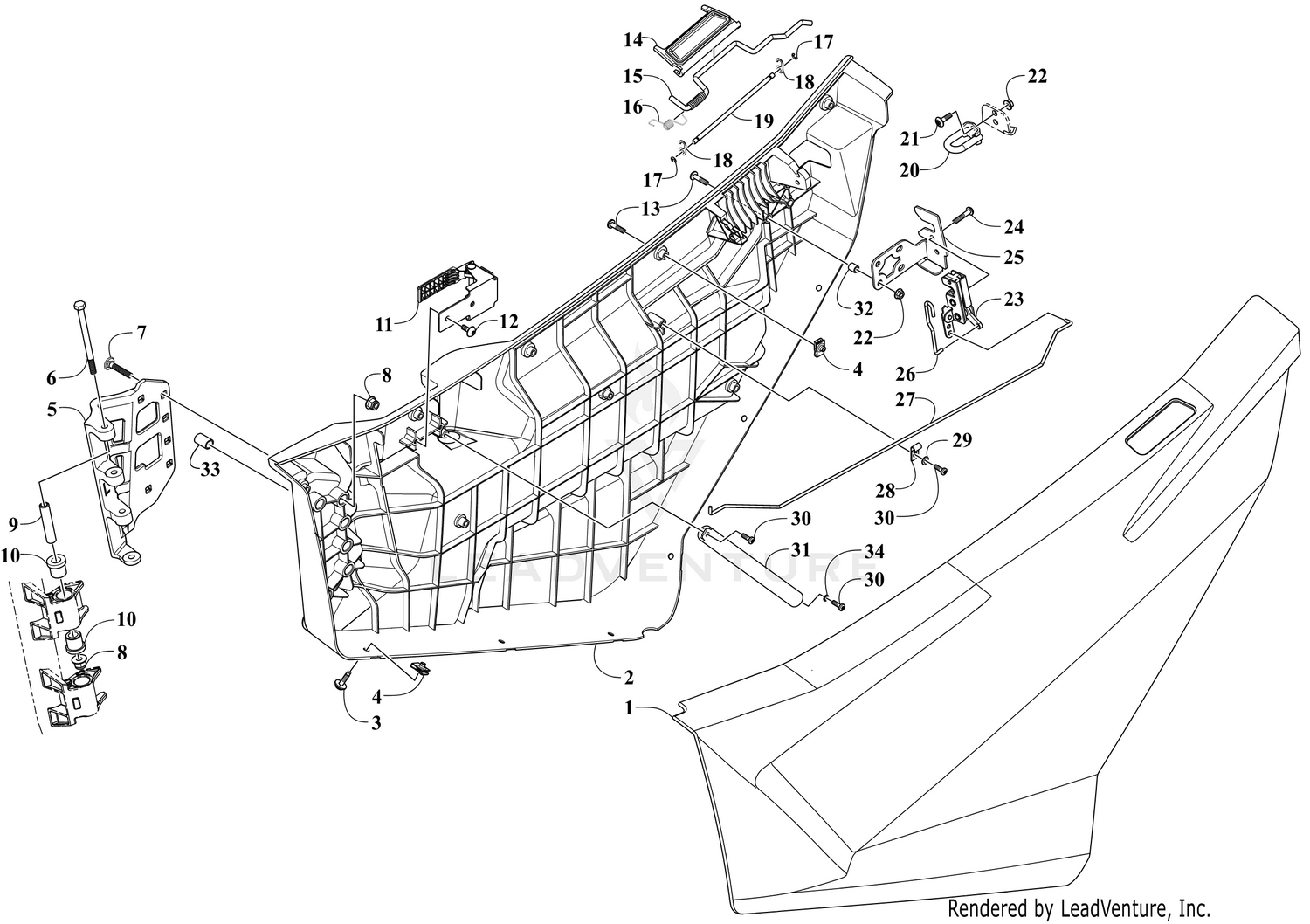

DOOR ASSEMBLY [304315]

DOOR ASSEMBLY [304315]

Parts (40)

RefPart NumberDescription
1 9506-958 Door, Panel - Right - Outer - Phantom Gray Price: Call Us
1 9506-959 Door, Panel - Left - Outer - Phantom Gray Price: Call Us
3 0423-609 Screw, Machine Not Available Price:
4 0423-577 Clip, U-Nut Price: $0.46
5 9506-044 PLATE,HINGE-DOOR-CASTING-MACH-RH Price: $140.95
5 9506-045 PLATE,HINGE-DOOR-CASTING-MACH-LH Price: $140.95
6 646701 BOLT,HXHD,M8 X 1.25 X 110,PC10.9 Price: $2.18
7 1423-577 BOLT,CARRIAGE-M8-1.25X40-GRADE 8.8 Price: $2.51
8 8427-802 Nut, Lock Price: $0.58
9 1423-606 SPACER,SLEEVE Price: $54.95
10 637745 BUSHING,LOWER CONTROL A-ARM Price: $6.02
11 6406-698 ACTUATOR,DOOR-INTERIOR-RH Price: $65.95
11 6406-699 ACTUATOR,DOOR-INTERIOR-LH Price: $65.95
12 1623-661 Screw, Self-Tapping Price: $2.72
13 8468-625 Screw, Machine Price: $0.71
14 6406-552 HANDLE,DOOR-PUSH BUTTON HINGE (XX RG) Price: $10.94
15 7406-028 ROD,ACTUATOR-REAR-RH Price: $10.94
15 7406-029 ROD,ACTUATOR-REAR-LH Price: $10.94
16 6406-914 SPRING,TORSION-RETURN-RH Price: $2.03
16 6406-915 SPRING,TORSION-RETURN-LH Price: $2.03
17 0423-667 E-CLIP,4.0 MM Price: $0.71
18 1423-609 RETAINER,ACTUATOR ROD Price: $1.72
19 7406-041 ROD,ACTUATOR STOP Price: $17.09
20 9506-332 STRIKER,WELDMENT-PTD BLK (E-COAT ONLY) Price: $46.95
21 8477-620 Screw, Machine Price: $0.58
22 8427-603 Nut, Lock Price: $0.35
23 6406-696 LATCH,DOOR-RH Price: $43.95
23 6406-697 LATCH,DOOR-LH Price: $47.95
24 8468-631 SCREW,MACH-TSPNH M6X1.0X30 CL8.8 W/2353 Price: $4.23
25 7406-234 BRKT,DOOR-LATCH-RH Price: $28.95
25 7406-235 BRKT,DOOR-LATCH-LH Price: $28.95
26 6406-218 LINK,DOOR-ACTUATOR-REAR Price: $9.35
27 6406-842 LINK,DOOR-ACTUATOR-FRONT-RH Price: $14.08
27 6406-843 LINK,DOOR-ACTUATOR-FRONT-LH Price: $14.08
28 2402-387 CLAMP,BRAKE LINE Price: $0.84
29 8050-157 WASHER,FLAT- #10 X .500 X .049 Z&Y Price: $1.32
30 2623-211 Screw, Self-Tapping Price: $1.32
31 8506-863 HANDLE,GRAB-DOOR-PTD BLK Price: $26.95
32 6406-742 TUBE,COMPRESSION LIMITER-ROUND-10MM Price: $3.70
33 6406-741 TUBE,COMPRESSION LIMITER-SLOTTED-20MM Price: $4.14
