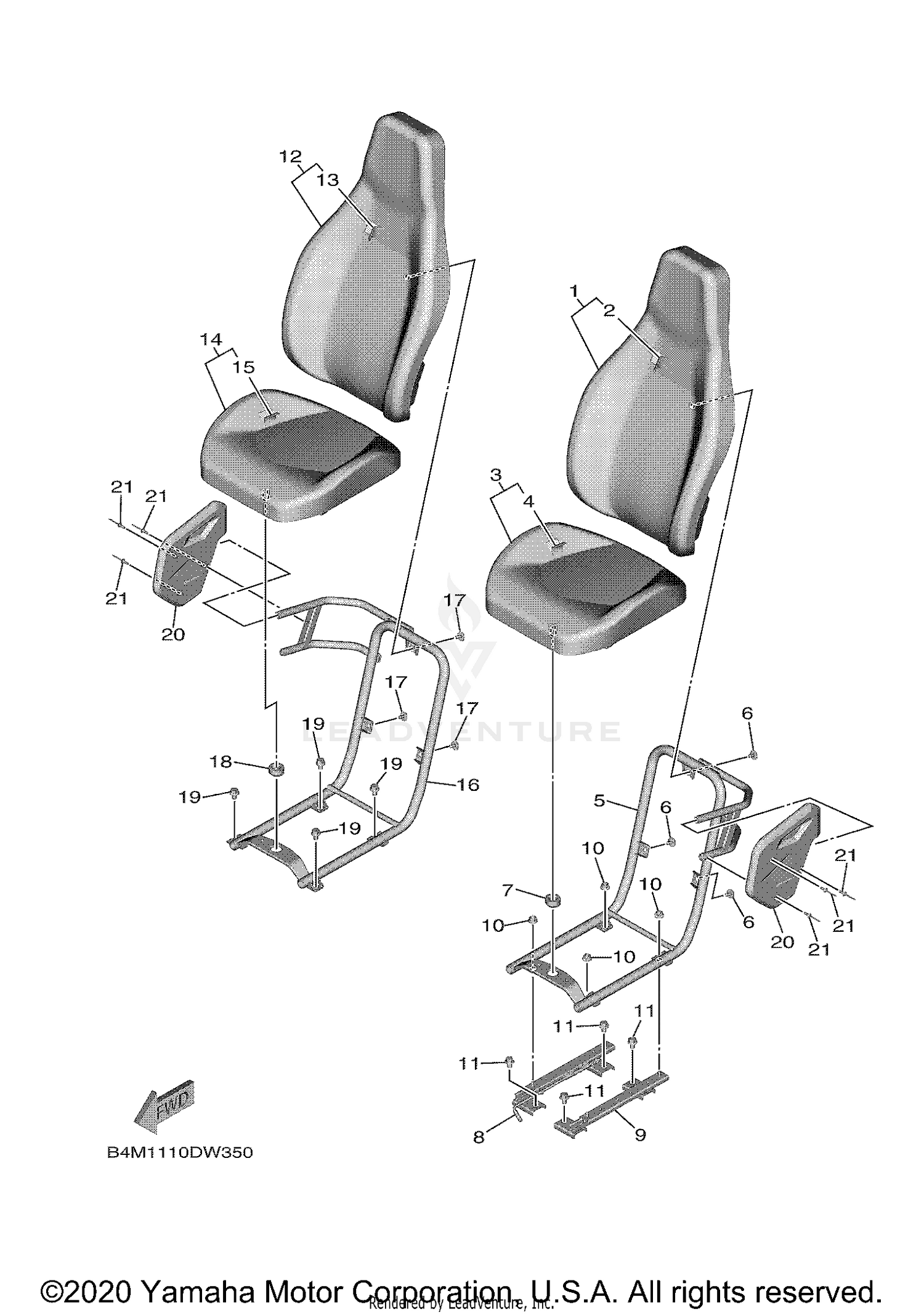

| Ref | Part Number | Description |
|---|
| 1 |
B4J-F4790-01-00 |
SEAT BACK ASSY This part replaces B4J-F4790-00-00. Price: $642.99 |
| 2 |
B4J-F4711-00-00 |
COVER, SINGLE SEAT Price: $288.99 |
| 3 |
B4J-K8420-00-00 |
SEAT ASSY 2 Price: $498.99 |
| 4 |
B4J-F4791-00-00 |
COVER, SEAT BACK Price: $399.99 |
| 5 |
B4J-F473C-02-00 |
FRAME, SEAT 1 This part replaces B4J-F473C-01-00. Price: $169.99 |
| 6 |
90111-06180-00 |
BOLT,HEX. SOCKET BUT Price: $2.20 |
| 7 |
1XD-F4742-00-00 |
GROMMET Price: $4.00 |
| 8 |
B4J-F7270-01-00 |
ADJUSTER ASSY This part replaces B4J-F7270-00-00. Price: $66.99 |
| 9 |
B4J-F7260-01-00 |
ADJUSTER ASSY This part replaces B4J-F7260-00-00. Price: $50.99 |
| 10 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 11 |
95817-08012-00 |
BOLT, FLANGE This part replaces 95812-08012-00. Price: $5.49 |
| 12 |
B4J-F4790-01-00 |
SEAT BACK ASSY This part replaces B4J-F4790-00-00. Price: $642.99 |
| 13 |
B4J-F4711-00-00 |
COVER, SINGLE SEAT Price: $288.99 |
| 14 |
B4J-K8420-00-00 |
SEAT ASSY 2 Price: $498.99 |
| 15 |
B4J-F4791-00-00 |
COVER, SEAT BACK Price: $399.99 |
| 16 |
B4J-F473D-02-00 |
FRAME, SEAT 2 This part replaces B4J-F473D-01-00. Price: $162.99 |
| 17 |
90111-06180-00 |
BOLT,HEX. SOCKET BUT Price: $2.20 |
| 18 |
1XD-F4742-00-00 |
GROMMET Price: $4.00 |
| 19 |
95817-08012-00 |
BOLT, FLANGE This part replaces 95812-08012-00. Price: $5.49 |
| 20 |
B4J-F117F-00-00 |
COVER Price: $36.99 |
