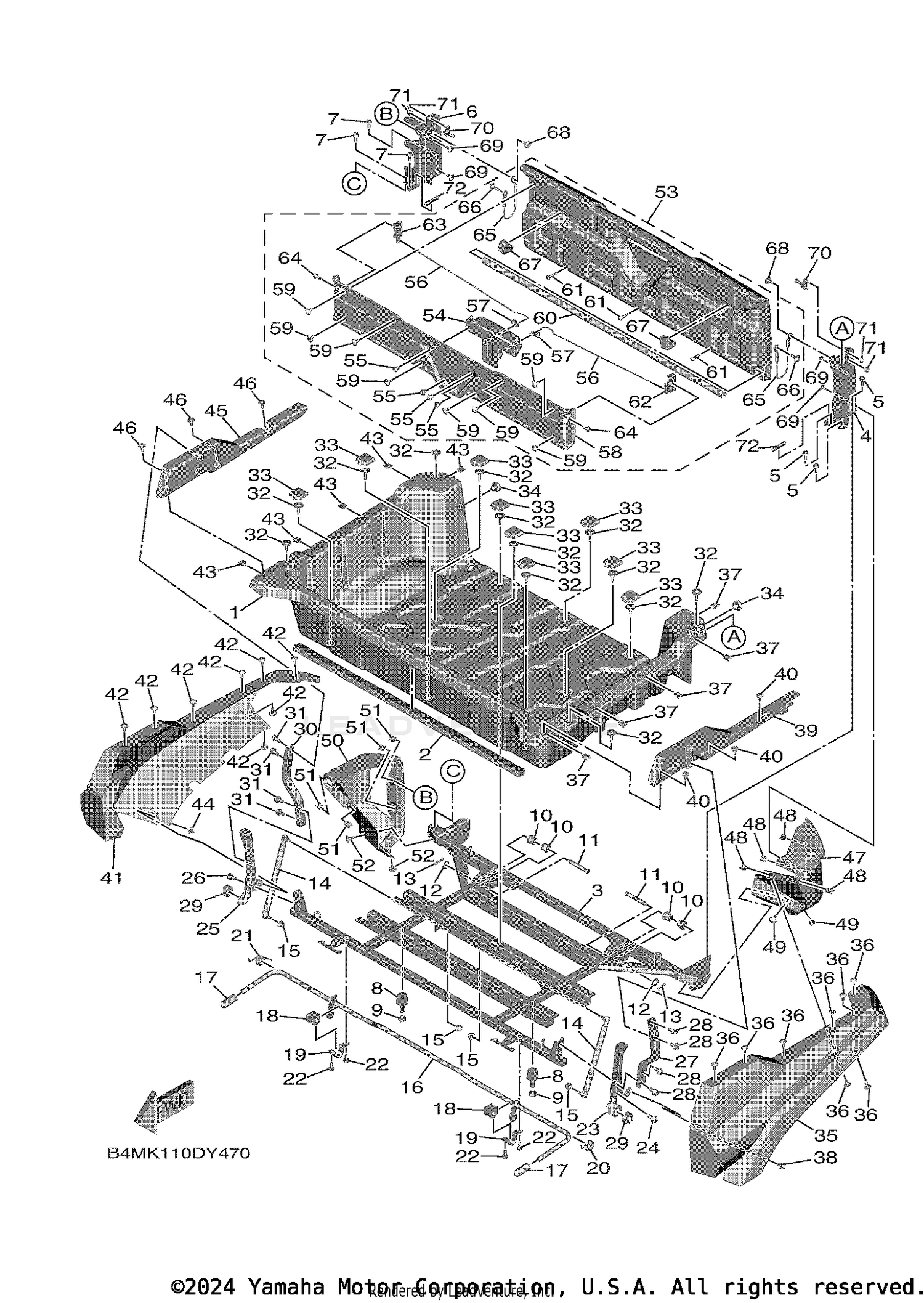

| Ref | Part Number | Description |
|---|
| 1 |
B8K-F1171-00-00 |
BOX Price: $309.99 |
| 2 |
B8K-F172S-00-00 |
INSULATOR 3 Price: $10.49 |
| 3 |
B8K-F845C-10-00 |
BOX, BASE Price: $304.99 |
| 4 |
B8K-F8413-11-00 |
STAY, FRONT GUARD 1 Price: $86.99 |
| 5 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 6 |
B8K-F8414-11-00 |
STAY, FRONT GUARD 2 Price: $86.99 |
| 7 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 8 |
B4M-F8375-01-00 |
HOLDER, DAMPER This part replaces B4M-F8375-00-00. Price: $17.99 |
| 9 |
90170-10206-00 |
NUT Price: $3.30 |
| 10 |
JW6-F2123-00-00 |
BUSH 1 Price: $2.80 |
| 11 |
1XD-F7827-00-00 |
PIN, TAPER Price: $2.65 |
| 12 |
90201-14212-00 |
WASHER, PLATE This part replaces 90201-133E5-00. Price: $9.49 |
| 13 |
90468-16191-00 |
CLIP Price: $9.49 |
| 14 |
B8K-F8415-10-00 |
DAMPER 1 Price: $36.99 |
| 15 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 16 |
B8K-K7180-00-00 |
LATCH ASSY Price: $41.99 |
| 17 |
B8K-K818M-00-00 |
CAP, PROTECTOR END Price: $1.00 |
| 18 |
90480-01819-00 |
GROMMET Price: $2.10 |
| 19 |
B8K-F84AS-00-00 |
BRKT., TRUNCK 1 Price: $3.10 |
| 20 |
B8K-F8489-00-00 |
SPRING Price: $2.00 |
| 21 |
B8K-F848A-00-00 |
SPRING 2 Price: $2.00 |
| 22 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 23 |
B8K-F8476-10-00 |
BRACKET 3 Price: $95.99 |
| 24 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 25 |
B8K-F8486-10-00 |
BRACKET 5 Price: $35.99 |
| 26 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 27 |
B4M-F8476-00-00 |
BRACKET 3 Price: $11.49 |
| 28 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 29 |
90480-25801-00 |
GROMMET Price: $1.10 |
| 30 |
B4M-F8476-00-00 |
BRACKET 3 Price: $11.49 |
| 31 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 32 |
90109-068A5-00 |
BOLT Price: $8.49 |
| 33 |
2MB-F143A-00-00 |
CAP Price: $1.95 |
| 34 |
4N0-27114-00-00 |
STOPPER, MAIN STAND Price: $8.49 |
| 35 |
B4M-K8193-21-00 |
PANEL,RR. FENDER 3 This part replaces B4M-K8193-20-00. Price: $234.99 |
| 36 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 37 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 38 |
90109-06334-00 |
BOLT Price: $2.80 |
| 39 |
B4M-F845S-03-00 |
SUPT, 1 Price: $66.99 |
| 40 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 41 |
B4M-K8194-21-00 |
PANEL,RR. FENDER 4 This part replaces B4M-K8194-20-00. Price: $234.99 |
| 42 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 43 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 44 |
90109-06334-00 |
BOLT Price: $2.80 |
| 45 |
B4M-F845T-03-00 |
SUPT. ,2 Price: $66.99 |
| 46 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 47 |
B4M-H4516-00-00 |
COVER, TAILLIGHT Price: $19.49 |
| 48 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 49 |
90109-06334-00 |
BOLT Price: $2.80 |
| 50 |
B4M-H4716-00-00 |
COVER, TAILLIGHT Price: $19.49 |
| 51 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 52 |
90109-06334-00 |
BOLT Price: $2.80 |
| 53 |
BAN-K810N-10-00 |
REAR STORAGE LID C Price: $289.99 |
| 54 |
BG4-F389F-02-00 |
HANDLE, LATCH Price: $83.99 |
| 55 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 56 |
B8K-F8478-00-00 |
ROD Price: $8.49 |
| 58 |
B8K-F331G-00-00 |
COVER Price: $96.99 |
| 59 |
90111-06181-00 |
BOLT,HEX. SOCKET BUT Price: $1.50 |
| 61 |
90149-06846-00 |
SCREW Price: $1.55 |
| 62 |
BG4-F16A0-00-00 |
LOCK ASSY Price: $36.99 |
| 63 |
BG4-F16B0-00-00 |
LOCK ASSY 2 Price: $36.99 |
| 64 |
95D32-06016-00 |
BLOT, FLANGE DEEP RE Price: $0.50 |
| 65 |
B8K-K7195-00-00 |
HOLDER, CABLE Price: $10.49 |
| 66 |
90109-06171-00 |
BOLT Price: $9.49 |
| 67 |
BG4-F8416-10-00 |
DAMPER 2 Price: $1.90 |
| 68 |
90109-06212-00 |
BOLT Price: $9.49 |
| 69 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 70 |
BG4-F4441-00-00 |
BOLT, STUD Price: $8.49 |
| 71 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
