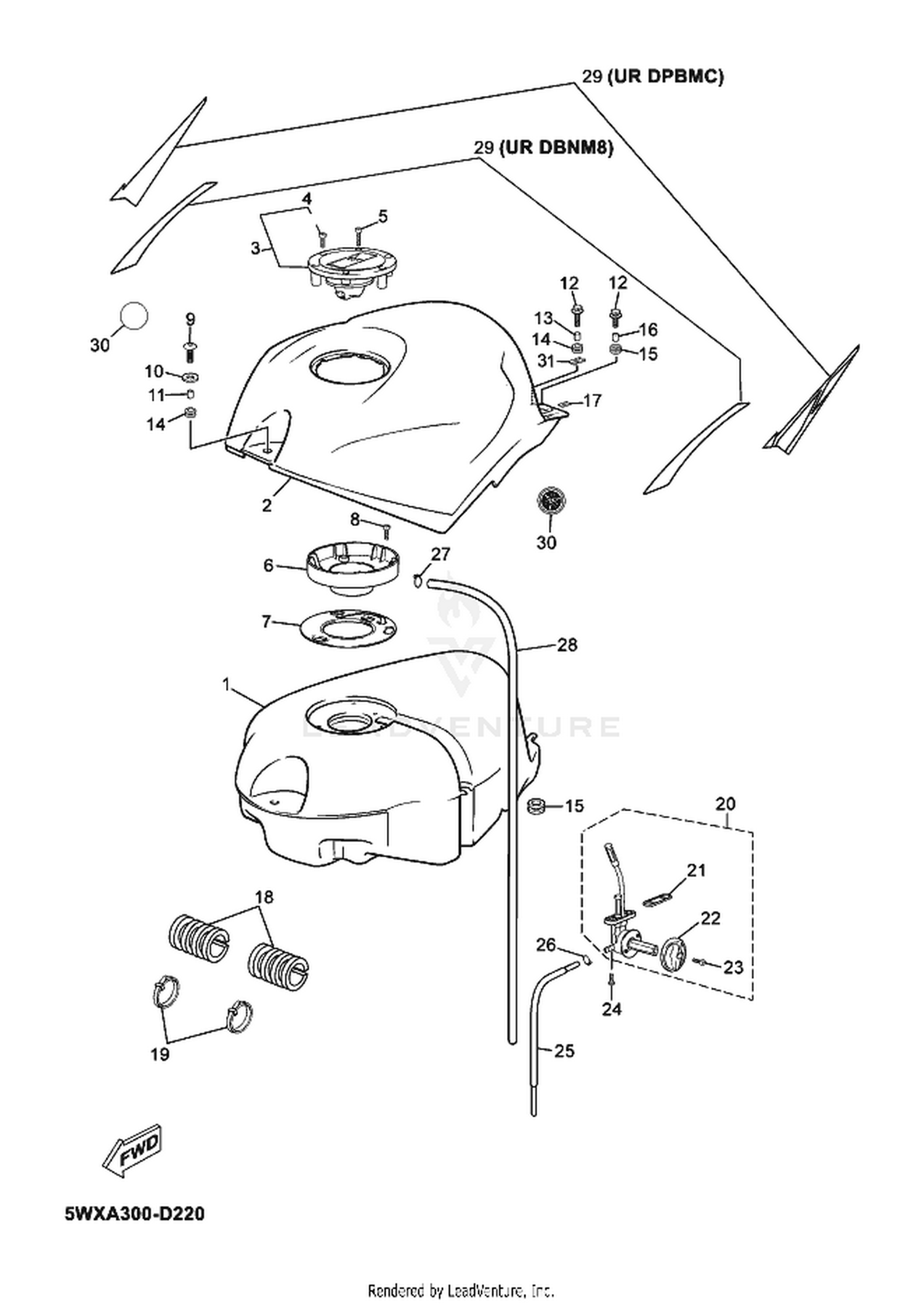

22 FUEL TANK
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5WX-F4110-00 | FUEL TANK COMP. Price: Call Us |
| 3 | 5WX-F4602-00 | CAP ASSY Price: Call Us |
| 5 | 9131M-05014 | BOLT Price: Call Us |
| 6 | 5WX-F414A-00 | COVER, FILLER Price: Call Us |
| 7 | 5WX-F414G-00 | SEAL Price: Call Us |
| 8 | 91380-05030 | BOLT Price: Call Us |
| 9 | 90149-06243 | SCREW Price: Call Us |
| 10 | 90202-10X01 | WASHER, PLATE Price: Call Us |
| 11 | 90387-06299 | COLLAR Price: Call Us |
| 12 | 90119-06X04 | BOLT, WITH WASHER Price: Call Us |
| 13 | 90387-06X24 | COLLAR Price: Call Us |
| 14 | 90480-14X01 | GROMMET Price: Call Us |
| 15 | 90480-13398 | GROMMET Price: Call Us |
| 16 | 90387-067K6 | COLLAR Price: Call Us |
| 17 | 90183-06816 | NUT, SPRING Price: Call Us |
| 18 | 5RW-F4181-00 | DAMPER, LOCATING 1 Price: Call Us |
| 19 | 90464-50X03 | CLAMP Price: Call Us |
| 20 | 5WX-F4500-00 | FUEL COCK ASSY 1 Price: Call Us |
| 24 | 9890L-06012 | SCREW, BIND Price: Call Us |
| 25 | 4BA-F4313-00 | PIPE 3 Price: Call Us |
| 26 | 90467-09006 | CLIP Price: Call Us |
| 27 | 90467-10X01 | CLIP Price: Call Us |
| 28 | 90445-10X00 | HOSE Price: Call Us |
