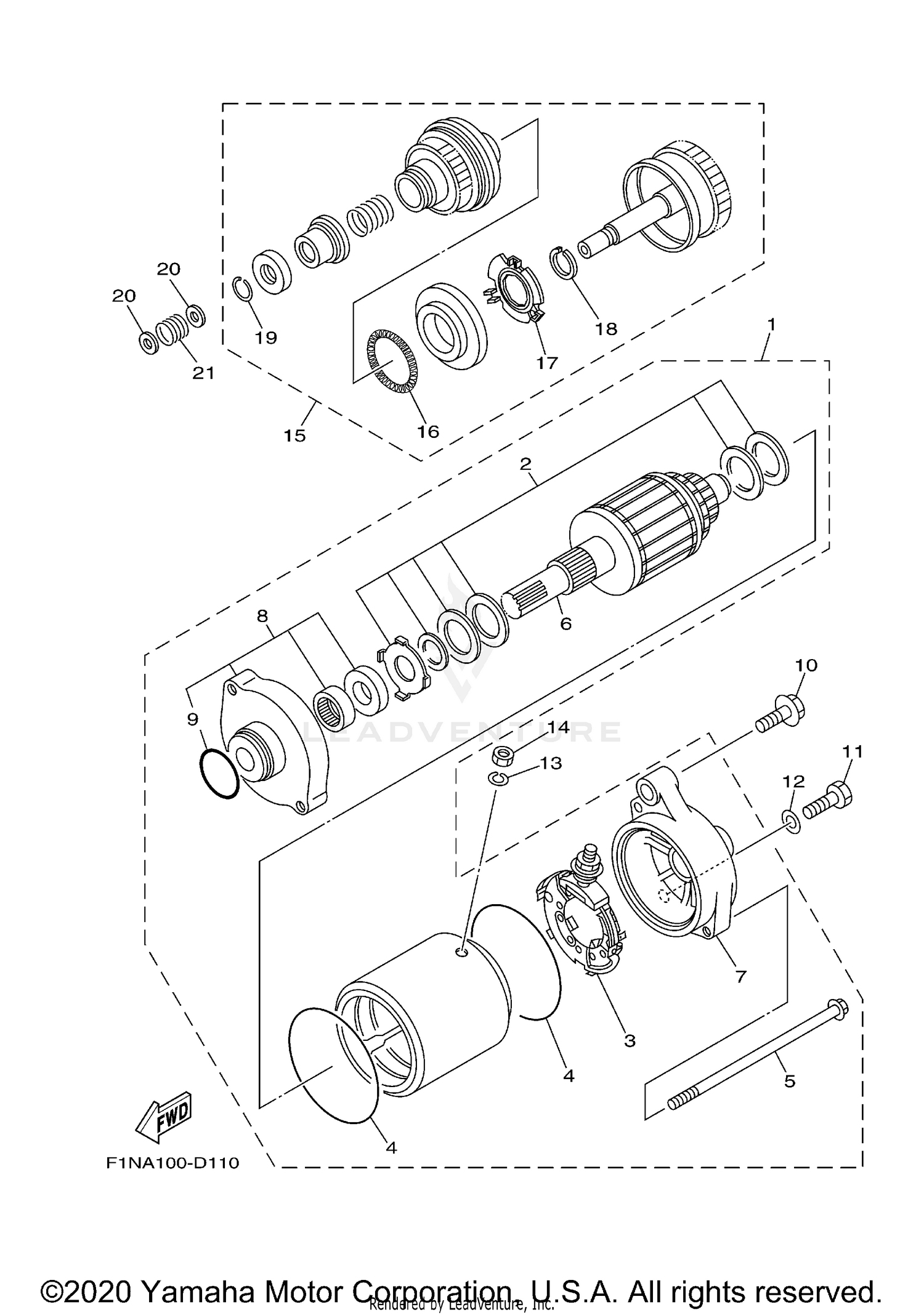

STARTING MOTOR
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6M6-81800-10-00 | STARTING MOTOR ASSY Price: $496.49 |
| 2 | 3AJ-81809-00-00 | WASHER KIT Price: $16.49 |
| 3 | 6M6-81840-10-00 | BRUSH HOLDER ASSY Price: $123.49 |
| 4 | 35C-81844-00-00 | GASKET This part replaces 11H-81844-00-00. Price: $53.99 |
| 5 | 6M6-81826-00-00 | BOLT Price: $11.49 |
| 6 | 6M6-81850-00-00 | ARMATURE ASSY Price: $493.99 |
| 7 | 6M6-81820-00-00 | REAR BRACKET ASSY Price: $172.99 |
| 8 | 6M6-81830-00-00 | FRONT BRACKET ASSY Price: $137.99 |
| 9 | 93210-24235-00 | O-RING This part replaces 26H-81847-00-00. Price: $8.49 |
| 10 | 97513-08540-00 | BOLT, WITH WASHER Price: $3.49 |
| 11 | 97013-08035-00 | BOLT Price: $6.49 |
| 12 | 92990-08600-00 | WASHER, PLATE This part replaces 92903-08600-00. Price: $2.70 |
| 13 | 92995-06100-00 | WASHER, SPRING This part replaces 92990-06100-00. Price: $3.45 |
| 14 | 95380-06700-00 | NUT Price: $9.49 |
| 15 | 6M6-8183E-01-00 | IDLE GEAR COMP. Price: $437.99 |
| 16 | 6M6-81866-00-00 | WEIGHT SPRING Price: $14.49 |
| 17 | 6M6-81865-00-00 | WEIGHT HOLDER Price: $14.49 |
| 18 | 93440-25M08-00 | CIRCLIP Price: $5.49 |
| 19 | 93450-18M06-00 | CIRCLIP Price: $8.49 |
| 20 | 92990-06600-00 | WASHER, PLATE This part replaces 92903-06600-00. Price: $2.85 |
