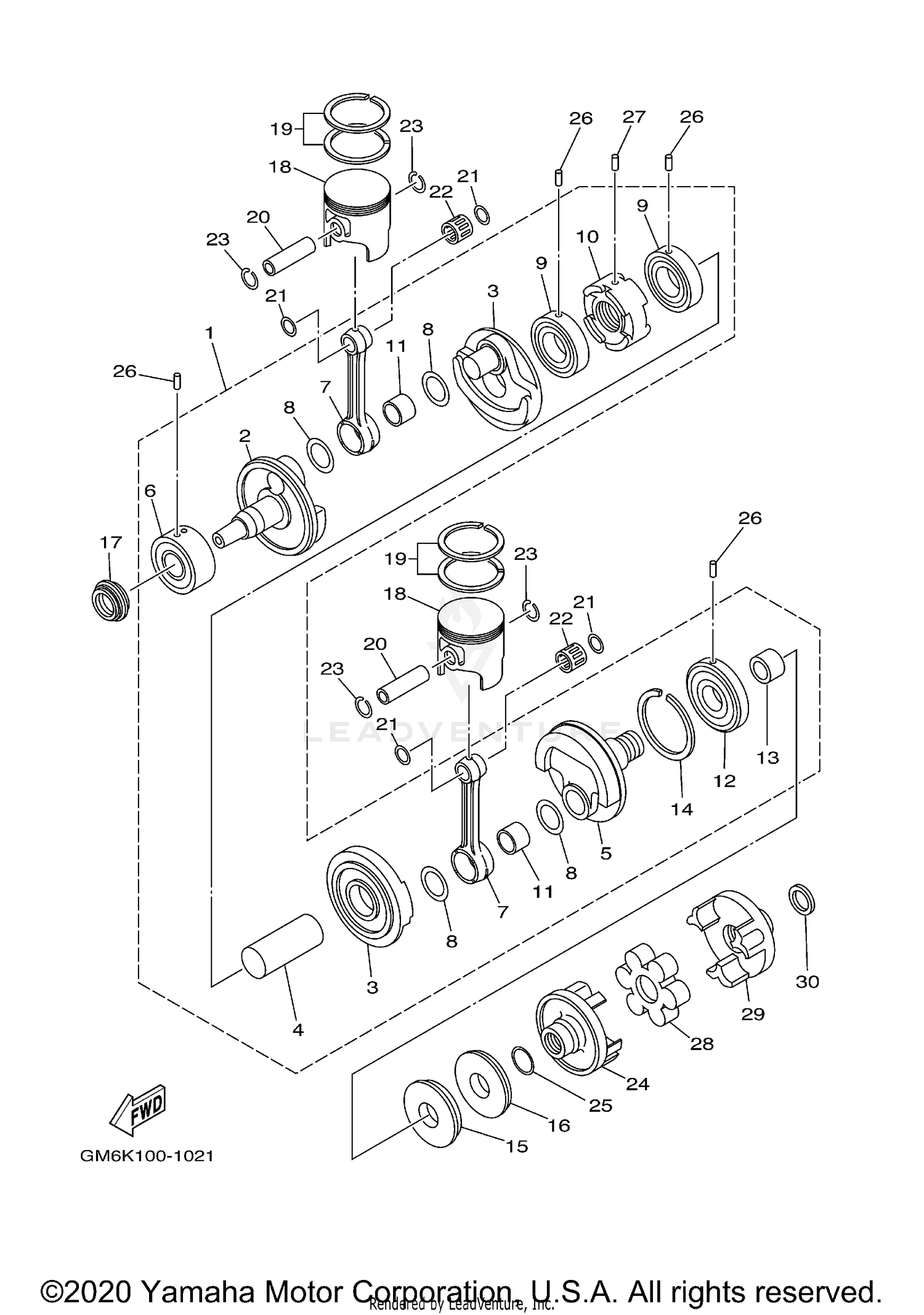

| Ref | Part Number | Description |
|---|
| 1 |
62T-11400-02-00 |
CRANKSHAFT ASSY This part replaces 61X-11400-03-00. Price: $1,426.99 |
| 2 |
6M6-11412-00-00 |
CRANK 1 Price: $181.99 |
| 3 |
6M6-11422-00-00 |
CRANK 2 Price: $193.99 |
| 4 |
6M6-11431-10-00 |
CRANK 3 Price: $149.99 |
| 5 |
6M6-11442-01-00 |
CRANK 4 Price: $141.99 |
| 6 |
93305-30601-00 |
BEARING Price: $209.99 |
| 7 |
64X-11651-01-00 |
ROD, CONNECTING Price: $103.49 |
| 8 |
90209-25325-00 |
WASHER This part replaces 82M-11685-00-00. Price: $21.99 |
| 9 |
93306-20712-00 |
BEARING This part replaces 93306-207U2-00. Price: $86.99 |
| 10 |
65U-11515-00-00 |
SEAL, LABYRINTH 1 Price: $53.99 |
| 11 |
93310-525U0-00 |
BEARING Price: $85.49 |
| 12 |
93306-307U3-00 |
BEARING Price: $73.49 |
| 13 |
62T-45526-00-00 |
COLLAR, DRIVE SHAFT Price: $30.49 |
| 14 |
93440-80023-00 |
CIRCLIP Price: $17.49 |
| 15 |
93102-36M33-00 |
OIL SEAL Price: $20.99 |
| 16 |
93101-36M46-00 |
OIL SEAL Price: $17.49 |
| 17 |
93103-32M01-00 |
OIL SEAL Price: $19.99 |
| 18 |
61X-11631-02-93 |
PISTON (STD) Price: $111.49 |
| 19 |
61X-11603-01-00 |
PISTON RING SET (STD) Price: $56.99 |
| 20 |
61X-11633-00-00 |
PIN, PISTON Price: $24.99 |
| 21 |
90201-20M04-00 |
WASHER, PLATE Price: $9.49 |
| 22 |
93310-320U2-00 |
BEARING Price: $34.99 |
| 23 |
93450-21053-00 |
CIRCLIP Price: $3.85 |
| 24 |
6M6-45813-32-8P |
FLANGE, COUPLING Price: $126.49 |
| 25 |
62T-45127-01-00 |
SEAL This part replaces 62T-45127-00-00. Price: $10.49 |
| 26 |
93603-10049-00 |
PIN, DOWEL Price: $4.05 |
| 27 |
93604-07141-00 |
PIN, DOWEL Price: $2.70 |
| 28 |
61X-4581J-00-00 |
RUBBER SHAFT COUPLING Price: $97.99 |
| 29 |
6M6-45813-22-8P |
FLANGE, COUPLING Price: $128.99 |
