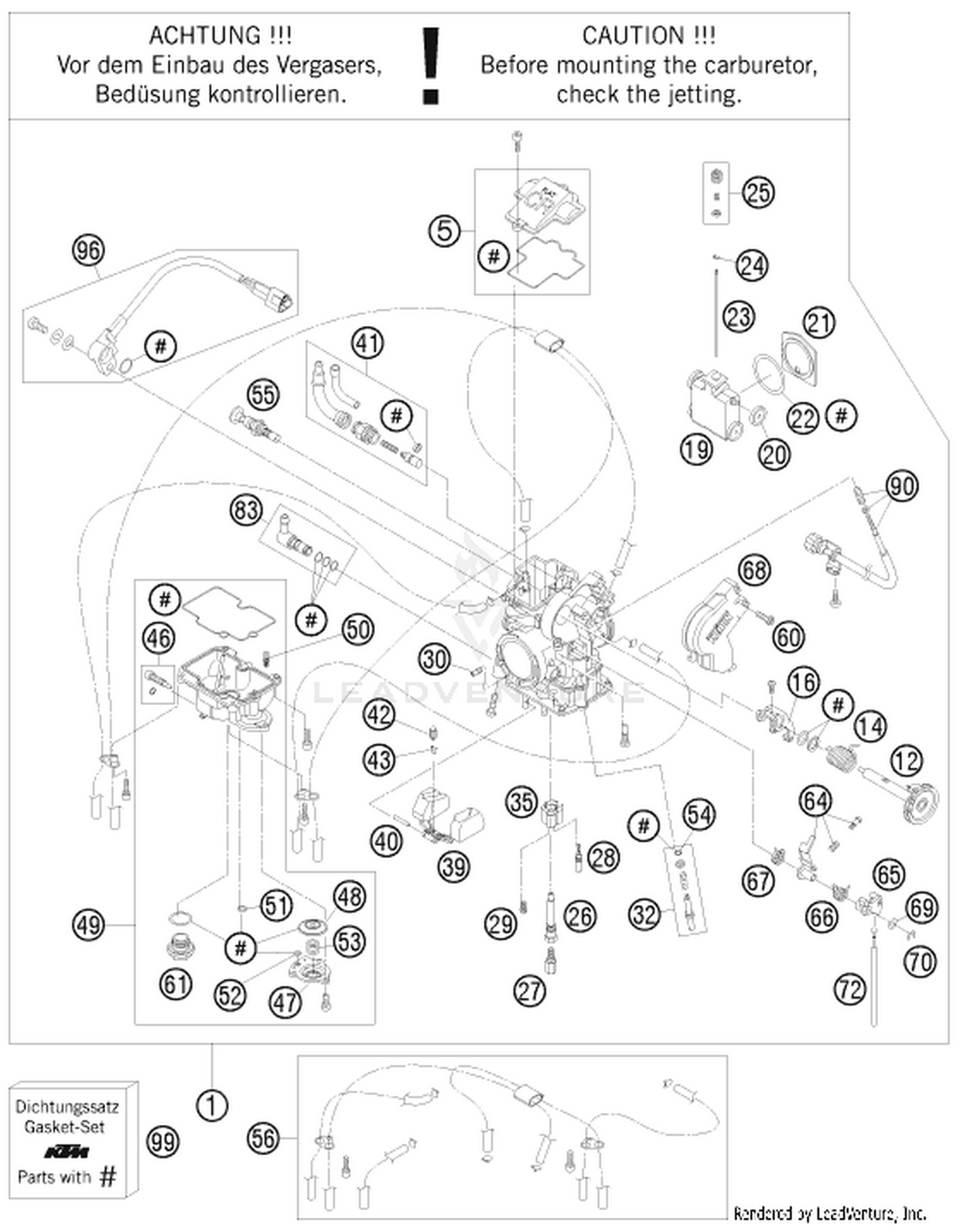

31 CARBURETOR
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 77331001200 | CARBURETOR FCR-MX 4125M ,TPS This part replaces 77331001100. Price: Call Us |
| 5 | 57331027044 | CARBURETOR COVER WITH GASKET Price: Call Us |
| 12 | 57331046100 | THROTTLE SHAFT CPL. 06 Price: Call Us |
| 14 | 57331046050 | COIL SPRING THROTTLE SHAFT Price: Call Us |
| 16 | 76231035051 | LINK ARM THROTTLE VALVE CPL.07 Price: Call Us |
| 19 | 57331035100 | THROTTLE VALVE CPL. FCRMX 2007 Not Available Price: |
| 20 | 59031035050 | BUSHING THROTTLE VALVE Price: Call Us |
| 21 | 57331035153 | GASKET PLATE THROTTLE VALVE 04 Price: Call Us |
| 22 | 59031035052 | GASKET WASHER THROTTLE VALVE Price: Call Us |
| 23 | 59031021000 | JET NEEDLE KEIHIN OBDTM Price: Call Us |
| 23 | 59031034000 | JET NEEDLE KEIHIN OBDTN Price: Call Us |
| 23 | 59031034400 | JET NEEDLE KEIHIN OBDTP Price: Call Us |
| 23 | 59031034500 | JET NEEDLE KEIHIN OBDTQ Price: Call Us |
| 23 | 59031034600 | JET NEEDLE KEIHIN OBDTR Price: Call Us |
| 24 | 59031029000 | BAR CLIP Price: Call Us |
| 25 | 57331032000 | NEEDLE SET SCREW CPL. Price: Call Us |
| 26 | 59031121000 | NEEDLE JET FCR-MX Price: Call Us |
| 27 | 54531623180 | MAIN JET 180 KEIHIN Price: Call Us |
| 27 | 54531623182 | MAIN JET 182 KEIHIN Price: Call Us |
| 27 | 54531623185 | MAIN JET 185 KEIHIN Price: Call Us |
| 27 | 54531623188 | MAIN JET 188 KEIHIN Price: Call Us |
| 27 | 54531623190 | MAIN JET 190 KEIHIN Price: Call Us |
| 27 | 54531623192 | MAIN JET 192 KEIHIN Price: Call Us |
| 27 | 54531623195 | MAIN JET 195 KEIHIN Price: Call Us |
| 28 | 54531607040 | IDLE JET 40 KEIHIN Price: Call Us |
| 28 | 54531607042 | IDLE JET 42 KEIHIN Price: Call Us |
| 28 | 54531607045 | IDLE JET 45 KEIHIN Price: Call Us |
| 29 | 59031051085 | STARTER JET 85 Price: Call Us |
| 30 | 57331107100 | IDLE AIR JET 100 KEIHIN Price: Call Us |
| 32 | 59031017100 | ADJUST SCREW CPL. FCR-MX Price: Call Us |
| 35 | 57331085000 | BUFFER PLATE Price: Call Us |
| 39 | 57331009000 | FLOAT CPL. Price: Call Us |
| 40 | 57331008000 | ARM PIN FLOAT Price: Call Us |
| 41 | 77031075000 | HOT-STARTER VALVE Price: Call Us |
| 42 | 54631220000 | FLOAT NEEDLE Price: Call Us |
| 43 | 54531621000 | CLAMP Price: Call Us |
| 46 | 76231155000 | DRAIN SCREW + O-RING Price: Call Us |
| 47 | 57331060000 | COVER ACCELERATOR PUMP Price: Call Us |
| 48 | 57331057100 | DIAPHRAGM ACCELERATOR PUMP Price: Call Us |
| 49 | 78031011000 | FLOAT CHAMBER CPL. 08 Price: Call Us |
| 50 | 54631085000 | JET POWER JET CLOSED KEIHIN Price: Call Us |
| 50 | 54631085040 | JET POWER JET 40 KEIHIN Price: Call Us |
| 50 | 54631085050 | JET POWER JET 50 KEIHIN Price: Call Us |
| 50 | 54631085060 | JET POWER JET 60 KEIHIN Price: Call Us |
| 50 | 54631085070 | JET POWER JET 70 KEIHIN Price: Call Us |
| 51 | 59031058100 | O-RING Price: Call Us |
| 52 | 59031058000 | U-RING Price: Call Us |
| 53 | 59031059000 | COIL SPRING Price: Call Us |
| 54 | 54831072000 | O-RING ADJUSTING SCREW Price: Call Us |
| 55 | 77031048000 | STARTER VALVE SHORT CPL. Price: Call Us |
| 56 | 57331098000 | BREATH.HOSE FCR-MX KEIHIN CPL. Price: Call Us |
| 60 | 0965050103 | FLAT HEAD SCREW DIN0965-M 5X10 Price: Call Us |
| 61 | 54531699000 | PLUG M 18X1 Price: Call Us |
| 64 | 57331062000 | INTERMEDIATE LEVER CPL. Price: Call Us |
| 65 | 57331056000 | LINK LEVER Price: Call Us |
| 66 | 57331059000 | SPRING LINK LEVER Price: Call Us |
| 67 | 57331159000 | SPRING INTERMEDIATE LEVER Price: Call Us |
| 68 | 57331038200 | CARBURETOR COVER 06 Price: Call Us |
| 69 | 57331087000 | WASHER LINK LEVER Price: Call Us |
| 70 | 57331084000 | E-CLIP Price: Call Us |
| 72 | 57331061000 | ROD ACCELERATOR PUMP Price: Call Us |
| 83 | 59031013044 | HOSE CONNECTOR CPL. Price: Call Us |
| 90 | 57331025000 | STOP SCREW CPL. FCR-MX Price: Call Us |
| 96 | 59031077200 | TPS-SENSOR FCRMX 190MM 2006 Price: Call Us |
