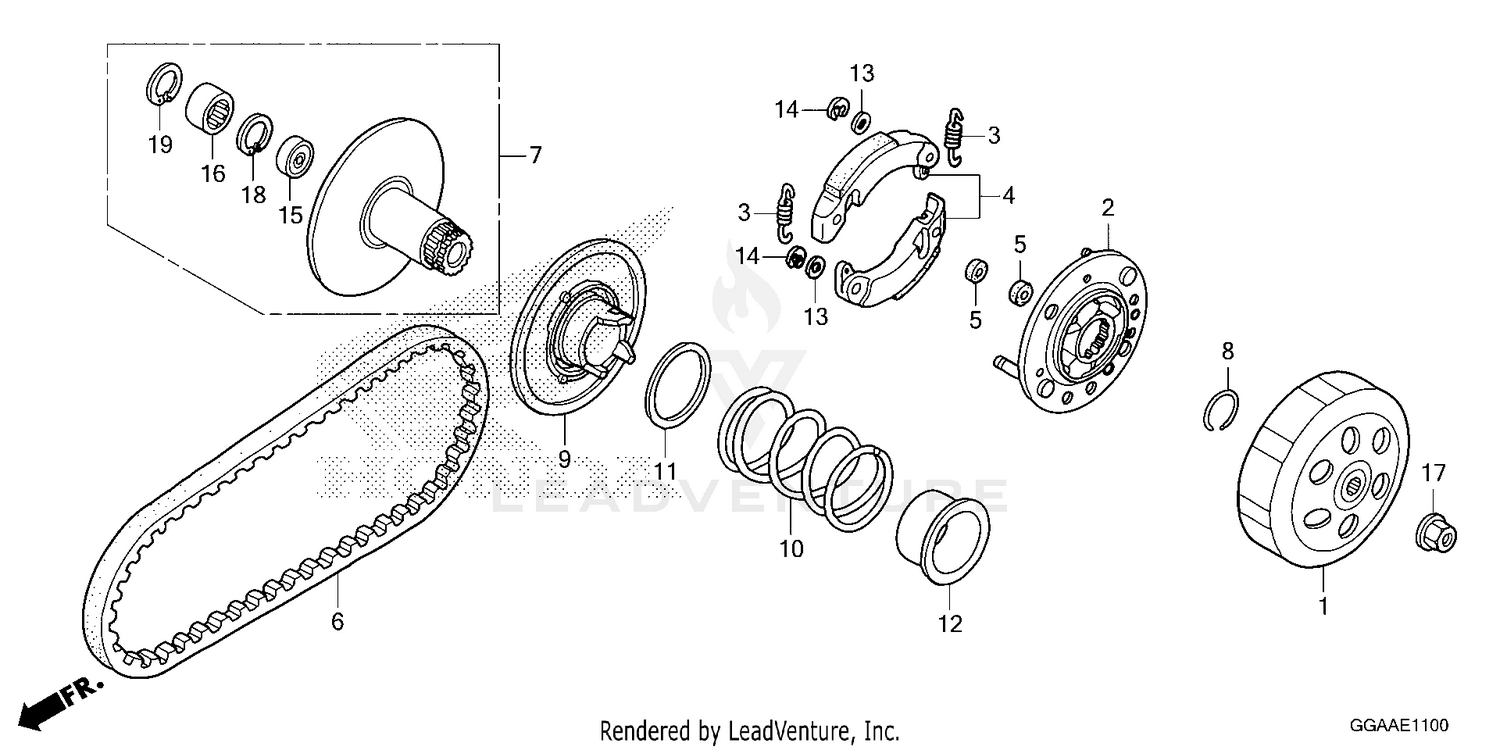

| Ref | Part Number | Description |
|---|
| 1 |
22100-GCH-000 |
CLUTCH OUTER Price: $83.24 |
| 2 |
22350-GBL-J21 |
PLATE, DRIVE Price: $36.87 |
| 3 |
22401-GEE-710 |
SPRING, CLUTCH Price: $3.35 |
| 4 |
22535-GBL-305 |
WEIGHT SET, CLUTCH Price: $61.62 |
| 5 |
22804-148-000 |
RUBBER, CLUTCH DAMPER Price: $3.62 |
| 6 |
23100-GEZ-003 |
BELT, DRIVE Price: $37.87 |
| 7 |
23210-GEE-711 |
FACE, DRIVEN Price: $82.29 |
| 8 |
23215-GBL-J30 |
CLIP (OUTER) (30X2.0) Price: $2.24 |
| 9 |
23220-GEE-711 |
FACE, MOVABLE DRIVEN Price: $54.15 |
| 10 |
23233-GBL-J20 |
SPRING, DRIVEN FACE Price: $13.62 |
| 11 |
23237-GCH-000 |
WASHER, DRIVEN FACE SPRING Price: $4.25 |
| 12 |
23238-GCH-000 |
COLLAR, SPRING Price: $5.44 |
| 13 |
90442-044-000 |
WASHER, THRUST (6MM) Price: $2.45 |
| 14 |
90454-GB2-000 |
CIRCLIP (6MM) Price: $1.82 |
| 15 |
91001-KG8-901 |
BEARING, RADIAL BALL (6901UU) Price: $16.64 |
| 16 |
91103-GCH-003 |
BEARING, NEEDLE (17X25X18WS) (NTN) Price: $8.20 |
| 17 |
94050-10000 |
NUT, FLANGE (10MM) Price: $1.62 |
| 18 |
94520-24000 |
CIRCLIP (INNER) (24MM) Price: $1.27 |
