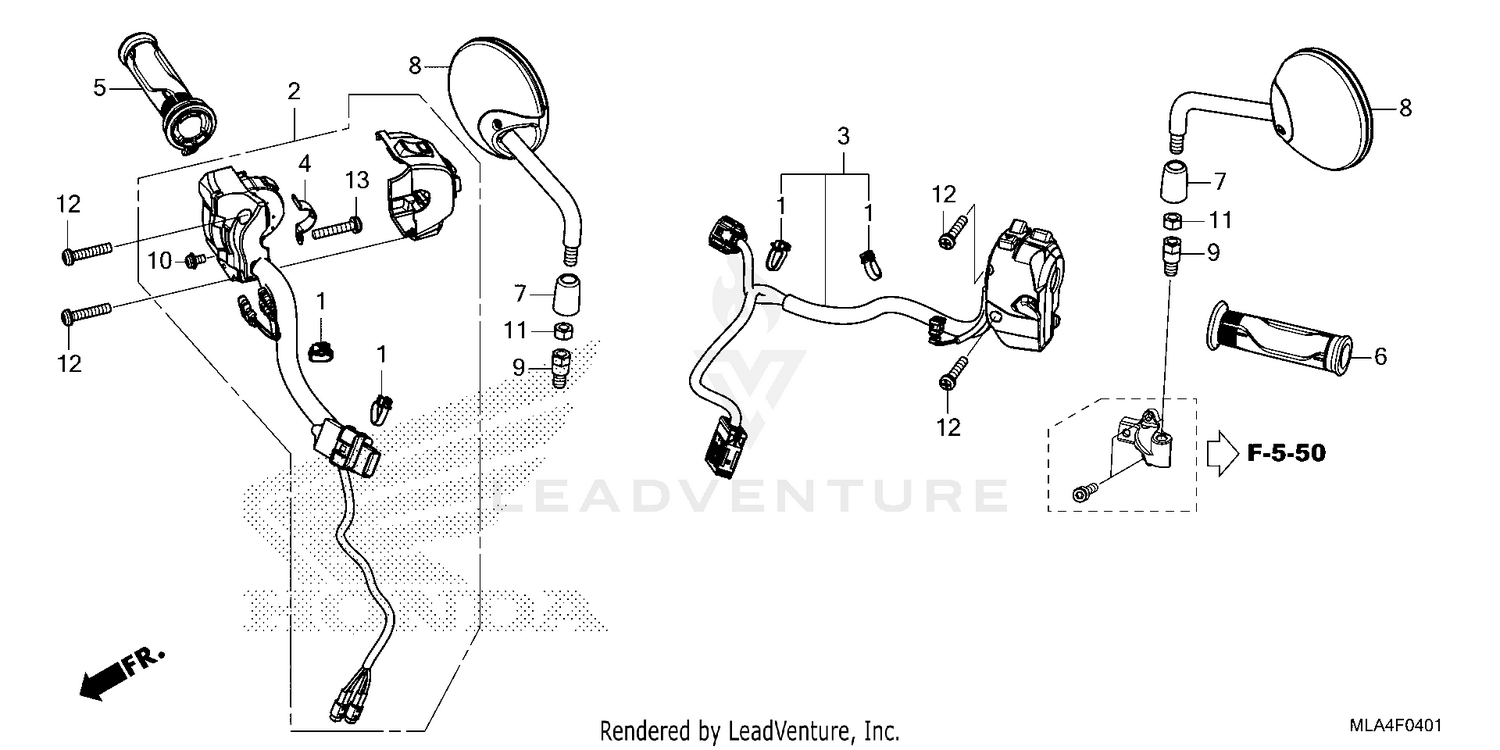

HANDLE SWITCH@MIRROR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32161-GFL-J41 | BAND, WIRE HARNESS Price: $2.11 |
| 2 | 35135-MLA-A71 | SWITCH UNIT Price: $363.58 |
| 3 | 35200-MLA-A52 | SW ASSY. Price: $243.82 |
| 4 | 37971-MKS-E01 | PLATE A, SETTING Price: $5.09 |
| 5 | 53140-MKS-E01 | GRIP ASSY., THROTTLE Price: $40.98 |
| 6 | 53166-MGE-000 | GRIP, L. HANDLE Price: $21.49 |
| 7 | 88119-K87-A00 | CAP, LOCK NUT Price: $2.47 |
| 8 | 88210-MLA-A01ZA | MIRROR *NH105* (MAT BLACK) (R. SIDE) Price: $40.47 |
| 9 | 90101-K20-901 | BOLT, ADAPTER (10MM) Price: $2.73 |
| 10 | 90110-MKS-E20 | SCREW-WASHER (4X8) Price: $1.65 |
| 11 | 90301-K20-901 | NUT, HEX. (10MM) (LEFT HAND THREAD) Price: $0.87 |
| 12 | 90508-MGE-D00 | SCREW-WASHER (5X25) Price: $1.47 |
