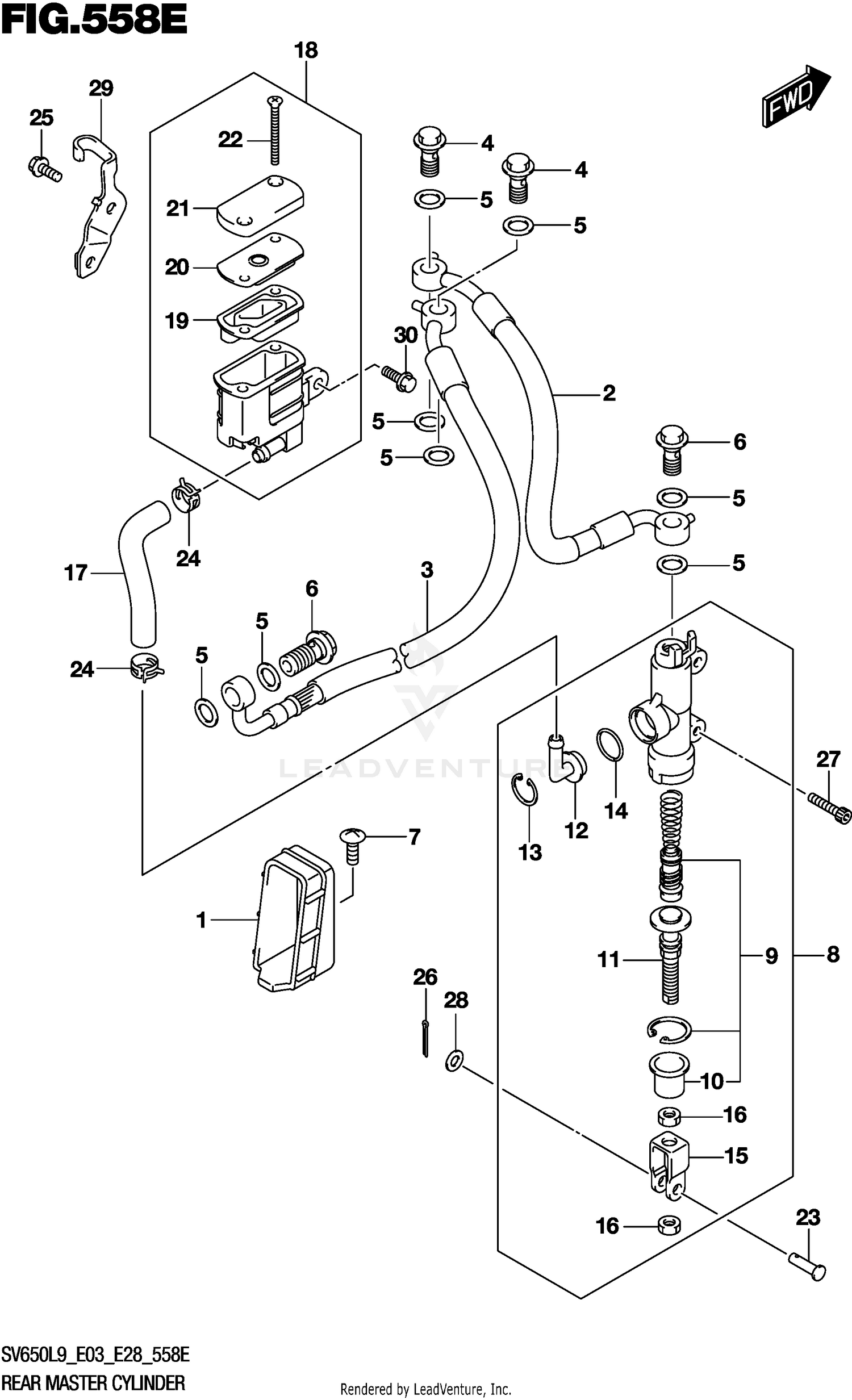

REAR MASTER CYLINDER (SV650XAL9 E28)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69243-44H00 | GUIDE,RR BRAKE HOSE Price: $8.52 |
| 2 | 69480-18K10 | HOSE ASSY, RR MASTER TO UNIT Price: $53.22 |
| 3 | 69450-18K00 | HOSE ASSY, RR UNIT TO CLPR Price: $56.31 |
| 4 | 09360-10062 | UNION This part replaces 09360-10042. Price: $7.84 |
| 5 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 6 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 7 | 02142-0616A | SCREW Price: $1.65 |
| 8 | 69600-44H00 | CYLINDER ASSY,RR MASTER Price: $261.57 |
| 17 | 69731-18K00 | HOSE, REAR RESERVOIR TANK Price: $13.99 |
| 18 | 69740-18K00 | TANK ASSY,RESERVOIR Price: $34.71 |
| 23 | 09200-06068 | PIN (6X18.2) Price: $5.01 |
| 24 | 09401-12404 | CLIP (ID:12) Price: $2.85 |
| 25 | 09103-06525 | BOLT (6X12) Price: $1.74 |
| 26 | 04111-2015A | PIN Price: $1.48 |
| 27 | 07130-0625A | BOLT (6X25) Price: $3.20 |
| 28 | 08322-0106A | WASHER Price: $2.22 |
| 29 | 69750-18K10 | BRACKET,RR RESERVOIR TANK Price: $14.73 |
