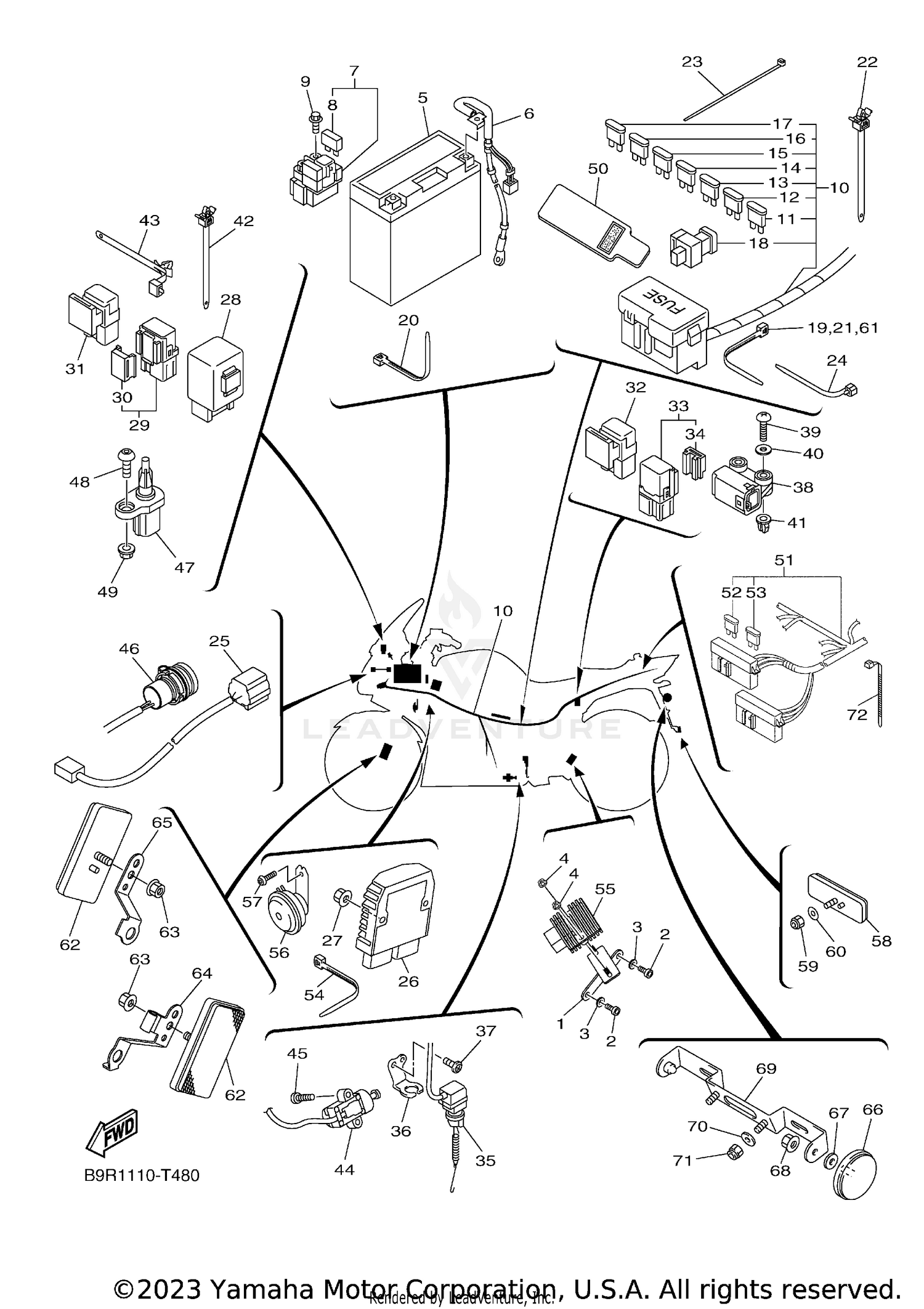

| Ref | Part Number | Description |
|---|
| 1 |
5P5-21287-00-00 |
BRACKET, REGULATOR Price: $60.99 |
| 2 |
91317-08016-00 |
BOLT, HEX. SOCKET HEAD Price: $9.49 |
| 3 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 4 |
95707-06500-00 |
NUT, FLANGE Price: $1.00 |
| 5 |
GT1-4B400-00-00 |
GT14B4 GS BATTERY - Price: $159.99 |
| 6 |
1MC-82116-00-00 |
WIRE, MINUS LEAD Price: $41.99 |
| 7 |
3D7-81940-00-00 |
STARTER RELAY ASSY (RC19-076A) Price: $106.99 |
| 8 |
1AE-82151-00-00 |
FUSE (30A-BL) Price: $8.49 |
| 9 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 10 |
B9R-82590-00-00 |
WIRE HARNESS ASSY Price: $1,412.99 |
| 11 |
67F-82151-30-00 |
FUSE (3A) This part replaces 5JJ-82151-50-00. Price: $5.49 |
| 12 |
5JJ-82151-00-00 |
FUSE (7.5A-BL) Price: $7.49 |
| 13 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 14 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 15 |
5JJ-82151-20-00 |
FUSE (20A-BL) Price: $8.49 |
| 16 |
5JJ-82151-60-00 |
FUSE (30A-BL) Price: $8.49 |
| 17 |
1MC-82151-00-00 |
FUSE (1A-BL) Price: $3.75 |
| 18 |
5JW-82151-10-00 |
FUSE (50A) Price: $17.99 |
| 19 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 20 |
90465-10098-00 |
CLAMP Price: $2.70 |
| 21 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 22 |
90464-10112-00 |
CLAMP This part replaces 90464-12036-00. Price: $9.49 |
| 23 |
5Y9-12491-00-00 |
CLAMP 1 Price: $7.49 |
| 25 |
1MC-82509-00-00 |
WIRE, SUB LEAD Price: $17.49 |
| 26 |
1D7-81960-01-00 |
RECTIFIER & REGULATOR ASSY Price: $349.99 |
| 27 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 28 |
5VK-81950-33-00 |
RELAY ASSY This part replaces 5VK-81950-31-00. Price: $61.99 |
| 29 |
1ST-81950-00-00 |
RELAY ASSY (1ST-00) Price: $19.99 |
| 30 |
5JJ-81952-00-00 |
HOLDER, RELAY Price: $10.99 |
| 31 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 32 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 33 |
1TP-81950-00-00 |
RELAY ASSY (1TP-00) Price: $16.49 |
| 34 |
5EA-81952-00-00 |
HOLDER, RELAY Price: $8.49 |
| 35 |
1MC-82530-02-00 |
STOP SWITCH ASSY This part replaces 1MC-82530-01-00. Price: $66.99 |
| 36 |
1MC-2144G-00-00 |
STAY, STOP SWITCH Price: $5.99 |
| 37 |
98902-05008-00 |
SCREW, BIND Price: $1.85 |
| 38 |
5PS-82576-02-00 |
SENSOR, LEAN ANGLE This part replaces 5PS-82576-01-00. Price: $96.99 |
| 39 |
97702-40025-00 |
SCREW, TAPPING Price: $0.30 |
| 40 |
90201-04030-00 |
WASHER, PLATE Price: $2.40 |
| 41 |
4B4-84334-00-00 |
NUT, ADJUSTING Price: $5.49 |
| 42 |
90464-10112-00 |
CLAMP This part replaces 90464-12036-00. Price: $9.49 |
| 43 |
90464-20213-00 |
CLAMP Price: $5.49 |
| 44 |
1MC-82566-02-00 |
SWITCH, SIDE STAND This part replaces 1MC-82566-01-00. Price: $106.99 |
| 45 |
98507-05016-00 |
SCREW, PAN HEAD This part replaces 90157-05008-00. Price: $1.80 |
| 46 |
3P6-8254B-00-00 |
TERMINAL COMP. Price: $83.99 |
| 47 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 48 |
92012-05014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 49 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 50 |
2D1-82589-02-00 |
PROTECTER, WIRE HARNESS Price: $11.99 |
| 51 |
2BC-82507-00-00 |
WIRE, LEAD Price: $181.99 |
| 52 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 53 |
5JJ-82151-60-00 |
FUSE (30A-BL) Price: $8.49 |
| 54 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 55 |
5P5-81970-00-00 |
RECTIFIER ASSY Price: $427.99 |
| 56 |
B88-83371-00-00 |
HORN Price: $47.99 |
| 57 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 58 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 59 |
95617-05100-00 |
NUT, U This part replaces 95602-05100-00. Price: $10.49 |
| 60 |
90201-05043-00 |
WASHER, PLATE Price: $8.49 |
| 61 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 62 |
11H-85110-01-00 |
REFLECTOR ASSY Price: $30.99 |
| 63 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 64 |
3P6-85112-10-00 |
BRACKET, REFLECTOR 1 Price: $52.99 |
| 65 |
3P6-85122-01-00 |
BRACKET, REFLECTOR 2 Price: $15.49 |
| 66 |
449-85131-02-00 |
REFLECTOR, REAR 1 Price: $33.99 |
| 67 |
90201-061A5-00 |
WASHER, PLATE This part replaces 90201-05036-00. Price: $8.49 |
| 68 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 69 |
B88-84751-00-00 |
BRACKET, LICENSE Price: $20.99 |
| 70 |
90201-06380-00 |
WASHER PLAIN This part replaces 90201-06076-00. Price: $0.65 |
| 71 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
