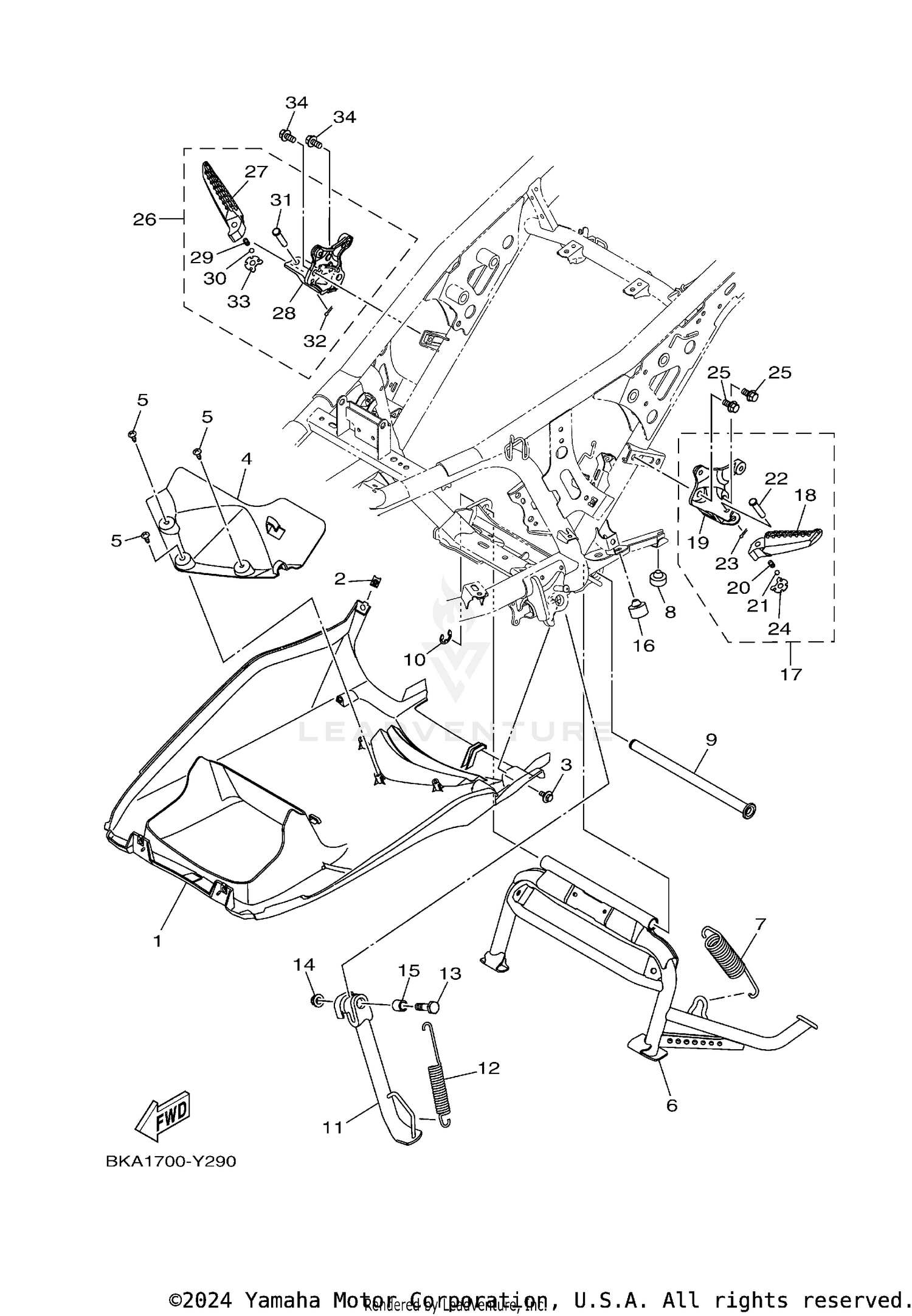

| Ref | Part Number | Description |
|---|
| 1 |
BKA-F8385-00-00 |
COVER, LOWER Price: $36.99 |
| 2 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 3 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 4 |
B74-F838N-00-00 |
DUCT 1 Price: $6.49 |
| 5 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 6 |
B74-F7111-00-00 |
STAND, MAIN Price: $90.99 |
| 7 |
90506-40807-00 |
SPRING, TENSION Price: $4.90 |
| 8 |
45P-F7114-00-00 |
STOPPER, MAIN STAND Price: $1.15 |
| 9 |
B74-F7261-10-00 |
SHAFT Price: $14.49 |
| 10 |
93430-12831-00 |
CIRCLIP Price: $0.70 |
| 11 |
B74-F7311-00-00 |
STAND, SIDE Price: $20.99 |
| 12 |
90506-32814-00 |
SPRING, TENSION Price: $3.05 |
| 13 |
90101-10830-00 |
BOLT Price: $1.70 |
| 14 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 15 |
90387-10849-00 |
COLLAR Price: $3.50 |
| 16 |
4YY-F7114-00-00 |
STOPPER, MAIN STAND Price: $6.49 |
| 17 |
B74-F7430-00-00 |
REAR FOOTREST ASSY 1 Price: $41.99 |
| 18 |
2DP-F7431-10-00 |
FOOTREST, REAR 1 This part replaces 2DP-F7431-01-00. Price: $10.49 |
| 19 |
B74-F741L-00-00 |
BRACKET 4 Price: $26.99 |
| 20 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 21 |
93501-04011-00 |
BALL This part replaces 93501-04830-00. Price: $9.49 |
| 22 |
91701-08038-00 |
PIN This part replaces 91702-08038-00. Price: $4.45 |
| 23 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 24 |
B74-F7437-00-00 |
WASHER, SPECIAL Price: $2.35 |
| 25 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 26 |
B74-F7440-00-00 |
REAR FOOTREST ASSY 2 Price: $41.99 |
| 27 |
2DP-F7441-10-00 |
FOOTREST, REAR 2 This part replaces 2DP-F7441-01-00. Price: $10.49 |
| 28 |
B74-F742L-00-00 |
BRACKET 5 Price: $27.99 |
| 29 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 30 |
93501-04011-00 |
BALL This part replaces 93501-04830-00. Price: $9.49 |
| 31 |
91701-08038-00 |
PIN This part replaces 91702-08038-00. Price: $4.45 |
| 32 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 33 |
B74-F7437-00-00 |
WASHER, SPECIAL Price: $2.35 |
