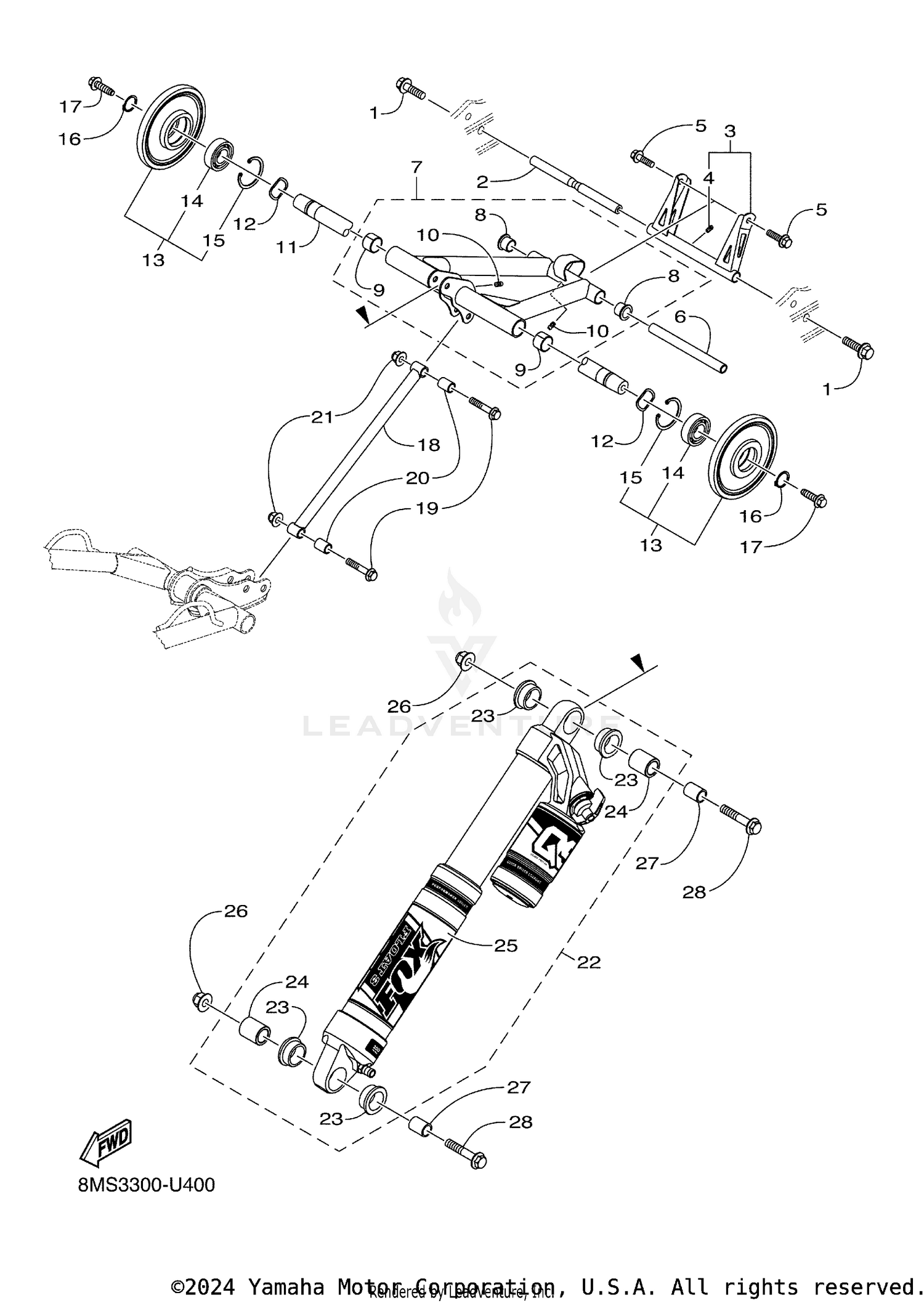

| Ref | Part Number | Description |
|---|
| 1 |
8JP-RA186-00-00 |
BOLT, FLANGE M8X1.25X25 Price: $0.65 |
| 2 |
8JR-G7488-00-00 |
SHAFT 6 Price: $70.99 |
| 3 |
8JR-G7417-10-00 |
BRACKET 3 Price: $104.99 |
| 4 |
8JP-RAL01-00-00 |
NIPPLE, GREASE 1 Price: $2.85 |
| 5 |
8JP-RA198-10-00 |
BOLT, FLANGE M10X1.25X30 Price: $3.35 |
| 6 |
8JR-G7487-10-00 |
SHAFT 5 Price: $52.99 |
| 7 |
8JR-G7332-30-00 |
ARM, PIVOT 2 Price: $176.99 |
| 8 |
8JP-RA812-00-00 |
BUSH, 0.751 Price: $4.85 |
| 9 |
8JP-RA815-00-00 |
BUSH, 6 Price: $20.99 |
| 10 |
8JP-RAL01-00-00 |
NIPPLE, GREASE 1 Price: $2.85 |
| 11 |
8JR-G7475-30-00 |
SHAFT 2 Price: $64.99 |
| 12 |
8JP-RA463-00-00 |
WASHER, WAVE Price: $4.65 |
| 13 |
8JR-G7312-00-00 |
WHEEL, SUSPENSION 2 Price: $91.99 |
| 14 |
8JP-RAG08-00-00 |
BEARING, 3 Price: $18.49 |
| 15 |
8JP-RAH10-00-00 |
CIRCLIP, 4 Price: $2.55 |
| 16 |
8JP-RAH11-00-00 |
CIRCLIP, 5 Price: $1.75 |
| 17 |
8JP-RA1A0-00-00 |
BOLT, FLANGE M10X1.25X40 Price: $1.70 |
| 18 |
8MT-G7494-00-00 |
ROD, RELAY Price: $60.99 |
| 19 |
8JP-RA1A2-00-00 |
BOLT, FLANGE Price: $2.65 |
| 20 |
8JP-RA724-10-00 |
COLLAR, 12 Price: $4.50 |
| 21 |
8JP-RA360-10-00 |
NUT, FLANGE LOCKING Price: $1.25 |
| 22 |
8MT-G7480-00-00 |
SHOCK ABSORBER Price: $589.99 |
| 23 |
8JP-RA817-00-00 |
BUSH, 8 Price: $22.99 |
| 24 |
8JP-RA732-00-00 |
COLLAR, 15 Price: $46.99 |
| 25 |
8MT-F151F-00-00 |
LABEL 3 Price: $50.99 |
| 26 |
8JP-RA360-10-00 |
NUT, FLANGE LOCKING Price: $1.25 |
| 27 |
8JP-RA724-10-00 |
COLLAR, 12 Price: $4.50 |
