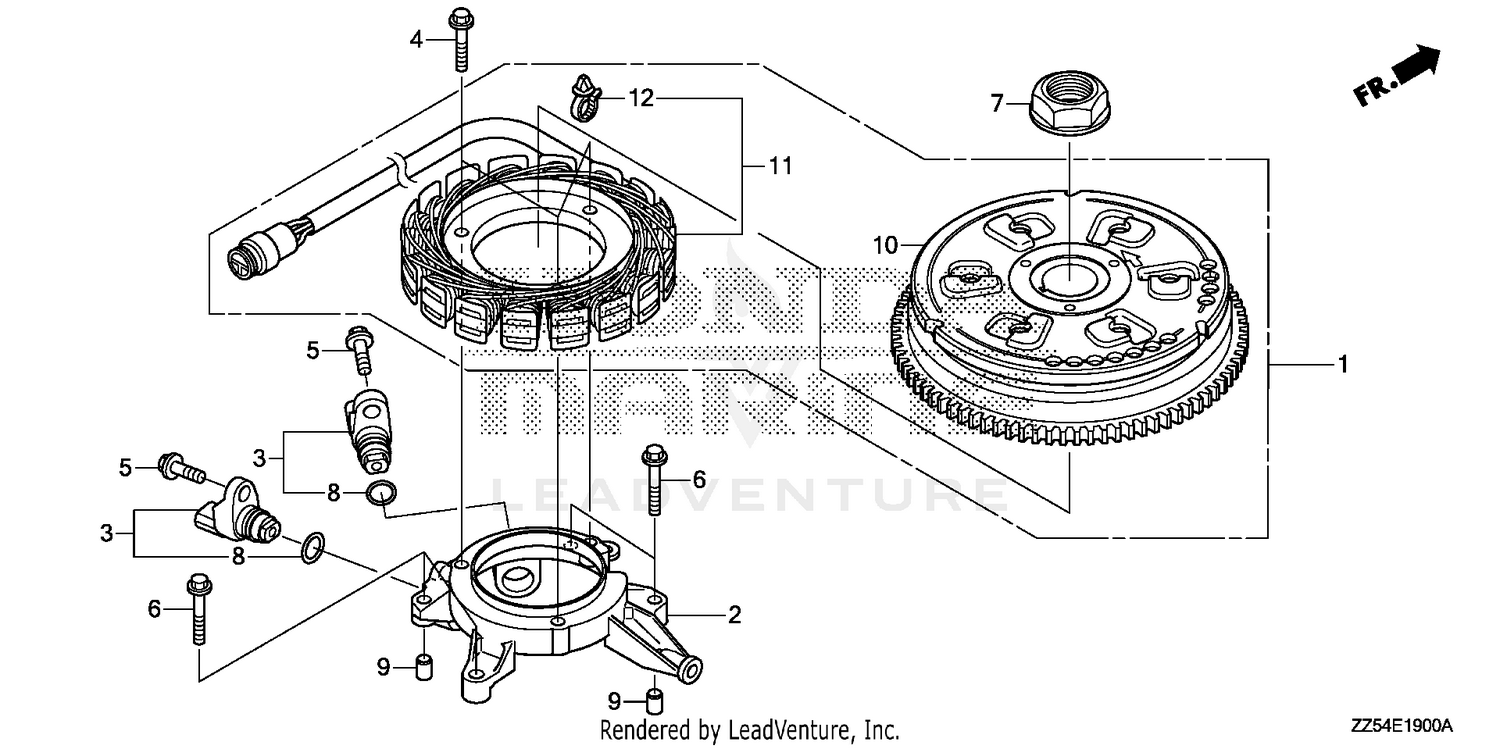

ALTERNATOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31630-ZZ5-003ZA | ALTERNATOR ASSY. *TBLACK* (BLACK) Price: $1,168.14 |
| 2 | 31636-ZZ5-000 | BRACKET, ALTERNATOR Price: $109.12 |
| 3 | 35700-ZZ5-003 | SENSOR ASSY., CRANK Price: $66.02 |
| 4 | 90014-ZZ5-M01 | BOLT, FLANGE (6X25) Price: $2.56 |
| 5 | 90017-ZZ5-M01 | BOLT, FLANGE (6X16) Price: $1.70 |
| 6 | 90002-ZZ5-M01 | BOLT, FLANGE (6X30) Price: $2.00 |
| 7 | 90201-ZZ5-000 | NUT, SPECIAL (24MM) Price: $11.26 |
| 8 | 91333-PNA-003 | O-RING (15X1.9) Price: $4.14 |
| 9 | 94301-08100 | SEE PART DETAILS - PRI; PIN A, DOWEL (8X10) Price: $2.82 |
| 10 | 31631-ZZ5-003ZA | ROTOR *TBLACK* (BLACK) Price: $298.88 |
| 11 | 31632-ZZ5-003 | STATOR Price: $406.35 |
