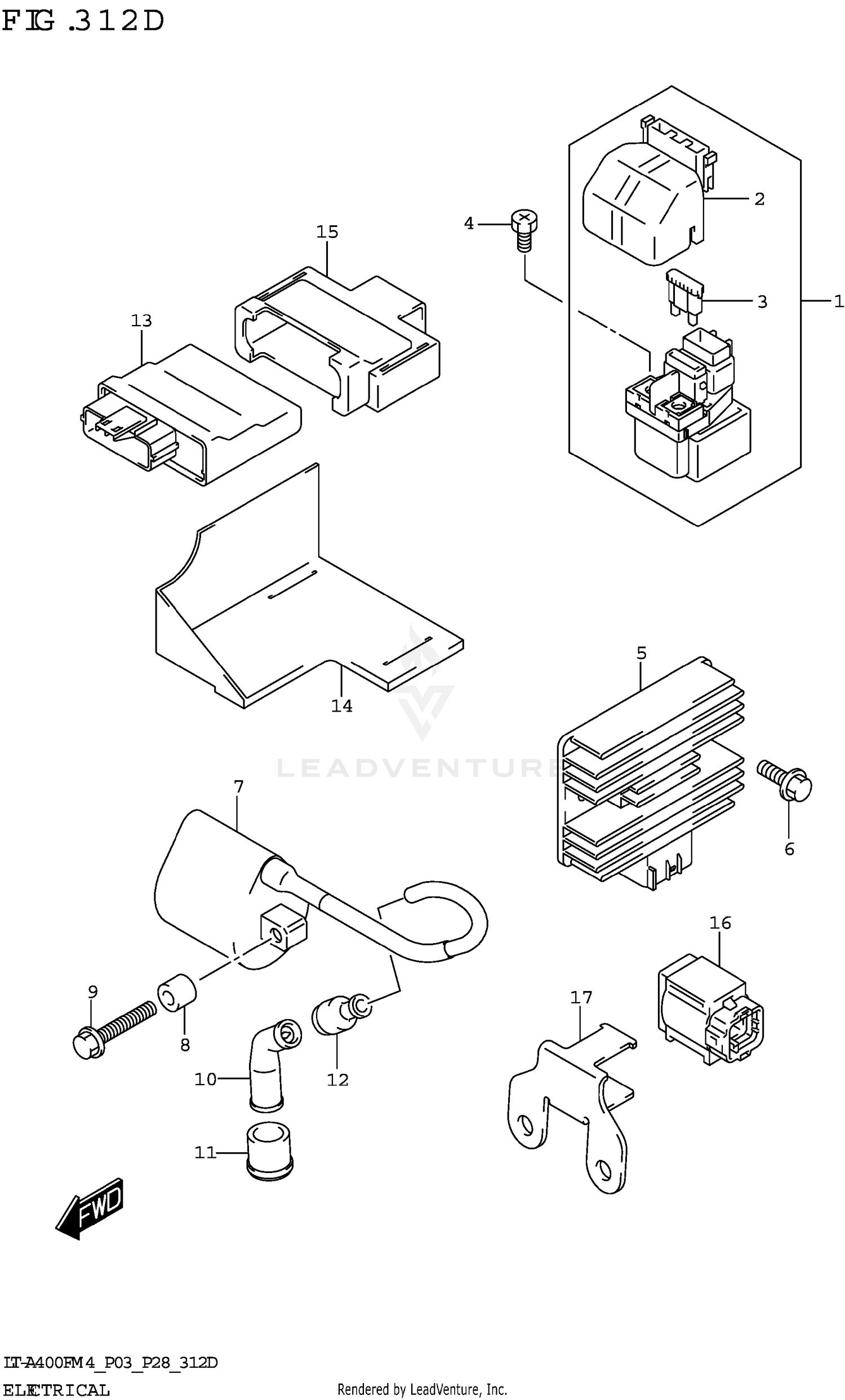

ELECTRICAL
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-38G10 | RELAY ASSY,STARTING MOTOR Price: $120.21 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 32800-42F10 | RECTIFIER ASSY Price: $294.89 |
| 6 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 7 | 33410-26G01 | COIL ASSY,IGNITION Price: $129.31 |
| 8 | 09180-06095 | SPACER (6X12X10) Price: $4.14 |
| 9 | 01547-0630B | BOLT Price: $3.28 |
| 10 | 33510-43010 | CAP,SPARK PLUG Price: $30.87 |
| 11 | 33541-44D00 | SEAL,SPARK PLUG Price: $6.55 |
| 12 | 33542-38B00 | SEAL, HIGH TENSION Price: $5.36 |
| 13 | 32920-27HD1 | CONTROL UNIT,FI Price: $558.46 |
| 14 | 32942-27HA0 | PROTECTOR, FI CONTROL UNIT Price: Call Us |
| 15 | 32981-27H00 | HOLDER, FI CONTROL UNIT Price: Call Us |
| 16 | 33960-06G10 | SENSOR ASSY, FUEL CUT Price: $111.08 |
