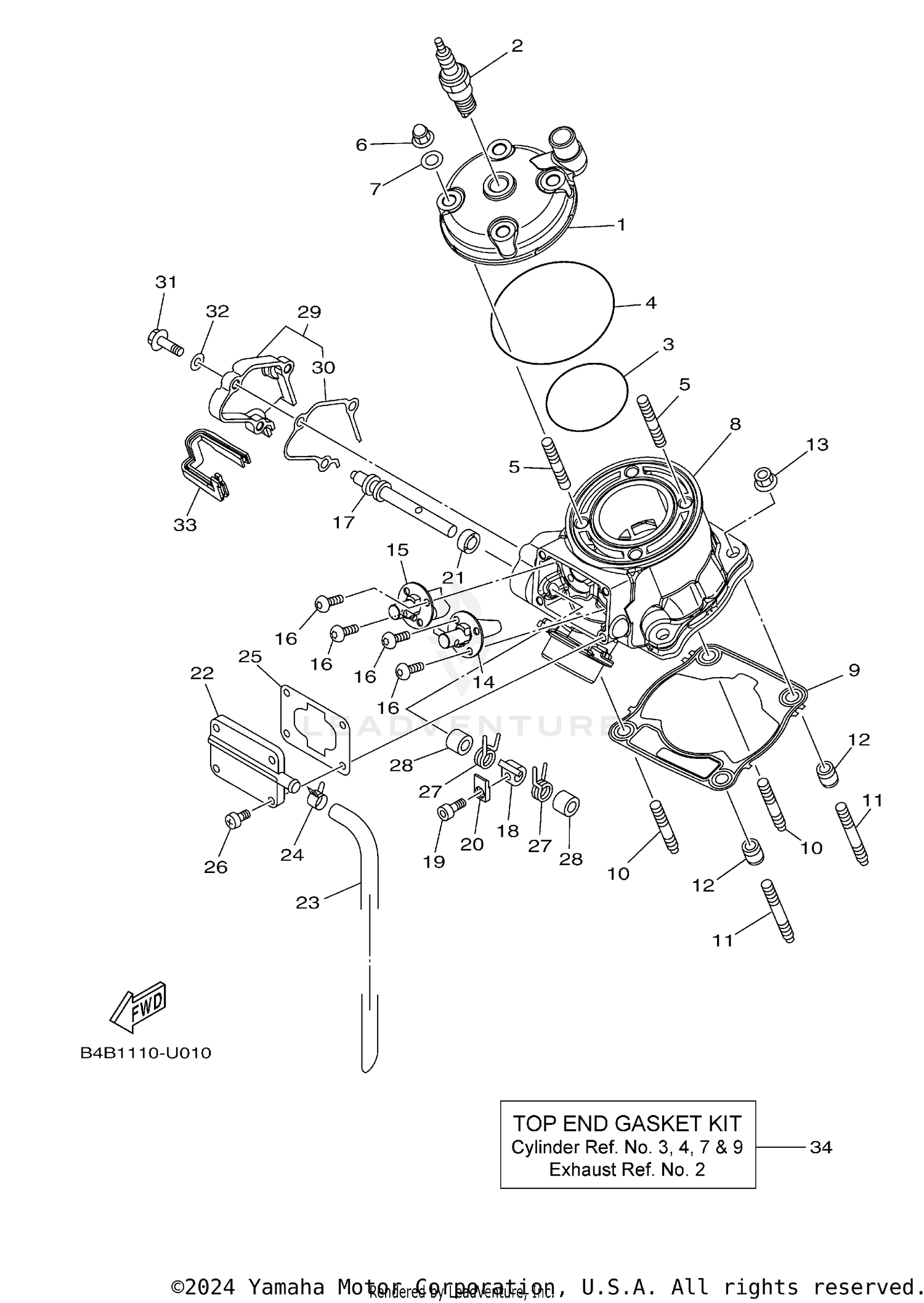

| Ref | Part Number | Description |
|---|
| 1 |
B4B-11111-00-00 |
HEAD, CYLINDER 1 Price: $291.99 |
| 2 |
BR1-0EG00-00-00 |
BR10EG NGK SPLUG 4 This part replaces 94702-00368-00. Price: $7.99 |
| 5 |
90116-08027-00 |
BOLT, STUD Price: $4.10 |
| 6 |
90176-08005-00 |
NUT, CROWN Price: $2.40 |
| 8 |
B4B-11311-00-00 |
CYLINDER 1 Price: $811.99 |
| 10 |
90116-08031-00 |
BOLT, STUD Price: $10.49 |
| 11 |
90116-08028-00 |
BOLT, STUD Price: $9.49 |
| 12 |
99590-10114-00 |
PIN, DOWEL Price: $5.55 |
| 13 |
90179-08019-00 |
NUT Price: $8.49 |
| 14 |
B4B-1131D-00-00 |
VALVE ASSY Price: $354.99 |
| 15 |
B4B-1132D-00-00 |
VALVE ASSY 2 Price: $272.99 |
| 16 |
90149-05001-00 |
SCREW Price: $8.49 |
| 17 |
5HD-1131V-00-00 |
SHAFT 1 Price: $91.99 |
| 18 |
4SS-11832-00-00 |
LEVER, LINK Price: $84.99 |
| 19 |
91317-04010-00 |
BOLT This part replaces 91312-04010-00. Price: $9.49 |
| 20 |
5UN-11395-00-00 |
HOLDER Price: $56.99 |
| 21 |
93104-08040-00 |
OIL SEAL Price: $16.49 |
| 22 |
4SS-1131M-01-00 |
COVER Price: $86.99 |
| 23 |
4JY-11166-00-00 |
PIPE, BREATHER 1 Price: $22.99 |
| 24 |
90467-14117-00 |
CLIP(MG5) This part replaces 90467-13062-00. Price: $9.49 |
| 25 |
1C3-11354-00-00 |
GASKET Price: $5.99 |
| 26 |
98902-05016-00 |
SCREW, BIND Price: $1.85 |
| 27 |
90508-16134-00 |
SPRING, TORSION Price: $6.49 |
| 28 |
90387-08785-00 |
COLLAR Price: $9.49 |
| 29 |
B4B-11991-00-00 |
HOUSING 1 Price: $79.99 |
| 30 |
B4B-11993-00-00 |
GASKET Price: $6.49 |
| 31 |
97027-05020-00 |
BOLT This part replaces 97002-05020-00. Price: $3.55 |
| 32 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 33 |
BR8-11995-00-00 |
SEAL, HOUSING Price: $16.49 |
