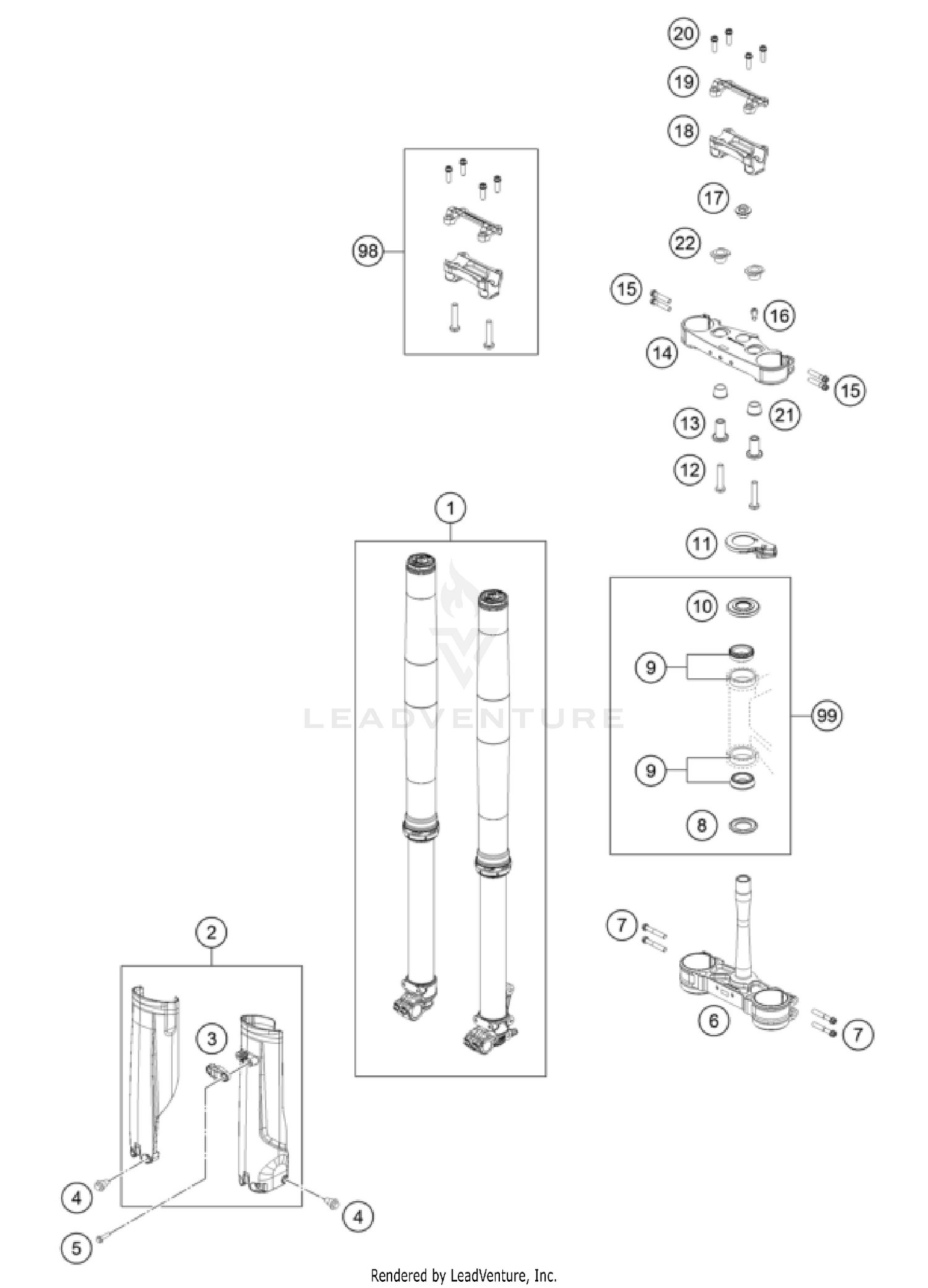

FRONT FORK, TRIPLE CLAMP
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A390C169X402000 | Fork HQV FE 450/501 MY24 Price: $2,295.00 |
| 2 | A46001094000HAA | Fork protection kit TE/FE 2024 Price: $55.09 |
| 4 | 59001092050 | SPECIAL SCREW M6X12,5 WS=8 Price: $2.99 |
| 5 | 0017060206 | SCREW F. PLASTIC K60X20AL SW6 Price: $3.99 |
| 6 | A46001132022C1 | Bottom triple clamp, cmpl. X=22mm Price: $459.68 |
| 7 | 0025080506 | HH collar screw M8x50 TX40 Price: $3.62 |
| 8 | 77701084000 | O-RING SUPPORT W. SEALING LIP Price: $22.76 |
| 9 | 54201081100 | TAPERED ROLLER BEARING CPL. 06 Price: $60.05 |
| 10 | A46001086000 | Steering head seal Price: $26.39 |
| 11 | A49002065000 | Steering lock Price: $49.38 |
| 12 | 0035100509S | AH-COLLAR SCREW M10X50 ISA45 Price: $8.35 |
| 13 | A46001038010 | Rigid handlebar clamp bushing Price: $6.70 |
| 15 | 0025080406 | HH COLLAR SCREW M8X40 TX40 Price: $4.83 |
| 16 | 0015080256S | HH COLLAR SCREW M8X25 WS=10 Price: $3.62 |
| 17 | A46009082000 | Collar screw M20x1.5 SW17 Al Price: $3.99 |
| 18 | A48001139041 | Handlebar mount D28 mm-H41 mm Price: $115.49 |
| 19 | 79001038000 | HANDLEBAR CLAMP 28MM Price: $81.61 |
| 20 | 0025080256 | HH collar screw M8x25 Price: $2.41 |
| 21 | 83001040000 | RUBBER BUSH Price: $6.15 |
| 22 | A46001035001 | Rubber bushing Price: $1.99 |
