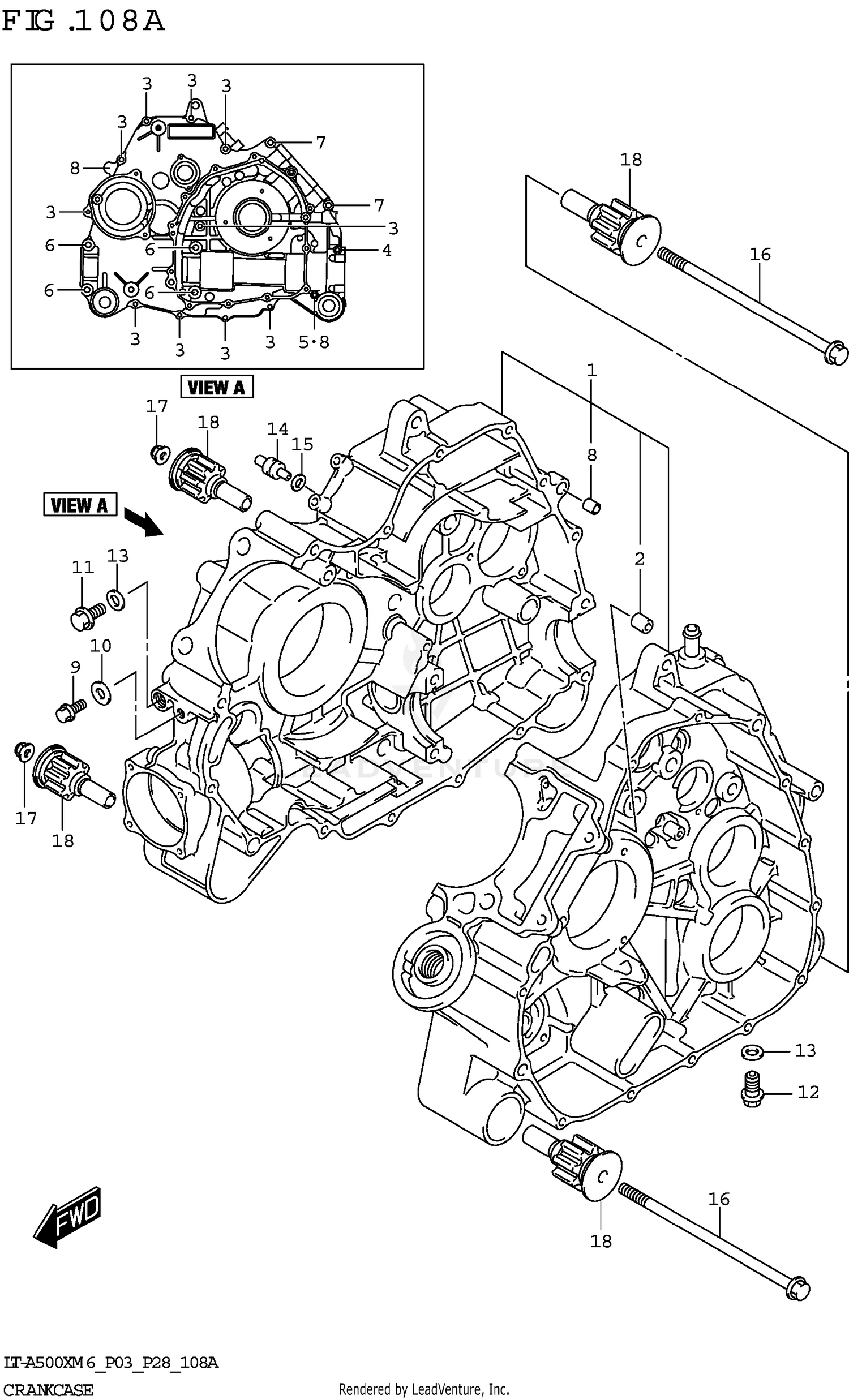

CRANKCASE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11301-11871 | CRANKCASE SET Price: $1,774.28 |
| 2 | 09206-10016 | PIN (8.2X10X13) Price: $9.93 |
| 3 | 01547-0650A | BOLT Price: $2.83 |
| 5 | 01547-0690A | BOLT Price: $2.85 |
| 8 | 04211-11169 | PIN Price: $2.15 |
| 9 | 01550-0812A | BOLT Price: $2.79 |
| 10 | 09168-08016 | GASKET (8.2X14X1) This part replaces 09168-08008. Price: $1.99 |
| 11 | 09247-12006 | PLUG (12X10) Price: $3.28 |
| 14 | 09493-20014 | JET,T/M OIL GALLERY Price: $17.72 |
| 15 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 16 | 09103-10118 | BOLT (L:195) Price: $13.46 |
| 17 | 09159-10115 | NUT (M10) Price: $4.33 |
