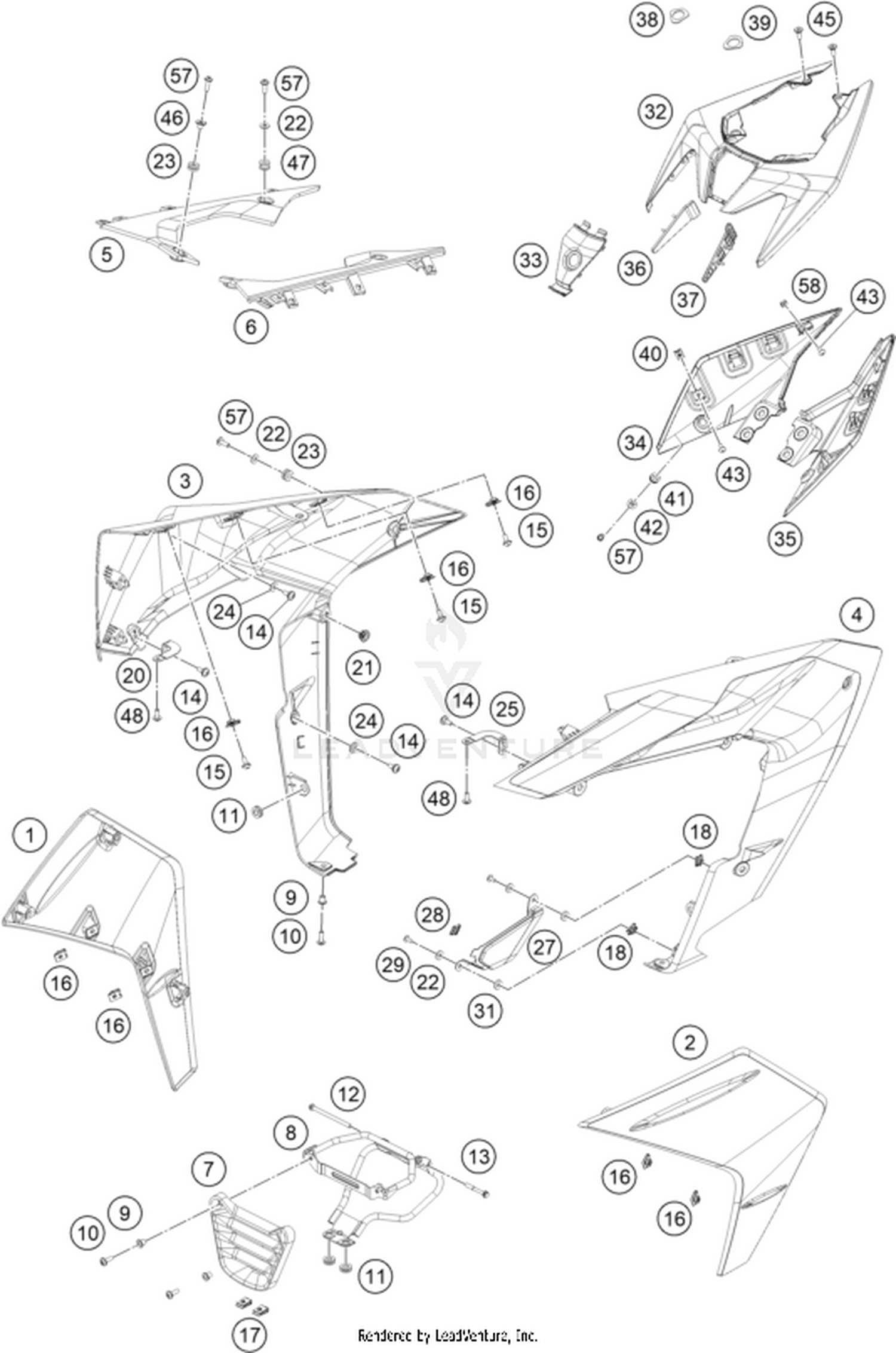

| Ref | Part Number | Description |
|---|
| 1 |
94508051020EB |
OUTER FAIRING RH JY181349 EB O Price: Call Us |
| 2 |
94508050010EB |
OUTER FAIRING LH JY181348 EB O Price: Call Us |
| 5 |
94508027010 |
Side fairing, inner, top, righ Price: Call Us |
| 6 |
94508026010 |
Side fairing, inner, top, left Price: Call Us |
| 7 |
94508020000 |
BELLY PAN MIDDLE Price: Call Us |
| 8 |
94508043010 |
BRACKET ASSY BELLY PAN MIDDLE Price: Call Us |
| 9 |
93808027000 |
SLEEVE Price: Call Us |
| 10 |
90508006003 |
AH SCREW M6X1X20 Price: Call Us |
| 11 |
93808026100 |
GROMMET BELLY PAN Price: Call Us |
| 12 |
J900000609000 |
BOLT-FLANGED-SMALL Price: Call Us |
| 13 |
J900000604502 |
BOLT-FLANGED-SMALL Price: Call Us |
| 14 |
J031050161 |
Panhead screw with shoulder Price: Call Us |
| 15 |
J900000601200 |
Oval head screw M6x12 Price: Call Us |
| 17 |
J910000600600 |
CLIP NUT M6 Price: Call Us |
| 18 |
90108050001 |
CLIP NUT M5 Price: Call Us |
| 20 |
94508048000 |
Bracket, side fairing, right Price: Call Us |
| 21 |
93011068010 |
Rubber grommet ignition lock c Price: Call Us |
| 23 |
93014017000 |
Rubber bushing Price: Call Us |
| 24 |
J125100009 |
Washer M10 Price: Call Us |
| 25 |
94508047000 |
Bracket, side fairing, left Price: Call Us |
| 27 |
94508041050 |
COVER CATALYST Price: Call Us |
| 28 |
27005211011 |
Absorbing element silicone IN Price: Call Us |
| 29 |
J900000501403 |
Roundhead screw M5x14 Price: Call Us |
| 31 |
90505090050 |
WASHER ASBESTOS Price: Call Us |
| 33 |
94508018050 |
Seat lock, cover Price: Call Us |
| 36 |
94508018040 |
Frame cover right Price: Call Us |
| 37 |
94508018030 |
Frame cover left Price: Call Us |
| 38 |
94508018070 |
FOAM RH Price: Call Us |
| 39 |
94508018060 |
FOAM LH Price: Call Us |
| 40 |
90108050001 |
CLIP NUT M5 Price: Call Us |
| 41 |
95835016000 |
Rubber grommet Price: Call Us |
| 42 |
J800000600700 |
COLLAR FAIRING - K10 Price: Call Us |
| 43 |
J031050123 |
Lens head screw M5X12 Price: Call Us |
| 45 |
J900000601403 |
BOLT SOCKET STEP M6X1 Price: Call Us |
| 46 |
93014018100 |
Collar head lamp holder MTG Price: Call Us |
| 47 |
J650001701300 |
GROMMET Price: Call Us |
| 48 |
93006039000 |
Flat-head screw M6 Price: Call Us |
| 57 |
J900000602004 |
Set screw w.hexagon socket M6x Price: Call Us |
