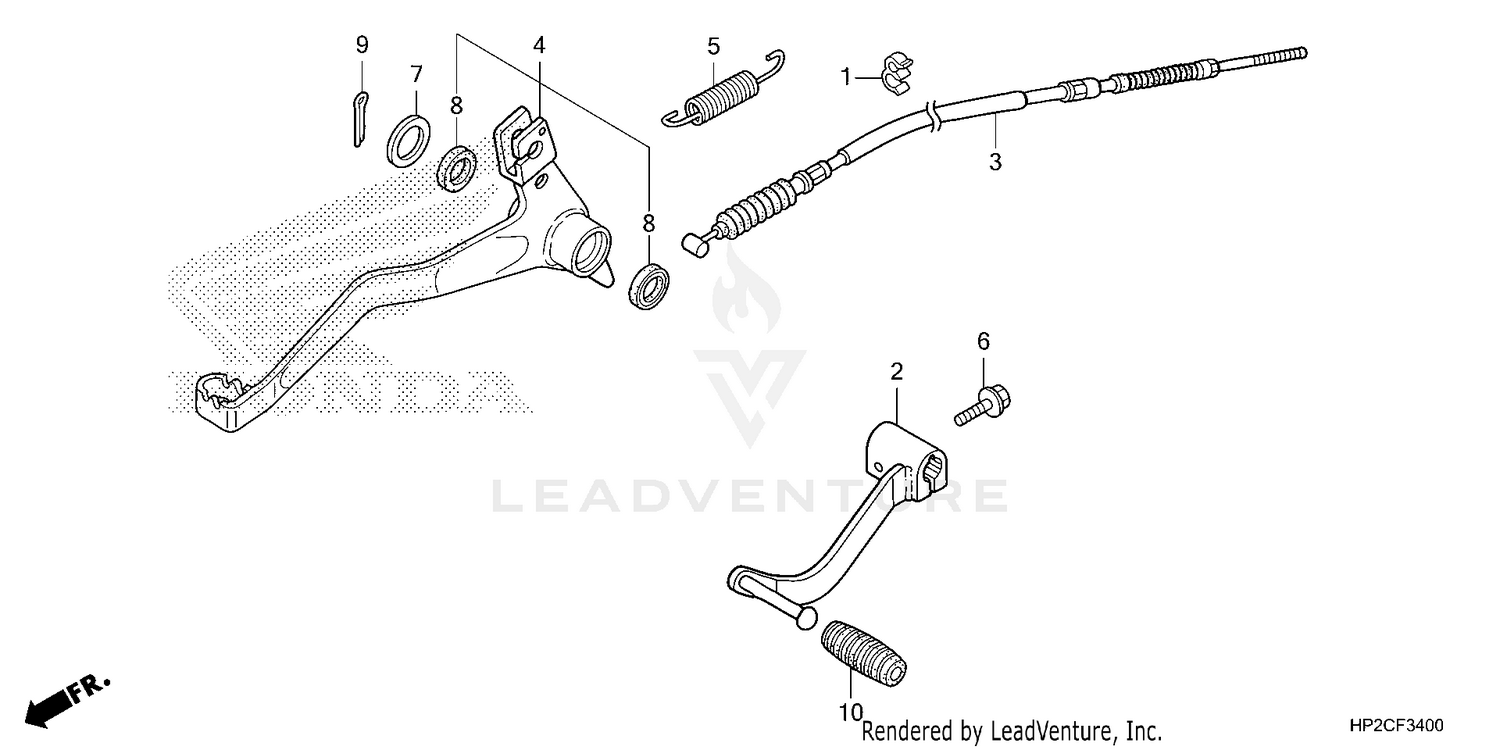

PEDAL
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11152-KS4-003 | CLAMP, PIPE Price: $8.95 |
| 2 | 24700-HP2-305 | PEDAL, GEARSHIFT (COO) This part replaces 24700-HP2-670. Price: $47.60 |
| 3 | 43470-HP2-671 | CABLE, FOOT BRAKE Price: $31.18 |
| 4 | 46500-HP2-670 | PEDAL, BRAKE Price: $98.42 |
| 5 | 46514-KZ9-000 | SPRING, BRAKE PEDAL Price: $6.45 |
| 6 | 90118-968-000 | BOLT, FLANGE (6X20) Price: $5.31 |
| 7 | 90512-303-000 | WASHER (17.5MM) Price: $2.02 |
| 8 | 91206-968-003 | DUST SEAL (17X23X3) (NOK) Price: $4.64 |
| 9 | 94201-30450 | PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.08 |
