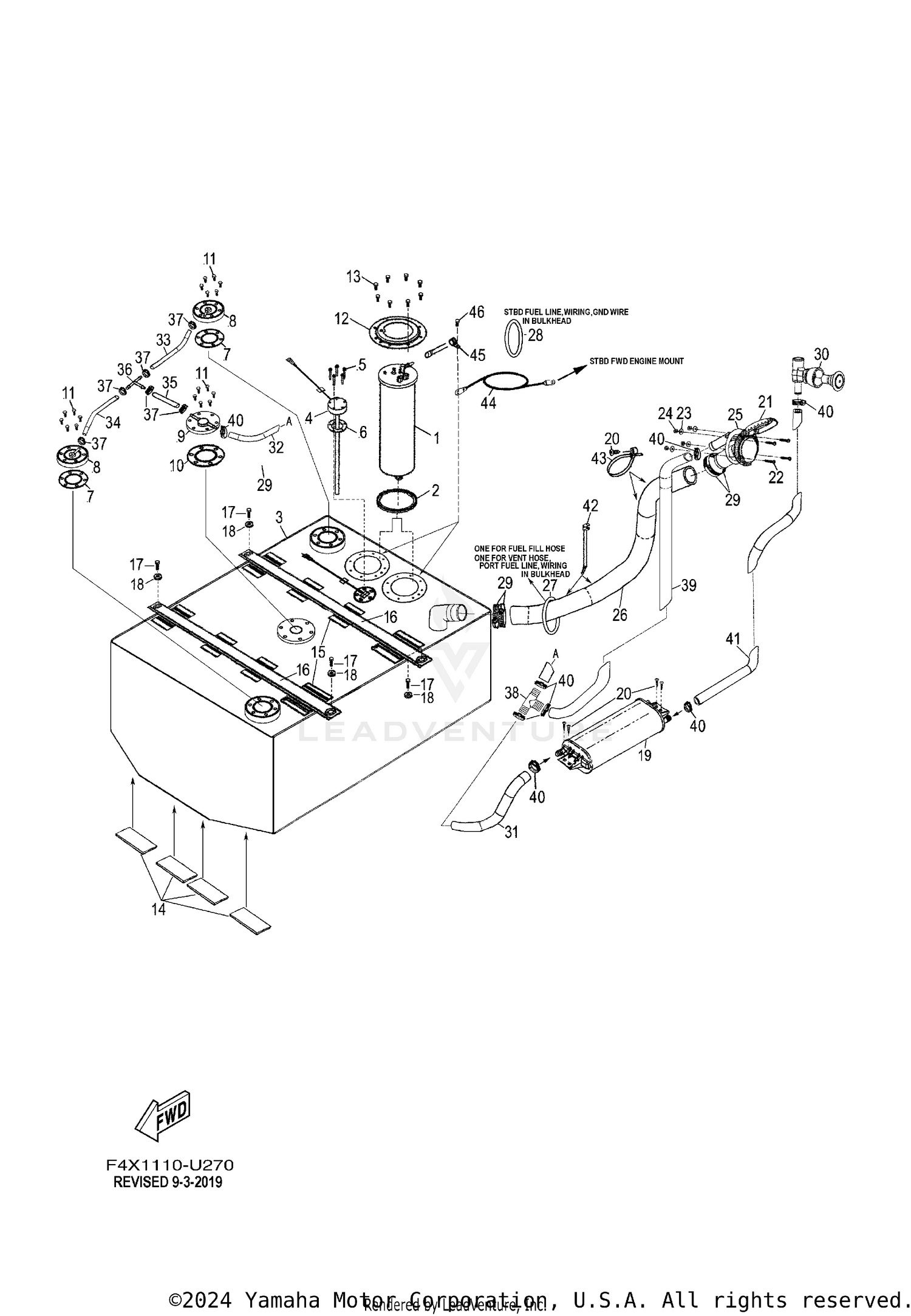

| Ref | Part Number | Description |
|---|
| 1 |
6AP-13907-05-00 |
FUEL PUMP COMP. This part replaces 6AP-13907-03-00. Price: $1,192.49 |
| 2 |
F1B-67747-00-00 |
PACKING, SEAL Price: $22.49 |
| 3 |
F4X-U7710-01-00 |
FUEL TANK ASSY. Price: $2,199.99 |
| 4 |
F4A-U824B-00-00 |
SENDER, FUEL Price: $195.99 |
| 5 |
90149-10SB2-00 |
SCREW Price: $0.45 |
| 6 |
F1C-U775E-00-00 |
PACKING Price: $17.99 |
| 7 |
F2J-U7852-00-00 |
PACKING Price: $31.99 |
| 8 |
F2J-U7744-01-00 |
AIR VENT Price: $122.99 |
| 9 |
F2J-U7744-20-00 |
AIR VENT Price: $205.99 |
| 10 |
F2J-U7852-20-00 |
PACKING Price: $25.99 |
| 11 |
90149-10SA4-00 |
SCREW, SPECIAL SHAPE Price: $7.99 |
| 12 |
F1B-U7773-00-00 |
RING Price: $30.99 |
| 13 |
90149-14SC7-00 |
SCREW Price: $5.99 |
| 14 |
F2A-U6632-00-00 |
PAD Price: $6.99 |
| 15 |
GJ3-U755J-00-00 |
MAT,WATER LOCK Price: $112.99 |
| 16 |
F4C-U777B-00-00 |
FIX, FUEL TANK Price: $81.99 |
| 17 |
90101-08802-00 |
BOLT Price: $1.15 |
| 18 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 19 |
F4X-U775L-00-00 |
BRACKET,OILTANK 2 Price: $334.99 |
| 20 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 21 |
F4X-U783E-00-00 |
FUEL FILLER ASSY Price: $246.99 |
| 22 |
90157-08S16-00 |
SCREW, PAN HEAD Price: $3.99 |
| 23 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 24 |
90185-08S00-00 |
NUT, SELF-LOCKING Price: $6.99 |
| 25 |
F2J-U7834-00-00 |
PACKING FUEL FILLER Price: $14.99 |
| 26 |
F4X-U7844-00-00 |
HOSE Price: $206.99 |
| 27 |
F4X-U136D-10-00 |
GROMMET Price: $7.99 |
| 28 |
F4X-U136D-20-00 |
GROMMET Price: $8.99 |
| 29 |
90450-57802-00 |
HOSE CLAMP ASSY Price: $4.99 |
| 30 |
F2J-U7850-00-00 |
AIR VENT Price: $71.99 |
| 31 |
F4X-U7856-00-00 |
HOSE, AIR VENT 3 Price: $30.99 |
| 32 |
F3A-U7856-00-00 |
HOSE, AIR VENT 3 Price: $40.99 |
| 33 |
F4X-U785J-00-00 |
HOSE, AIR VENT 4 Price: $25.99 |
| 34 |
F3A-U785J-00-00 |
HOSE AIR VENT Price: $19.99 |
| 35 |
F2J-U785H-00-00 |
HOSE, AIR VENT 3 Price: $5.49 |
| 36 |
F2J-U7855-10-00 |
ELBOW, AIR VENT Price: $39.99 |
| 37 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 38 |
F4X-U7617-00-00 |
JOINT, DRAIN Price: $32.99 |
| 39 |
F4X-U7856-10-00 |
HOSE, AIR VENT Price: $68.99 |
| 40 |
90450-27801-00 |
HOSE CLAMP ASSY. Price: $3.99 |
| 41 |
F2J-U7856-00-00 |
HOSE, AIR VENT 3 Price: $36.99 |
| 42 |
90464-44801-00 |
CLAMP Price: $0.20 |
| 43 |
90464-99806-00 |
CLAMP Price: $6.99 |
| 44 |
F4X-U827J-10-00 |
WIRE HARNESS 7 Price: $74.99 |
| 45 |
F1C-U781B-00-00 |
HOLDER PIPE 1 Price: $1.90 |
