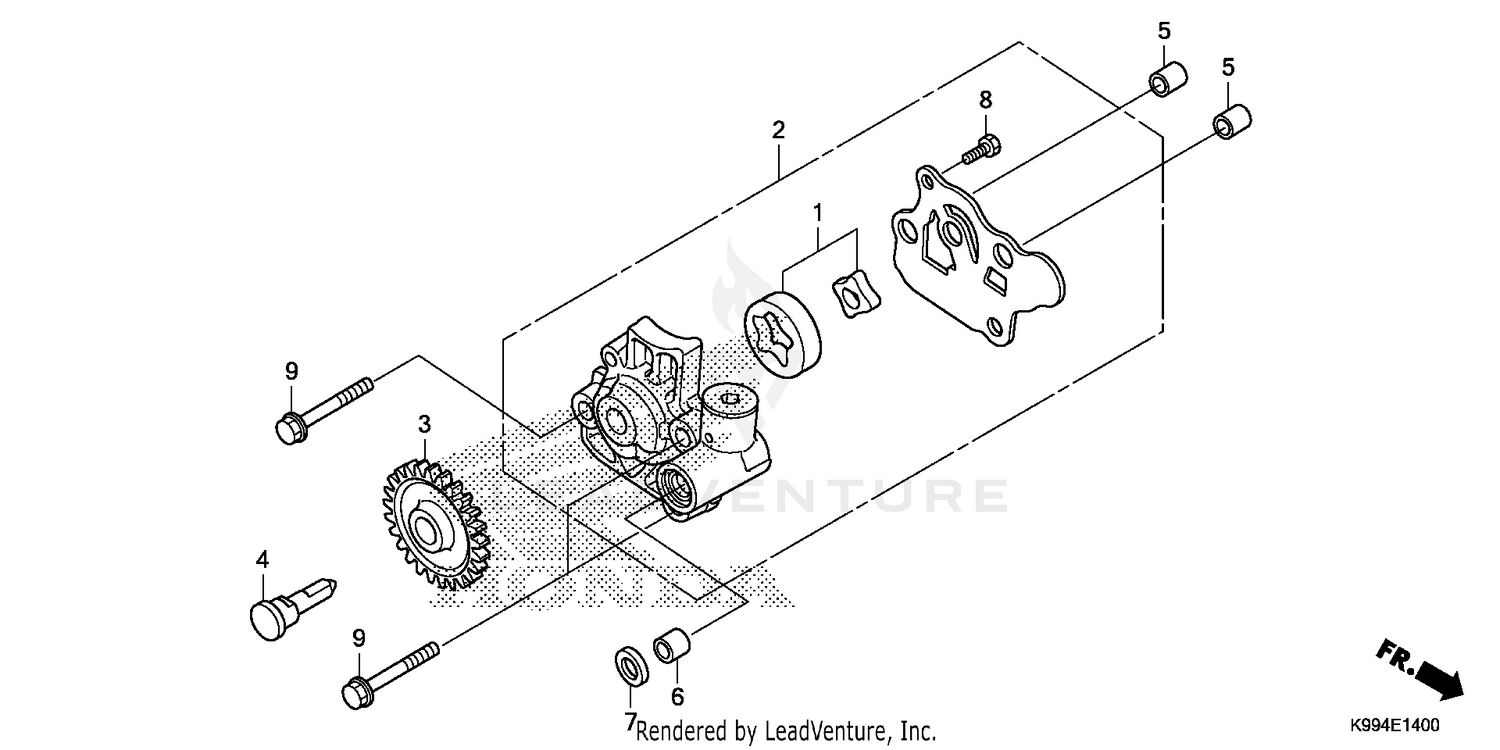

OIL PUMP
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 15021-K31-900 | ROTOR SET, OIL PUMP Price: $5.78 |
| 2 | 15100-K31-900 | PUMP ASSY., OIL Price: $130.69 |
| 3 | 15130-K31-900 | GEAR, OIL PUMP DRIVEN (27T) Price: $18.47 |
| 4 | 15141-K31-900 | SHAFT, OIL PUMP Price: $25.35 |
| 5 | 90702-KRM-840 | PIN, DOWEL (8X14) Price: $0.76 |
| 6 | 94301-10120 | PIN, DOWEL (10X12) This part replaces 90703-KRM-840. Price: $2.58 |
| 7 | 91303-KPF-960 | GASKET, RUBBER (NA USE ALT:91303-KK0-003) Price: $4.71 |
| 8 | 93301-05012-0J | BOLT, HEX. (5X12) Price: $1.07 |
