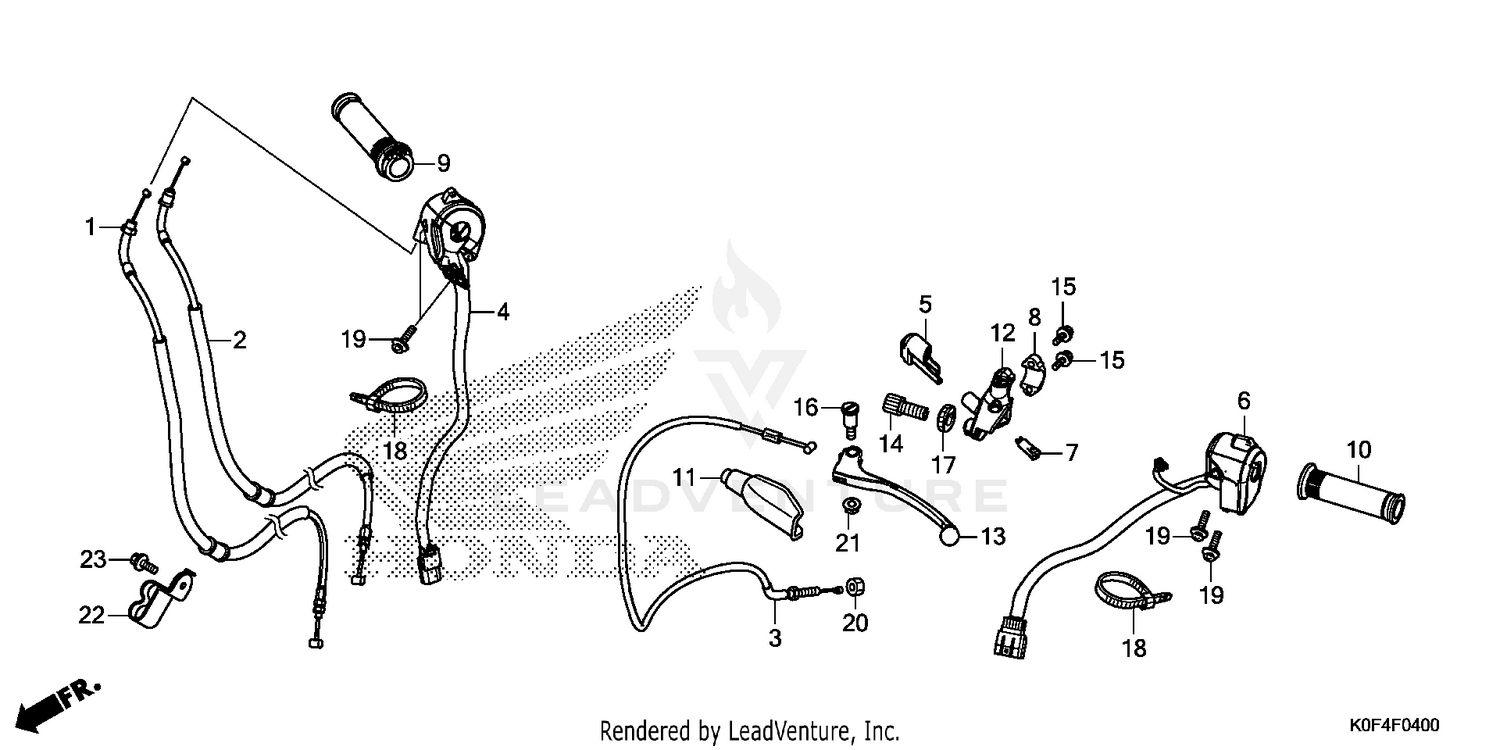

| Ref | Part Number | Description |
|---|
| 1 |
17910-K0F-T01 |
CABLE A, THROTTLE Price: $19.42 |
| 2 |
17920-K0F-T01 |
CABLE B, THROTTLE Price: $20.13 |
| 3 |
22870-K0F-T01 |
CABLE, CLUTCH Price: $15.80 |
| 4 |
35130-K0F-T02 |
SW ASSY., ENG STOP This part replaces 35130-K0F-T01. Price: $66.35 |
| 5 |
35152-KRY-970 |
COVER, CLUTCH SWITCH Price: $12.16 |
| 6 |
35200-K0F-T01 |
SWITCH ASSY., TURN SIGNAL Price: $111.13 |
| 7 |
35330-KYJ-901 |
SWITCH, FR. LEVER Price: $8.29 |
| 8 |
45517-KCW-870 |
HOLDER, MASTER CYLINDER Price: $13.11 |
| 9 |
53140-K0F-T00 |
GRIP, THROTTLE Price: $11.95 |
| 10 |
53166-K0F-T00 |
GRIP, L. HANDLE Price: $5.33 |
| 11 |
53172-402-700 |
COVER, L. HANDLEBAR LEVER Price: $9.04 |
| 12 |
53172-KYJ-900 |
BRACKET, HANDLE LEVER Price: $16.84 |
| 13 |
53178-KV0-000 |
LEVER, L. HANDLE Price: $22.38 |
| 14 |
53192-268-000 |
BOLT, CABLE ADJUSTING Price: $8.20 |
| 15 |
90013-GHB-660 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 16 |
90113-438-000 |
BOLT, L. HANDLEBAR LEVER PIVOT Price: $9.53 |
| 17 |
90321-315-670 |
NUT, FIXING Price: $9.18 |
| 18 |
90650-KW3-000 |
BAND, WIRE Price: $5.62 |
| 19 |
93892-05020-07 |
SCREW-WASHER (5X20) Price: $0.98 |
| 20 |
94030-08000 |
NUT, HEX. (8MM) Price: $1.12 |
| 21 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 22 |
17911-K0F-T00 |
CLAMP, THROTTLE CABLE Price: $3.95 |
