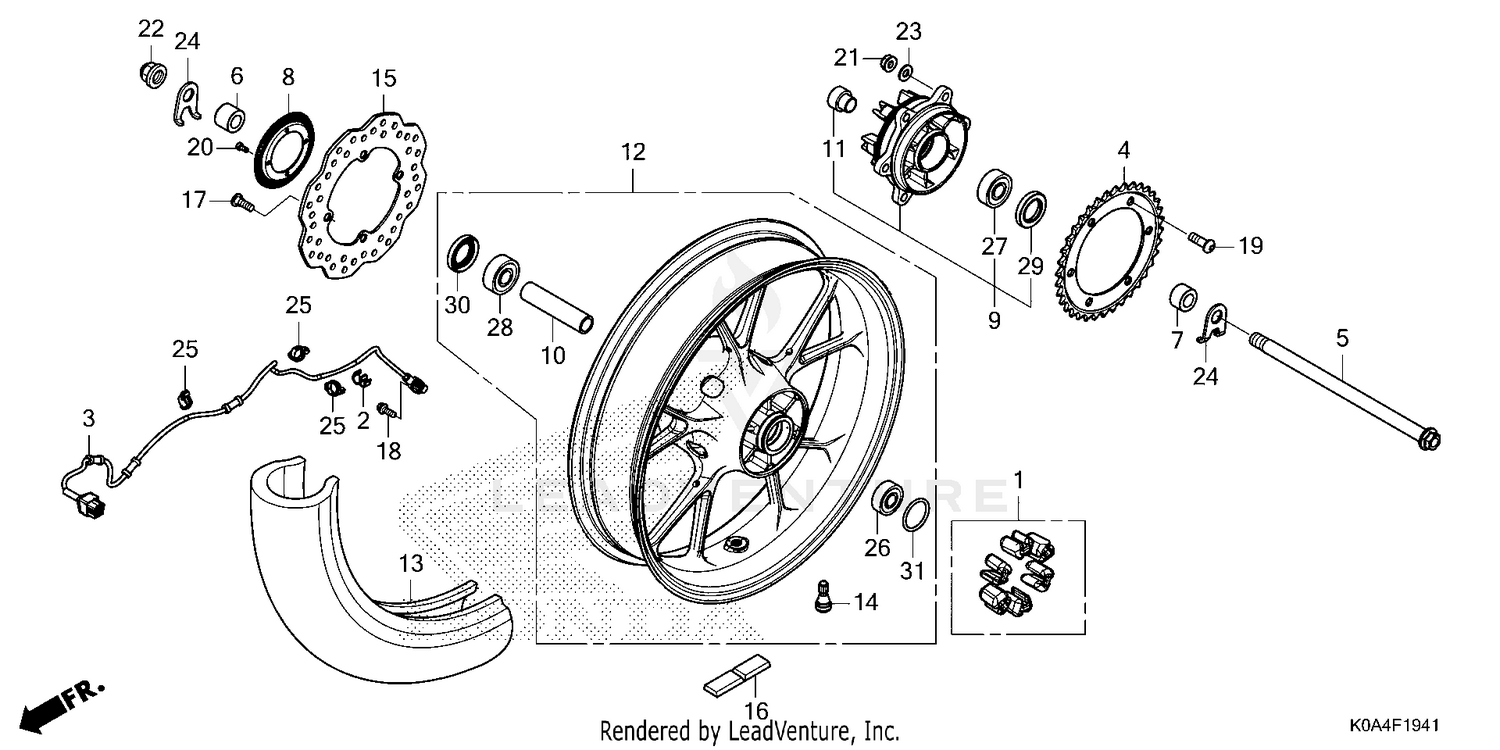

| Ref | Part Number | Description |
|---|
| 1 |
06410-KEA-750 |
DAMPER SET, WHEEL Price: $54.36 |
| 2 |
11152-KS4-003 |
CLAMP, PIPE Price: $8.95 |
| 3 |
38510-K0A-EB1 |
SENSOR, RR. Price: $39.56 |
| 4 |
41201-K0A-EB1 |
SPROCKET (36T) Price: $40.02 |
| 5 |
42301-K0A-E10 |
AXLE, RR. WHEEL Price: $62.91 |
| 6 |
42312-K0A-DB0 |
COLLAR, R. RR. Price: $13.65 |
| 7 |
42313-K87-A00 |
COLLAR, L. RR. WHEEL SIDE Price: $12.96 |
| 8 |
42515-K0A-EB0 |
RING, RR. PULSER Price: $27.09 |
| 9 |
42615-K0A-DB0ZA |
FLANGE SUB-A*YR325M* Price: $129.49 |
| 9 |
42615-K0A-DB0ZB |
FLANGE SUB-A*NH303M* Price: $129.49 |
| 10 |
42620-K94-T00 |
COLLAR, RR. WHEEL DISTANCE Price: $10.31 |
| 11 |
42625-MAN-620 |
COLLAR B, RR. AXLE DISTANCE This part replaces 42625-MC4-000. Price: $22.44 |
| 12 |
42650-K94-T10ZC |
WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC) Price: $322.09 |
| 12 |
42650-K94-T10ZD |
WHEEL SUB-ASSY., RR. *YR325M* (PYRITE BROWN METALLIC) Price: $325.24 |
| 13 |
42711-K94-T02 |
TIRE, RR. (150/60R17M/C 66H) (DUNLOP) Price: $148.42 |
| 14 |
42753-GM9-743 |
VALVE, RIM (IRC) Price: $10.51 |
| 15 |
43251-K94-T01 |
DISK, RR. BRAKE Price: $105.07 |
| 16 |
44721-MGH-H21 |
WEIGHT, BALANCE (10G) Price: $4.05 |
| 16 |
44722-MGH-H21 |
WEIGHT, BALANCE (15G) Price: $4.85 |
| 16 |
44723-MGH-H21 |
WEIGHT, BALANCE (20G) Price: $4.63 |
| 17 |
90105-KGH-900 |
BOLT, BRAKE DISK (8X24) Price: $2.18 |
| 18 |
90117-KZZ-J80 |
BOLT, FLANGE (6X14) (NOT AVAILABLE) Price: $0.65 |
| 19 |
90128-KYJ-900 |
BOLT, SPROCKET FIXING Price: $1.55 |
| 20 |
90131-K64-N10 |
BOLT, TORX (5X10) Price: $2.65 |
| 21 |
90304-KGH-901 |
NUT, U (10MM) Price: $3.96 |
| 22 |
90306-KCJ-951 |
NUT, U (16MM) Price: $5.89 |
| 23 |
90502-MCF-000 |
WASHER (10MM) Price: $3.20 |
| 24 |
90559-K94-T00 |
WASHER, RR. AXLE Price: $6.38 |
| 25 |
90690-MCA-003 |
CLIP, CABLE (14MM) Price: $2.02 |
| 26 |
91051-K35-V03 |
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V02. Price: $23.29 |
| 27 |
91052-K53-D01 |
BEARING, RADIAL BALL L (6204UU) (NTN) Price: $211.15 |
| 28 |
91051-K53-D01 |
BEARING, RADIAL BALL L (6303UU) (NTN) Price: $22.82 |
| 29 |
91253-443-762 |
DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761. Price: $14.69 |
| 30 |
91253-443-762 |
DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761. Price: $14.69 |
