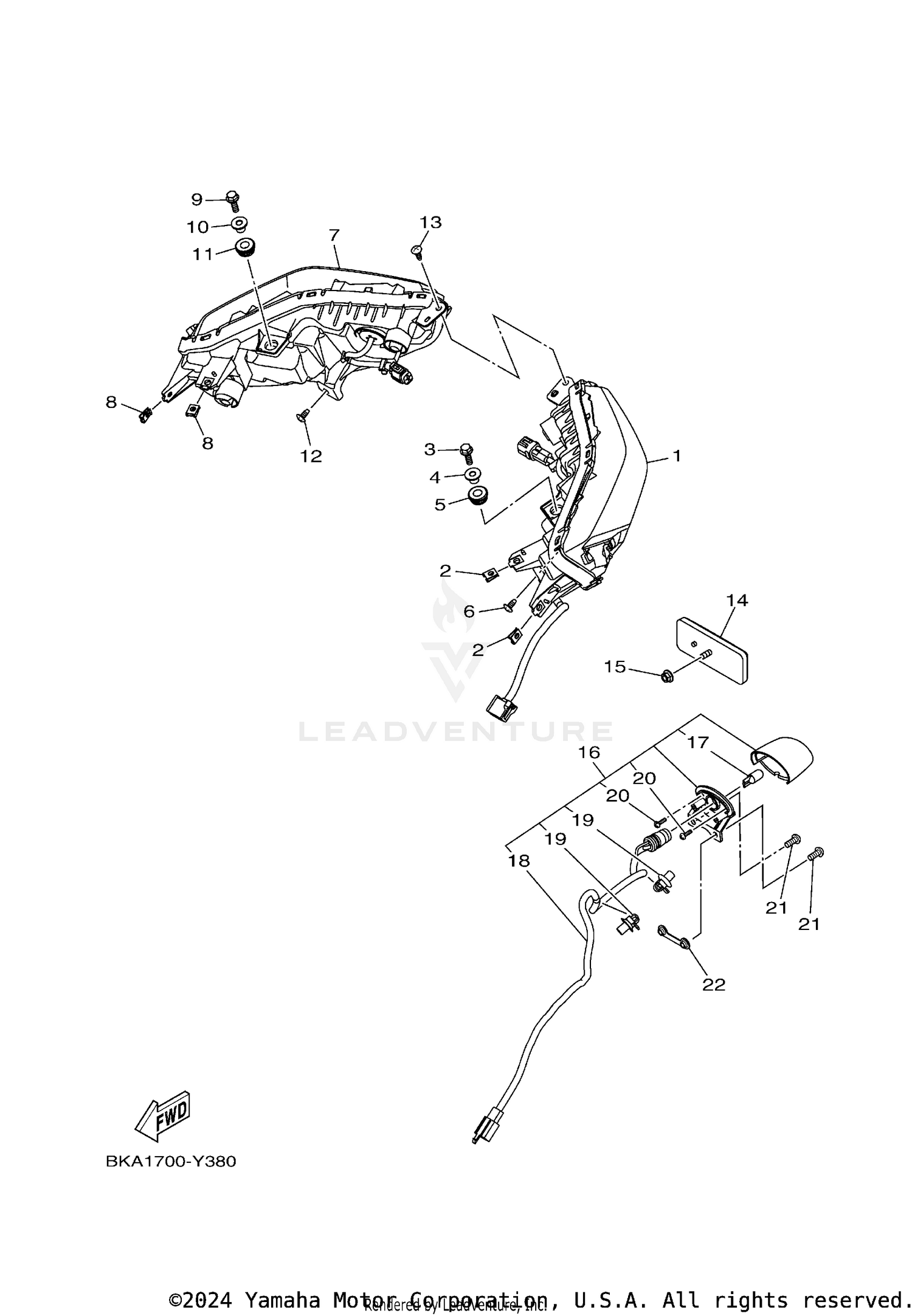

| Ref | Part Number | Description |
|---|
| 1 |
BKA-H4710-00-00 |
TAILLIGHT UNIT ASS Price: $195.99 |
| 2 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 3 |
95D32-06020-00 |
BOLT, FLANGE DEEP RECESS Price: $1.35 |
| 4 |
90387-068G3-00 |
COLLAR Price: $1.15 |
| 5 |
90480-14823-00 |
GROMMET Price: $0.30 |
| 6 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 7 |
BKA-H4730-00-00 |
TAILLIGHT UNIT ASS Price: $177.99 |
| 8 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 9 |
95D32-06020-00 |
BOLT, FLANGE DEEP RECESS Price: $1.35 |
| 10 |
90387-068G3-00 |
COLLAR Price: $1.15 |
| 11 |
90480-14823-00 |
GROMMET Price: $0.30 |
| 12 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 13 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 14 |
3C1-H5130-00-00 |
REAR REFLECTOR ASSY Price: $4.20 |
| 15 |
95707-05500-00 |
NUT, FLANGE Price: $9.49 |
| 16 |
B74-H4740-10-00 |
LICENCE LIGHT ASSY Price: $27.99 |
| 17 |
1WD-H4744-00-00 |
BULB (12V-5W) Price: $13.49 |
| 18 |
B74-H4547-00-00 |
CORD, LICENSE LIGHT Price: $9.49 |
| 19 |
B74-H454J-00-00 |
CLAMP, CORD Price: $2.40 |
| 20 |
1WD-H4726-00-00 |
SCREW Price: $0.50 |
| 21 |
92017-05012-00 |
BOLT, BUTTON HEAD Price: $3.85 |
