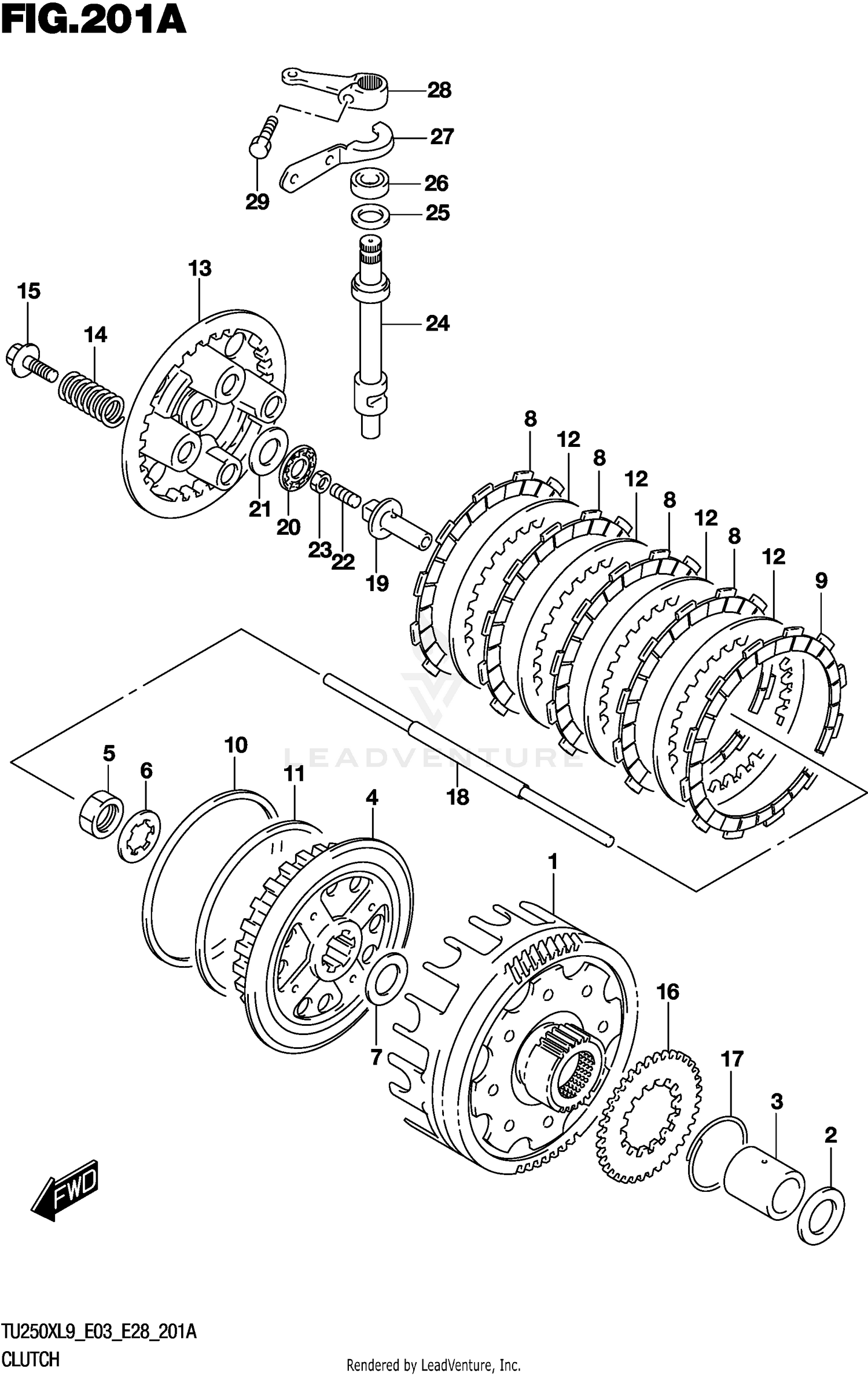

CLUTCH
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 21200-38202 | GEAR ASSY,PRI D This part replaces 21200-38201. Price: $303.12 |
| 2 | 08211-22363 | WASHER Price: $4.22 |
| 3 | 09180-22024 | SPACER (22X28X37.5) Price: $19.05 |
| 4 | 21411-38201 | HUB Price: $131.52 |
| 5 | 09140-22005 | NUT Price: $4.06 |
| 6 | 09167-22010 | LOCK WASHER Price: $4.83 |
| 7 | 08211-22363 | WASHER Price: $4.22 |
| 8 | 21441-37400 | PLATE,CLUTCH DRIVE (T:3.0) Price: $22.39 |
| 9 | 21442-37401 | PLATE,CLUTCH DRIVE (T:3.5) Price: $23.06 |
| 10 | 21471-37400 | SEAT, WAVE WASHER (T:1.4) Price: $12.08 |
| 11 | 09164-00004 | WASHER (110.5X119X0.9) Price: $14.02 |
| 12 | 21451-14A00 | PLATE,CLUTCH DRIVEN (T:1.6) Price: $11.76 |
| 13 | 21462-27A00 | DISK,CLUTCH PRESSURE Price: $62.30 |
| 14 | 21413-13F00 | SPRING Price: $4.01 |
| 15 | 09116-06167 | BOLT (6X20) Price: $2.64 |
| 16 | 16321-38210 | GEAR Price: $42.82 |
| 17 | 09380-50001 | CIRCLIP Price: $1.94 |
| 18 | 23110-38201 | ROD Price: $19.46 |
| 19 | 23121-38201 | PIECE, CLUTCH PUSH Price: $28.89 |
| 20 | 09263-15003 | BEARING (15X28X2) Price: $10.10 |
| 21 | 09160-15045 | WASHER (15.5X28X1) Price: $4.75 |
| 22 | 09134-06010 | SCREW (6X25) Price: $3.80 |
| 23 | 09140-06023 | NUT Price: $2.50 |
| 24 | 23122-38200 | CAMSHAFT Price: $53.31 |
| 25 | 09160-14054 | WASHER (14.5X22X1) Price: $2.18 |
| 26 | 09285-12006 | OIL SEAL (12X22X9) Price: $7.69 |
| 27 | 23117-38200 | PLATE Price: $5.96 |
| 28 | 23271-12D10 | ARM Price: $29.92 |
