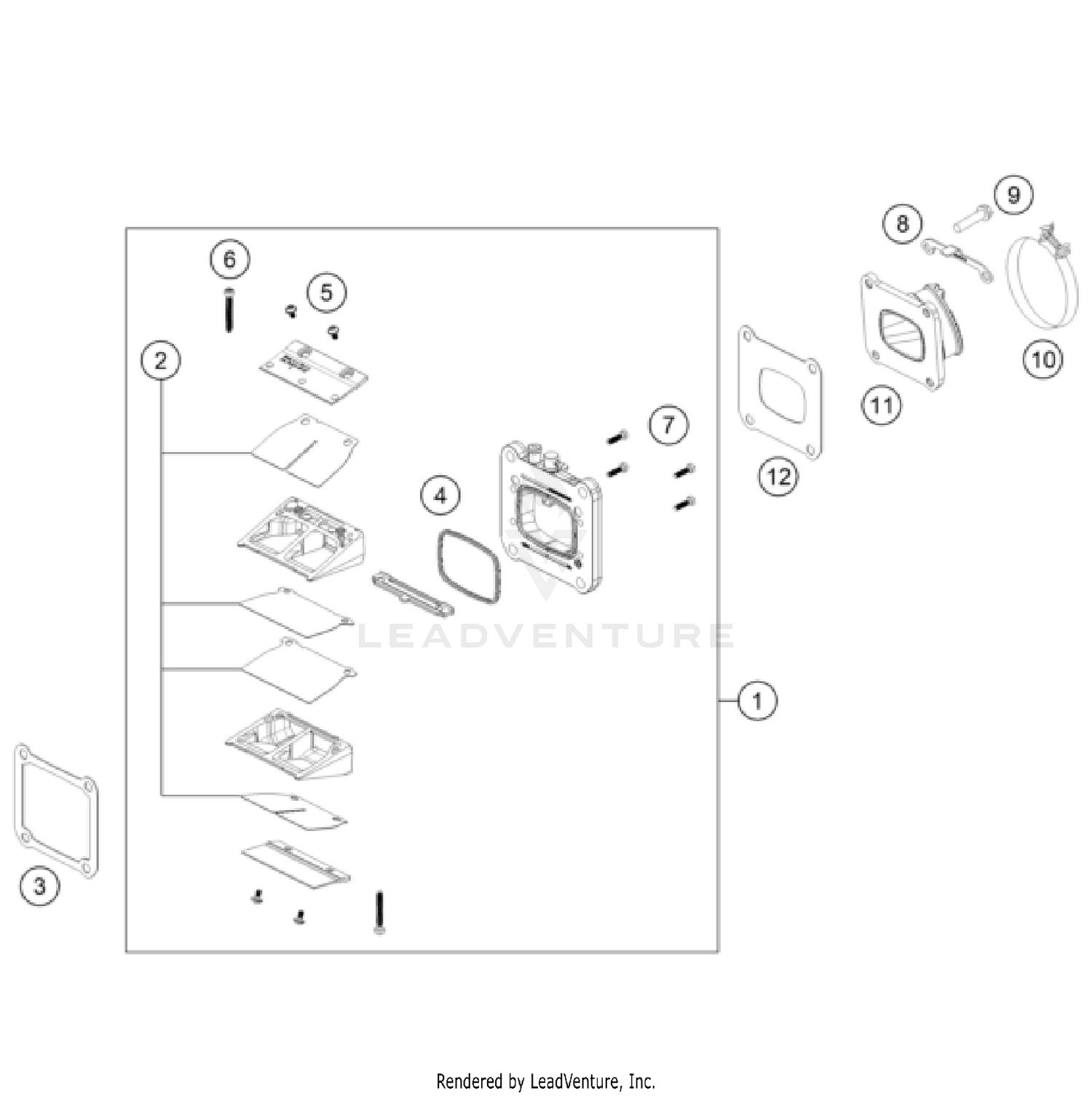

REED VALVE CASE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A45030051044 | Membrane Box cpl. Price: $249.69 |
| 2 | 50530152044 | Reed Valve Set Price: $134.89 |
| 3 | 50430098050 | GASKET REED VALVE CASE Price: $9.01 |
| 4 | 54830153050 | GASKET SUPPORTING PLATE Price: $11.10 |
| 5 | 00810300553 | EJOT DELTA PT SCREW 30X5,5 Price: $1.99 |
| 6 | 0081035253 | EJOT DELTA PT SCREW 35X25 Price: $1.99 |
| 7 | 0081030124 | EJOT DELTA PT SCREW 30X12 Price: $1.99 |
| 9 | 0025060256 | HH collar screw M6x25 TX30 Price: $3.99 |
| 10 | 54330061000 | CLAMP 52/12 GEMI Price: $8.79 |
| 11 | 50430050000 | INTAKE FLANGE Price: $63.90 |
