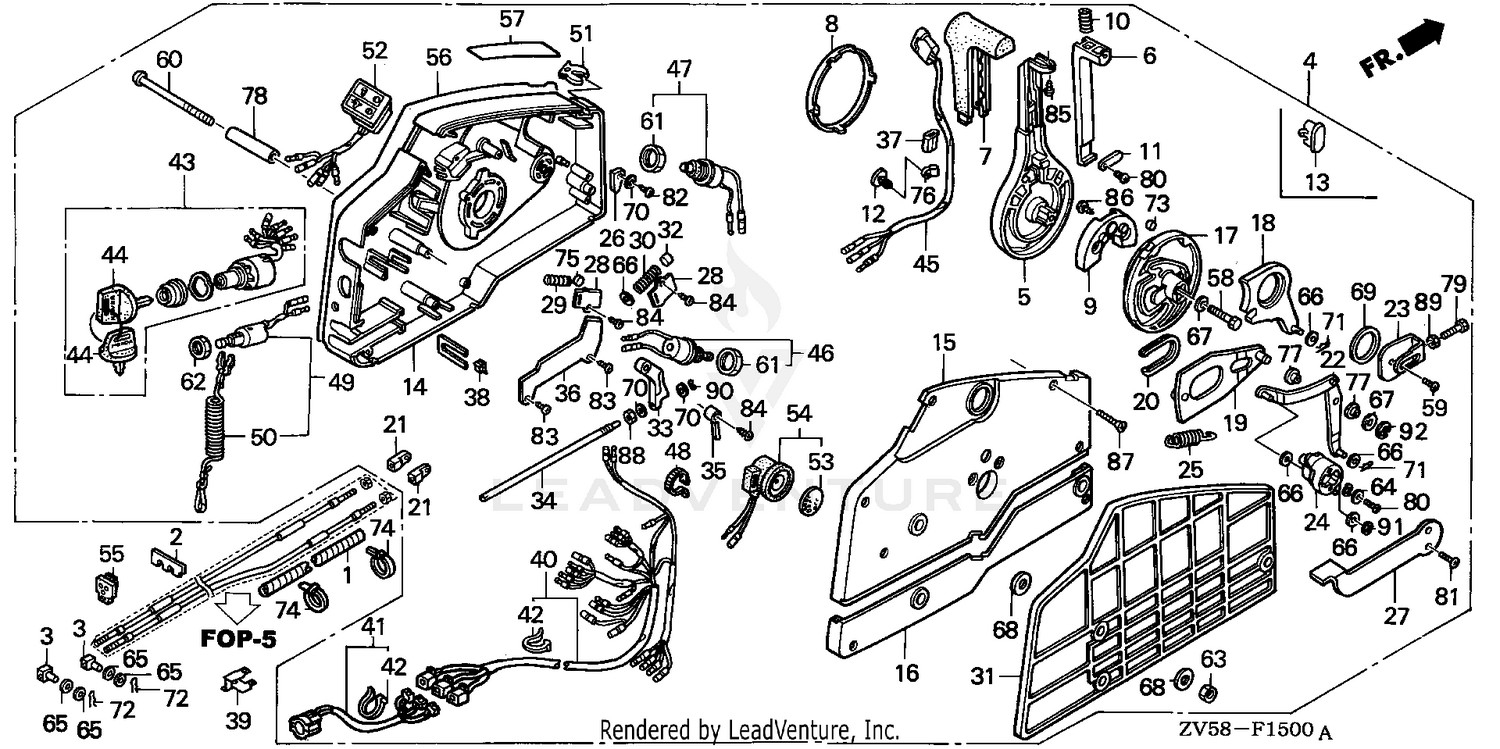

| Ref | Part Number | Description |
|---|
| 1 |
17736-ZW1-000 |
TUBE, CORRUGATED (28MM) Price: $5.40 |
| 2 |
17877-ZV5-000 |
PLATE, REMOTE CONTROL CABLE Price: $10.80 |
| 3 |
24618-ZV5-000 |
PIVOT, SHIFT Price: $19.24 |
| 5 |
24811-ZV5-010 |
SEE PART DETAILS - PRI; HANDLE, REMOTE CONTROL Price: $157.66 |
| 6 |
24812-ZV5-000 |
LEVER, HANDLE LOCK Price: $18.82 |
| 7 |
24813-ZV5-000 |
GRIP, REMOTE CONTROL HANDLE Price: $54.42 |
| 8 |
24814-ZV5-010 |
SEE PART DETAILS - PRI; CAP, HANDLE Price: $11.28 |
| 9 |
24815-ZV5-010 |
SEE PART DETAILS - PRI; BLOCK, NEUTRAL LOCK Price: $11.02 |
| 10 |
24816-ZV5-000 |
SPRING, REMOTE CONTROL HANDLE Price: $5.58 |
| 11 |
24817-ZV5-000 |
PLATE, LEVER SETTING Price: $5.22 |
| 12 |
24818-ZV5-003 |
CLAMP, HARNESS Price: $1.82 |
| 14 |
24820-ZV5-010 |
SEE PART DETAILS - PRI; HOUSING, REMOTE CONTROL BOX (A) Price: $139.84 |
| 15 |
24830-ZV5-010 |
SEE PART DETAILS - PRI; HOUSING, REMOTE CONTROL BOX (B) Price: $74.08 |
| 16 |
24836-ZV5-000 |
HOUSING, REMOTE CONTROL BOX (C ) Price: $46.08 |
| 17 |
24841-ZV5-000 |
WHEEL, CONTROL Price: $79.36 |
| 18 |
24845-ZV5-000 |
ARM, SHIFT LINK Price: $54.14 |
| 19 |
24850-ZV5-000 |
PLATE, SLIDING Price: $64.06 |
| 20 |
24854-ZV5-000 |
COLLAR, SLIDING PLATE Price: $11.10 |
| 21 |
24855-ZV5-000 |
PIVOT, SHIFT Price: $11.10 |
| 22 |
24860-ZV5-000 |
ARM, LINK JOINT Price: $51.80 |
| 23 |
24865-ZV5-000 |
BRACKET, LINK JOINT Price: $23.72 |
| 24 |
24875-ZV5-000 |
WHEEL, ACCELERATOR Price: $30.70 |
| 25 |
24876-ZV5-000 |
SPRING, ACCELERATOR WHEEL Price: $5.58 |
| 26 |
24877-ZV5-000 |
CAM, STARTER SWITCH Price: $6.40 |
| 27 |
24878-ZV5-000 |
LEVER, IDLE Price: $71.00 |
| 28 |
24881-ZV5-000 |
PLATE, SPRING SETTING Price: $5.22 |
| 29 |
24883-ZV5-000 |
SPRING, SHIFT CLICK Price: $5.34 |
| 30 |
24884-ZV5-000 |
SPRING, CHOKE RETURN Price: $5.34 |
| 31 |
24885-ZV5-000 |
SPACER, REMOTE CONTROL BOX Price: $95.68 |
| 32 |
24887-ZV5-000 |
SPACER, CLICK SPRING Price: $6.34 |
| 33 |
24891-ZV5-000 |
BLOCK, THROTTLE FRICTION Price: $10.74 |
| 34 |
24892-ZV5-000 |
BOLT, FRICTION Price: $20.90 |
| 35 |
24894-ZV5-000 |
SPACER, NEUTRAL SWITCH Price: $8.64 |
| 36 |
24895-ZV5-000 |
CLAMP, POWER TILT CORD Price: $8.66 |
| 37 |
24897-ZV5-000 |
PIPE, HARNESS GUIDE Price: $6.80 |
| 38 |
24898-ZV5-000 |
SPACER, CABLE CLAMP Price: $6.64 |
| 39 |
32109-ZV5-010 |
SEE PART DETAILS - PRI; BRACKET, CONNECTOR This part replaces 32109-ZV5-000. Price: $6.56 |
| 40 |
32530-ZW1-010 |
CABLE ASSY., REMOTE CONTROL (B) Use up to Frame SN 1300359. Price: $260.40 |
| 41 |
32580-ZW1-V01 |
SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL Use up to Frame SN 1300359. Price: $206.18 |
| 42 |
32901-952-770 |
TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359. Price: $3.00 |
| 43 |
35100-ZV5-003 |
SWITCH ASSY., COMBINATION DUAL QTY = (2) (SINGLE) Price: $187.70 |
| 44 |
35110-ZV5-003 |
KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) DUAL QTY = (4) (SINGLE) Price: $10.94 |
| 45 |
35370-ZV5-823 |
SEE PART DETAILS - PRI; SWITCH ASSY., POWER TRIM-TILT Price: $87.54 |
| 46 |
35495-ZV5-821 |
SWITCH ASSY., THROTTLE Use up to Frame SN 1300353. Price: $71.70 |
| 47 |
35630-ZV5-003 |
SWITCH ASSY., SOLENOID Price: $57.20 |
| 48 |
35701-MG9-950 |
BAND (BLACK 3.5X140) Price: $2.50 |
| 49 |
36180-ZV5-033 |
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP Price: $77.86 |
| 50 |
36182-ZV4-651 |
SEE PART DETAILS - PRI; WIRE, EMERGENCY This part replaces 36182-ZV4-650. Price: $25.28 |
| 51 |
36187-ZV4-652 |
SEE PART DETAILS - PRI; CLIP, EMERGENCY LOCK Price: $5.72 |
| 52 |
37210-ZV5-013 |
SEE PART DETAILS - PRI; LAMP ASSY., INDICATION (2-LED) Price: $174.92 |
| 53 |
38403-341-672 |
PLATE, TURN SIGNAL BUZZER DUAL QTY = (2) (SINGLE) Price: $6.38 |
| 54 |
38410-ZV5-003 |
BUZZER, WARNING DUAL QTY = (2) (SINGLE) Price: $76.94 |
| 55 |
40105-ZV5-000 |
GROMMET, CASE (LOWER) (A) Price: $17.30 |
| 56 |
87701-ZV5-010 |
SEE PART DETAILS - PRI; PLATE, REMOTE CONTROL (CAUTION=SILVER) Price: $73.74 |
| 57 |
87702-ZV5-000 |
MARK, FAST IDLE Price: $7.72 |
| 58 |
90009-ZV5-000 |
BOLT, HEX. (8X35) Use up to Frame SN 4800712. Price: $5.70 |
| 59 |
90105-MM4-000 |
SCREW, PAN (6X10) Price: $2.78 |
| 60 |
90125-ZV5-000 |
SCREW (6X95) Price: $9.46 |
| 61 |
90302-ZV5-003 |
NUT, HEX. (20MM) Use up to Frame SN 1300359. Price: $7.22 |
| 62 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 63 |
90304-ZV4-000 |
NUT, HEX. (6MM) Price: $2.90 |
| 64 |
90502-ZV4-000 |
WASHER, PLAIN (5MM) Price: $3.74 |
| 65 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 66 |
90506-ZV4-000 |
WASHER, PLAIN (6MM) Use up to Frame SN 4800342. Price: $3.36 |
| 67 |
90507-ZV4-000 |
WASHER, PLAIN (8MM) Use up to Frame SN 4800712. Price: $3.02 |
| 68 |
90512-921-010 |
SEE PART DETAILS - PRI; WASHER (6MM) Price: $1.46 |
| 69 |
90557-ZV5-000 |
WASHER (28MM) Price: $4.10 |
| 70 |
90561-ZV5-000 |
WASHER, PLAIN (4MM) Use up to Frame SN 4800712. Price: $2.22 |
| 71 |
90751-ZV5-000 |
PIN, LOCK (6MM) Price: $4.50 |
| 72 |
90765-ZV5-000 |
PIN, SPECIAL LOCK (6MM) Price: $2.44 |
| 73 |
90772-ZV5-000 |
PIN (6X6) Price: $5.46 |
| 74 |
91058-MG9-681 |
BAND, SELF-LOCK Use from Frame SN 3000253. Price: $2.78 |
| 75 |
91151-ZV5-000 |
ROLLER, CLICK Price: $4.72 |
| 76 |
91475-SB6-000 |
CLIP, WIRE HARNESS (6.3MM) Price: $10.58 |
| 77 |
91567-ZV5-000 |
COLLAR, LINK JOINT Price: $3.78 |
| 78 |
91570-ZV5-000 |
COLLAR, DISTANCE (6X10X43.5) Price: $11.10 |
| 79 |
92101-05016-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (5X16) Price: $1.66 |
| 80 |
93500-05010-4J |
SEE PART DETAILS - PRI; SCREW, PAN (5X10) Price: $1.68 |
| 81 |
93700-05012-4J |
SCREW, OVAL (5X12) Use up to Frame SN 4800712. Price: $2.32 |
| 82 |
93901-242J0 |
SCREW, TAPPING (4X10) Price: $1.86 |
| 83 |
93901-250J0 |
SCREW, TAPPING (5X8) (FOR SILVER MUFFLER) Price: $2.24 |
| 84 |
93901-251J0 |
SCREW, TAPPING (5X10) Price: $0.80 |
| 85 |
93901-252J0 |
SCREW, TAPPING (5X12) Price: $2.10 |
| 86 |
93903-262J0 |
SCREW, TAPPING (6X16) Price: $3.24 |
| 87 |
93905-255J0 |
SCREW, TAPPING (5X25) Price: $3.24 |
| 88 |
94001-06490-0S |
SEE PART DETAILS - PRI; NUT, HEX. (6MM) Price: $2.82 |
| 89 |
94002-05490-0S |
NUT, HEX. (5MM) Price: $1.32 |
| 90 |
94540-03029 |
E-RING (3MM) Price: $1.74 |
| 91 |
94540-04029 |
E-RING (4MM) Price: $6.42 |
