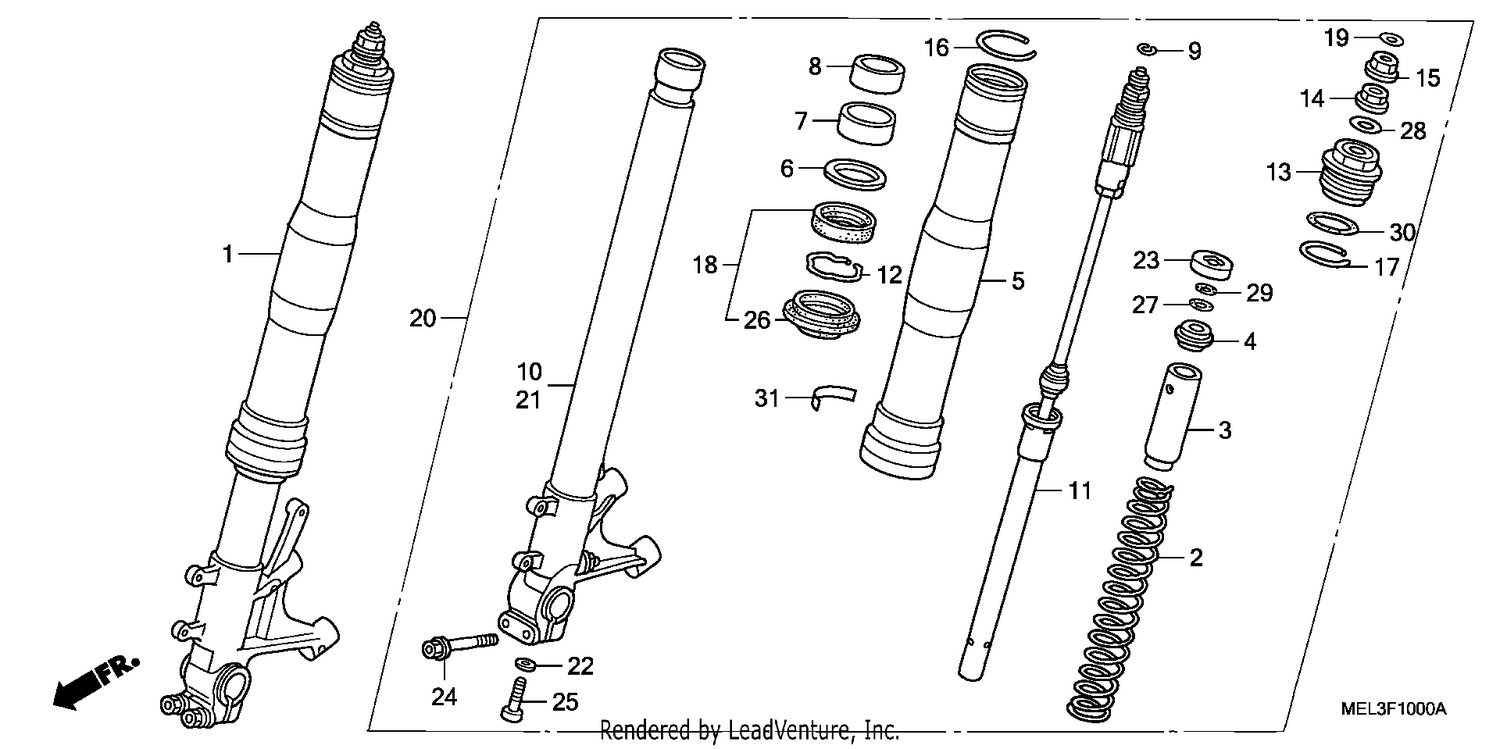

FRONT FORK

FRONT FORK

Parts (30)

RefPart NumberDescription
1 51400MELD41 FORK ASSY., R. FR. Price: Call Us
2 51401MELD21 SPRING, FR. FORK Price: Call Us
3 51403MCF003 COLLAR, SPRING Price: Call Us
4 51406MW4003 STOPPER, SPRING SEAT Price: Call Us
5 51410MELD41 TUBE, OUTER Price: Call Us
6 51412MEL003 RING, BACK UP Price: Call Us
7 51414MAZ003 BUSH, GUIDE Price: Call Us
8 51415MAZ003 BUSH, SLIDER Price: Call Us
9 51423MCJ751 RING B, STOPPER Price: Call Us
10 51425MELD21 PIPE, R. SLIDE Price: Call Us
11 51430MELD21 DAMPER COMP., FR. Price: Call Us
12 51447KA4711 RING, OIL SEAL STOPPER Price: Call Us
13 51450MEL003 BOLT, FR. FORK Price: Call Us
14 51451MEL003 NUT, LOCK Price: Call Us
15 51453MCJ751 PLATE B, ADJUSTING Price: Call Us
16 51455MW4003 RING, STOPPER Price: Call Us
17 51456MCJ751 RING, STOPPER Price: Call Us
18 51490MEJ003 SEAL SET, FR. FORK Price: Call Us
19 51496MCJ751 LABEL Price: Call Us
20 51500MELD41 FORK ASSY., L. FR. Price: Call Us
21 51525MELD21 PIPE, L. SLIDE Price: Call Us
22 52442KA3711 WASHER, SPECIAL, 10MM Price: Call Us
23 53702MCJ751 PLATE, SPRING ADJUSTER Price: Call Us
24 90109MR7000 BOLT, FLANGE, 8X45 Price: Call Us
25 90126MR7003 BOLT, SOCKET, 10X35 Price: Call Us
26 91254MEJ003 SEAL, DUST Price: Call Us
27 91255MCJ751 O-RING, 10.8X2.4 Price: Call Us
28 91256MCJ751 O-RING, 23.3X2.4 Price: Call Us
29 91257MCJ751 O-RING, 9.5X1.5 Price: Call Us
30 91258GF4003 O-RING, 42.2X2.4 Price: Call Us
