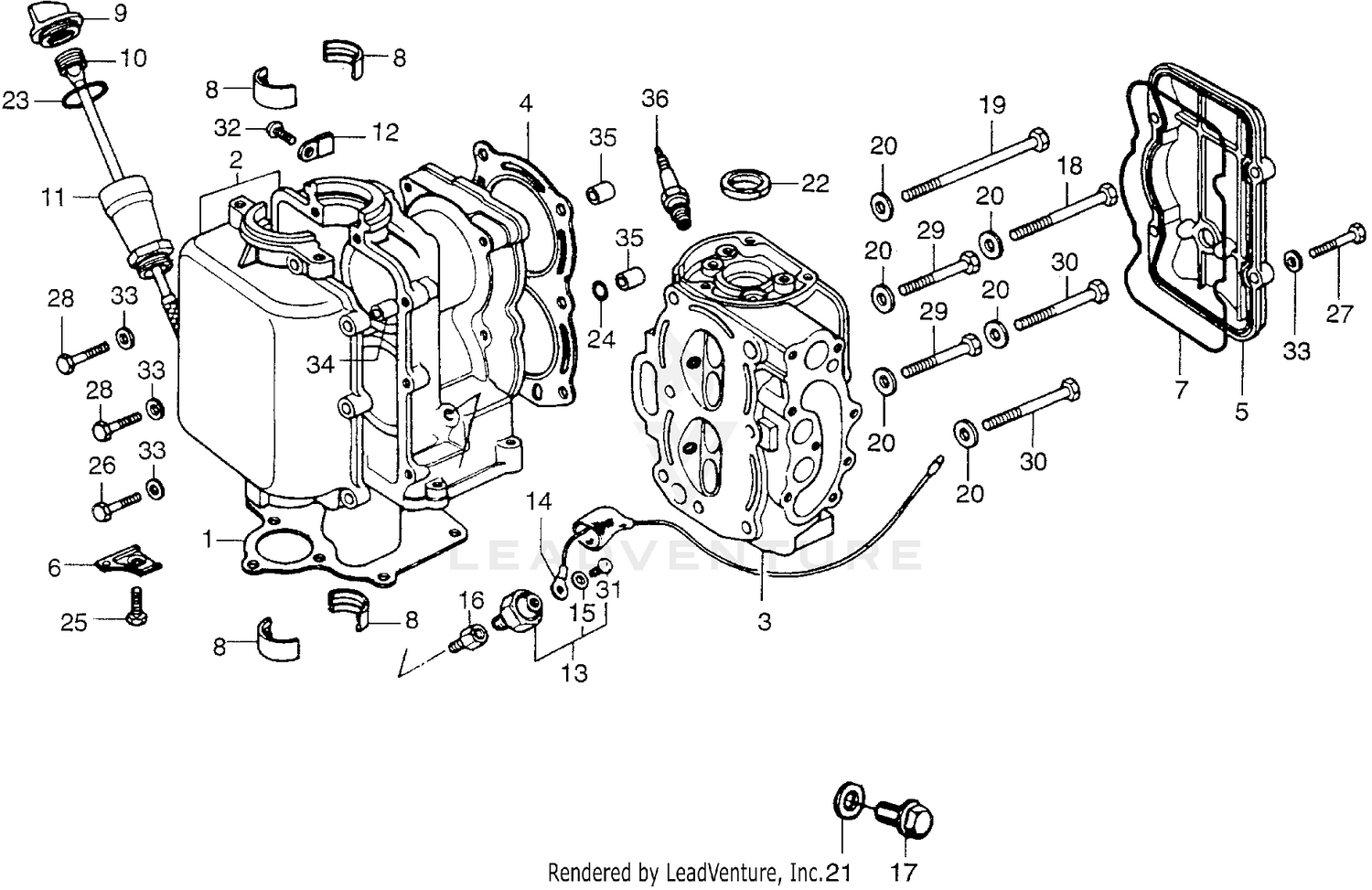

| Ref | Part Number | Description |
|---|
| 1 |
11210-921-030 |
SEE PART DETAILS - SUP; GASKET, OIL PAN Price: Call Us |
| 2 |
12010-935-010KA |
CYLINDER Price: $1,003.80 |
| 3 |
12200-921-050KA |
CYLINDER HEAD Price: Call Us |
| 4 |
12251-921-505 |
SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD Price: $54.36 |
| 5 |
12300-921-050KA |
COVER, CYLINDER HEAD Price: Call Us |
| 6 |
12367-935-000 |
PLATE, BREATHER Price: $19.06 |
| 7 |
12391-921-030 |
GASKET, CYLINDER COVER (NOT AVAILABLE) Price: Call Us |
| 8 |
13315-921-013 |
BEARING, CRANKSHAFT (STD) (NOT AVAILABLE) Price: $12.68 |
| 9 |
15611-921-000 |
SEE PART DETAILS - PRI; CAP, OIL Price: $13.88 |
| 10 |
15612-921-000 |
DIPSTICK, OIL Price: $14.28 |
| 11 |
15621-921-020 |
JOINT, OIL FILLER (NOT AVAILABLE) Price: Call Us |
| 12 |
32901-921-000 |
CLAMP Price: $5.58 |
| 13 |
37200-935-004 |
SWITCH, OIL PRESSURE Price: $41.84 |
| 14 |
37201-935-000 |
WIRE, OIL PRESSURE SWITCH Price: $15.20 |
| 15 |
37202-935-004 |
WASHER (4MM) Price: $0.90 |
| 16 |
37203-935-303 |
BOLT, ADAPTER Price: $14.48 |
| 18 |
90017-935-000 |
BOLT, HEAD (8X70) Price: $2.68 |
| 19 |
90018-935-000 |
BOLT, HEAD (8X94) Price: $5.82 |
| 20 |
90402-822-000 |
WASHER, HEAD (8MM) Price: $1.80 |
| 22 |
91206-921-000 |
OIL SEAL (16X28X6) Price: $9.00 |
| 23 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) Price: $5.00 |
| 24 |
91353-706-000 |
O-RING (9.8X2.2) (NOT AVAILABLE) Price: Call Us |
| 25 |
92000-06010-02 |
SEE PART DETAILS - PRI; BOLT, HEX. (6X10) (NOT AVAILABLE) Price: $0.70 |
| 26 |
92101-06025-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X25) This part replaces 92000-06025-02. Price: $2.86 |
| 27 |
92201-06028-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X28) This part replaces 92000-06028-02. Price: $2.90 |
| 28 |
92000-06035-02 |
BOLT, HEX. (6X35) (NOT AVAILABLE) Price: $0.83 |
| 29 |
92200-08050-0A |
BOLT, HEX. (8X50) (NOT AVAILABLE) Price: Call Us |
| 30 |
92200-08065-0A |
BOLT, HEX. (8X65) (NOT AVAILABLE) Price: $0.92 |
| 31 |
93500-04006-3J |
SCREW, PAN (4X6) Price: $1.28 |
| 32 |
93500-05008-0B |
SEE PART DETAILS - PRI; SCREW, PAN (5X8) Price: $1.54 |
| 33 |
94101-06200 |
WASHER, PLAIN (6MM) Price: $0.86 |
| 34 |
94301-08140 |
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) Price: $2.82 |
| 35 |
94301-10140 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X14) Price: $3.10 |
