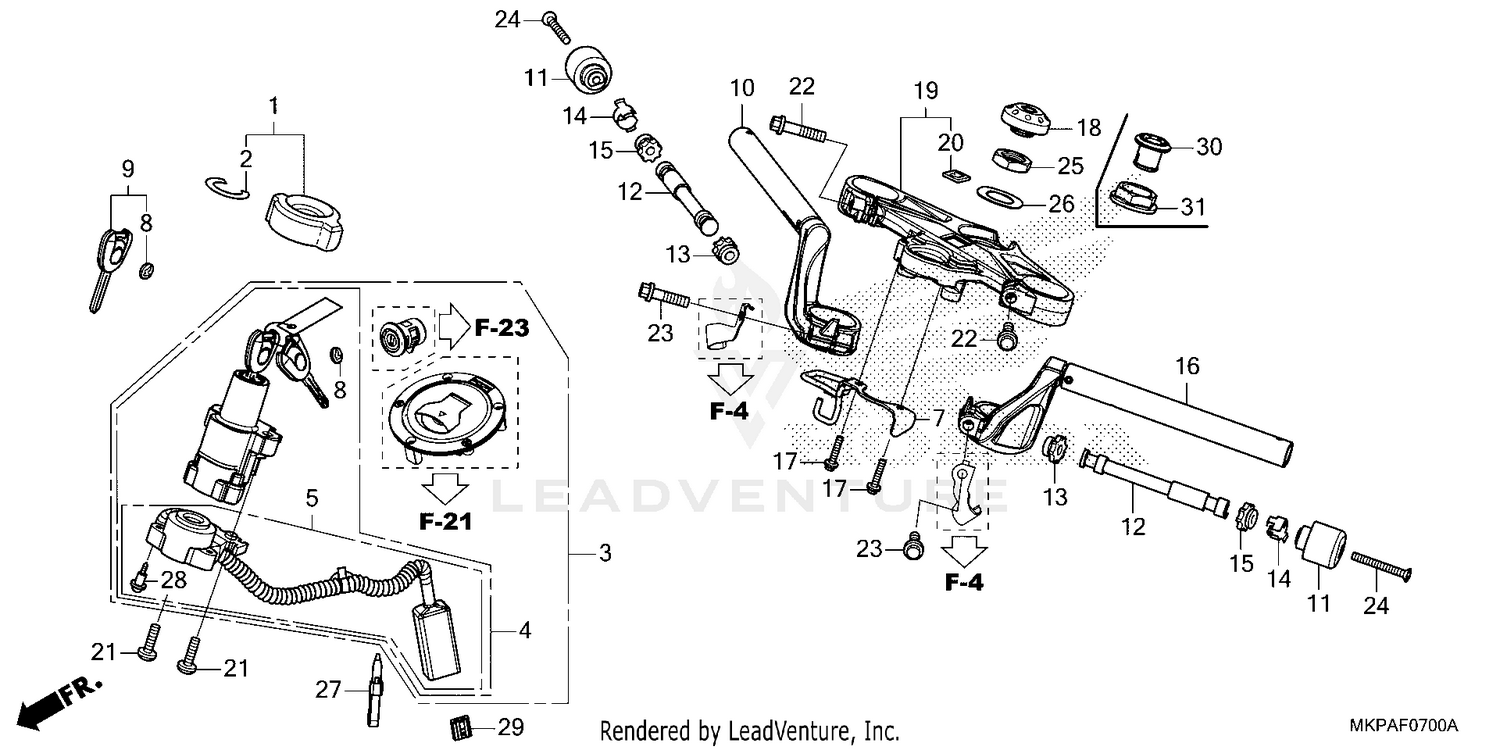

| Ref | Part Number | Description |
|---|
| 1 |
35106-MAT-A00 |
COVER, COMBINATION SWITCH Price: $12.75 |
| 2 |
30433-MBW-602 |
SEAL, IGNITION SWITCH Price: $3.24 |
| 3 |
35010-MJW-A04 |
LOCK SET This part replaces 35010-MJW-A03. Price: $265.58 |
| 4 |
35100-MJW-A02 |
SWITCH ASSY., COMBINATION & LOCK Price: $186.98 |
| 5 |
35101-MJW-D11 |
BASE, CONTACT Price: $50.20 |
| 7 |
35106-MKP-J00 |
GUIDE, CABLE Price: $14.95 |
| 10 |
53100-MKP-DN0 |
HANDLEBAR, R. Price: $74.89 |
| 11 |
53104-MGZ-J00 |
WEIGHT, HANDLEBAR Price: $12.75 |
| 12 |
53105-MGZ-J00 |
WEIGHT B, HANDLEBAR Price: $10.69 |
| 13 |
53107-KM9-000 |
RUBBER, HANDLE WEIGHT (B) Price: $4.91 |
| 14 |
53108-MJ0-000 |
RING, HANDLE WEIGHT SNAP Price: $6.45 |
| 15 |
53109-MV4-000 |
RUBBER B, HANDLE WEIGHT Price: $3.05 |
| 16 |
53150-MKP-DN0 |
HANDLEBAR, L. Price: $74.89 |
| 17 |
53192-MFL-000 |
SCREW-WASHER (5X25) Price: $2.11 |
| 19 |
53300-MKP-DN0 |
BRIDGE, FORK TOP Price: $116.33 |
| 20 |
86150-KPG-901 |
EMBLEM, PRODUCT (MARUI) Price: $4.55 |
| 21 |
90107-MBG-000 |
BOLT, ONE-WAY (8MM) Price: $3.65 |
| 22 |
90108-KZZ-900 |
BOLT, FLANGE (8X40) Price: $0.84 |
| 23 |
90112-MGZ-J00 |
BOLT, FLANGE (8X35) Price: $1.22 |
| 24 |
90191-KYJ-900 |
SCREW, OVAL (6X50) Price: $1.13 |
| 27 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 28 |
91059-KY2-711 |
SCREW, TAPPING (3X16) Price: $3.73 |
| 29 |
91554-SM4-003 |
HOLDER, BRACKET (RED) Price: $8.18 |
| 30 |
53232-K94-T00 |
CAP, STEERING NUT Price: $2.51 |
