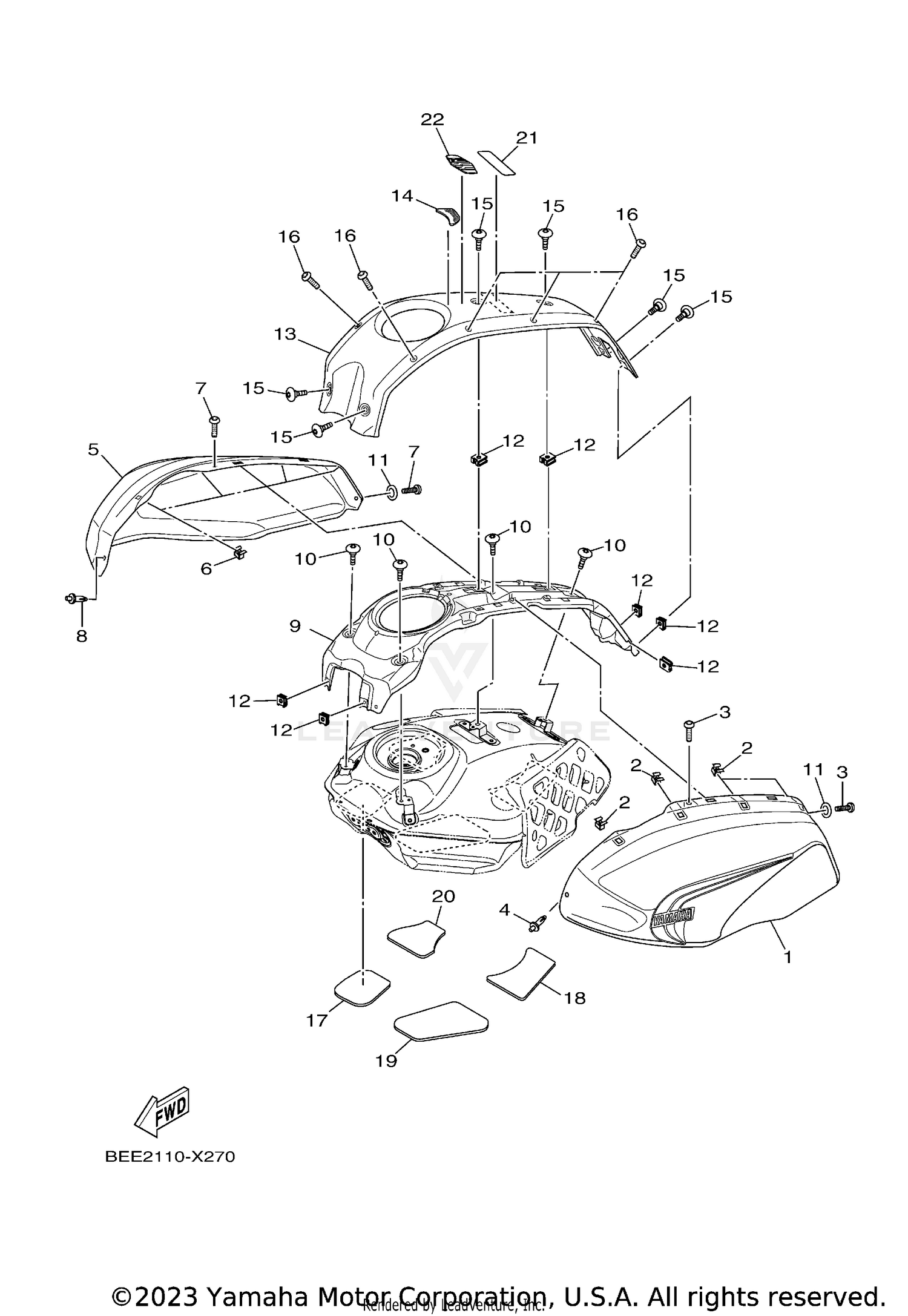

| Ref | Part Number | Description |
|---|
| 2 |
90183-05X08-00 |
NUT, SPRING Price: $33.99 |
| 3 |
90111-05012-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 4 |
90269-06008-00 |
RIVET Price: $9.49 |
| 6 |
90183-05X08-00 |
NUT, SPRING Price: $33.99 |
| 7 |
90111-05012-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 8 |
90269-06008-00 |
RIVET Price: $9.49 |
| 9 |
B34-F41B1-00-00 |
COVER, TANK Price: $91.99 |
| 10 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 11 |
90201-05725-00 |
WASHER, PLATE Price: $10.49 |
| 12 |
90183-05X04-00 |
NUT, SPRING Price: $7.49 |
| 14 |
B34-F4141-00-00 |
PROTECTOR, FUEL TANK Price: $58.99 |
| 15 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 16 |
90111-05012-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 17 |
B2G-2315H-00-00 |
PROTECTOR 1 Price: $14.49 |
| 18 |
B2G-24193-00-00 |
SEAT, TANK PROTECTOR Price: $14.49 |
| 19 |
B2G-2315J-00-00 |
PROTECTOR 2 Price: $22.99 |
| 20 |
B2G-24595-00-00 |
PROTECTOR Price: $10.49 |
| 21 |
1TP-2118K-A2-00 |
LABEL, CAUTION Price: $8.49 |
