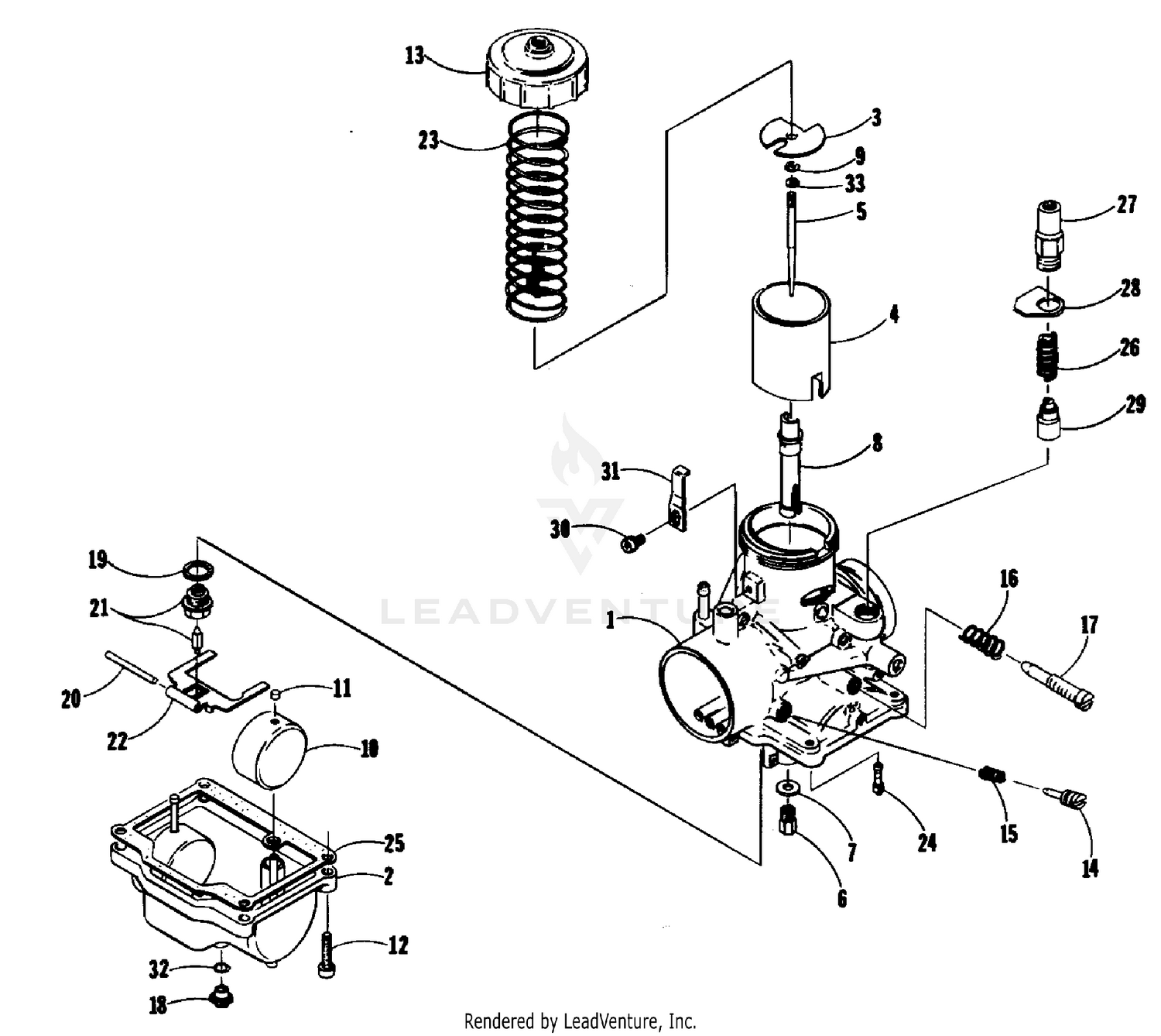

CARBURETOR [55114] — Parts Catalog

Ref	Part Number	Description
2	6505-189	Chamber, Float Price: $47.95
3	6505-001	Plate Price: $13.28
4	6505-500	Piston Valve Assembly (VM-Style) - Slide: 2.5; Carburetor Size (MM): 34 Price: $114.95
5	6505-215	Jet Needle 6DH7-3 Price: $24.20
6	6505-128	Main Jet - 300 Price: $7.23
7	6505-006	Washer Price: $1.45
8	6505-433	Needle Jet (VM-Style) - P-8 (166) Price: $43.15
9	6505-008	E-Ring Price: $4.35
10	6505-009	Float Price: $31.95
11	6505-010	Cap Price: $1.80
12	6505-014	Screw, Machine Price: $1.80
13	6505-018	Top, Mixing Body Price: $68.95
14	6505-019	Screw, Pilot Air Price: $13.28
15	6505-020	Spring, Pilot Air Screw Price: $3.75
16	6505-021	Spring, Throttle Stop Screw Price: $3.75
17	6505-022	Screw, Throttle Stop Price: $16.92
18	6505-184	Screw, Drain Price: $16.92
19	6505-024	Washer Price: $1.45
20	6505-153	Pin Price: $3.38
21	6505-160	Needle Valve Assembly 1.5 Price: $53.95
22	6505-027	Arm, Float Price: $15.71
23	6505-242	Spring, Piston Valve - Carburetor Price: $21.77
24	6505-503	Pilot Jet - 27.5 Price: $5.19
25	6505-030	Gasket, Float Chamber Price: $14.49
26	6505-033	Spring, Starter Plunger Price: $19.35
27	6505-188	Cap, Starter Plunger Price: $18.13
28	6505-187	Washer Price: $2.66
29	6505-035	Plunger, Starter Price: $19.35
30	6505-036	Screw, Machine Price: $1.45
31	6505-186	Plate, Retaining Price: $5.34
32	6505-243	O-Ring, Drain Plug Price: $5.34
