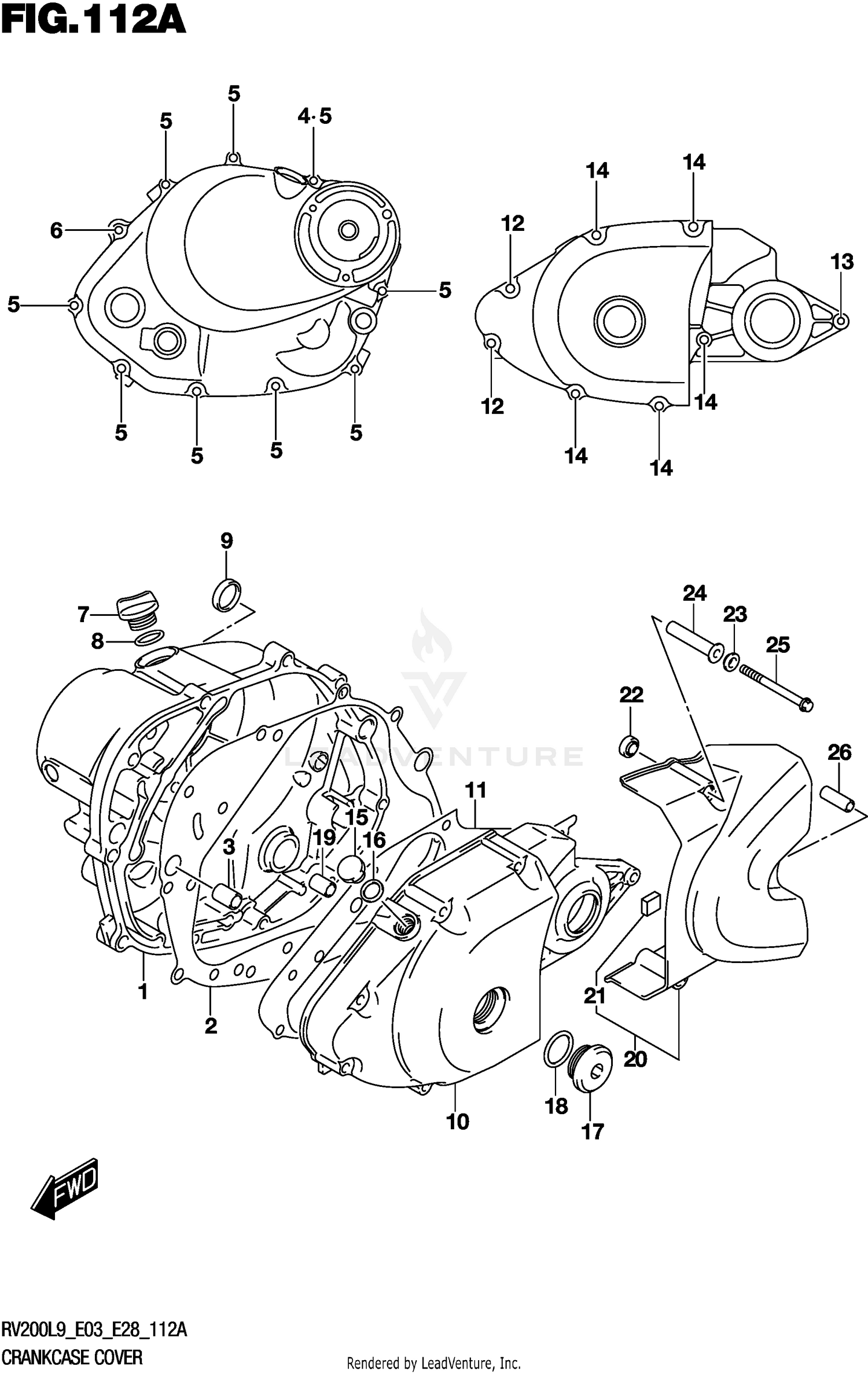

CRANKCASE COVER
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11340-42A70 | COVER, CLUTCH Price: $171.93 |
| 3 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 4 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 5 | 01547-0630A | BOLT Price: $2.79 |
| 7 | 11971-25D00 | PLUG, ENGINE OIL FILLER Price: $6.31 |
| 8 | 09280-17003 | O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 9 | 11342-12C51 | PLUG,CLUTCH COVER KICK Price: $11.51 |
| 10 | 11351-13G10 | COVER, MAGNETO Price: $163.78 |
| 12 | 01547-0640A | BOLT Price: $2.79 |
| 14 | 01547-0650A | BOLT Price: $2.83 |
| 15 | 09247-12104 | PLUG (12X9) Price: $3.28 |
| 16 | 09168-12002 | GASKET (12.1X16.2X3.7) Price: $1.92 |
| 17 | 09259-26011 | PLUG (26X9) Price: $13.44 |
| 18 | 09280-22008 | O-RING (D:3.1,ID:22.7) Price: $2.37 |
| 19 | 04211-09129 | PIN Price: $1.99 |
| 20 | 11361-13G20 | COVER, ENGINE SPROCKET Price: $59.38 |
| 22 | 09161-09005 | WASHER (8.7X16X5) Price: $2.72 |
| 23 | 09161-09006 | WASHER (8.7X15X2.1) Price: $2.75 |
| 24 | 09180-06321 | SPACER (6.5X9X47.1) Price: $6.80 |
