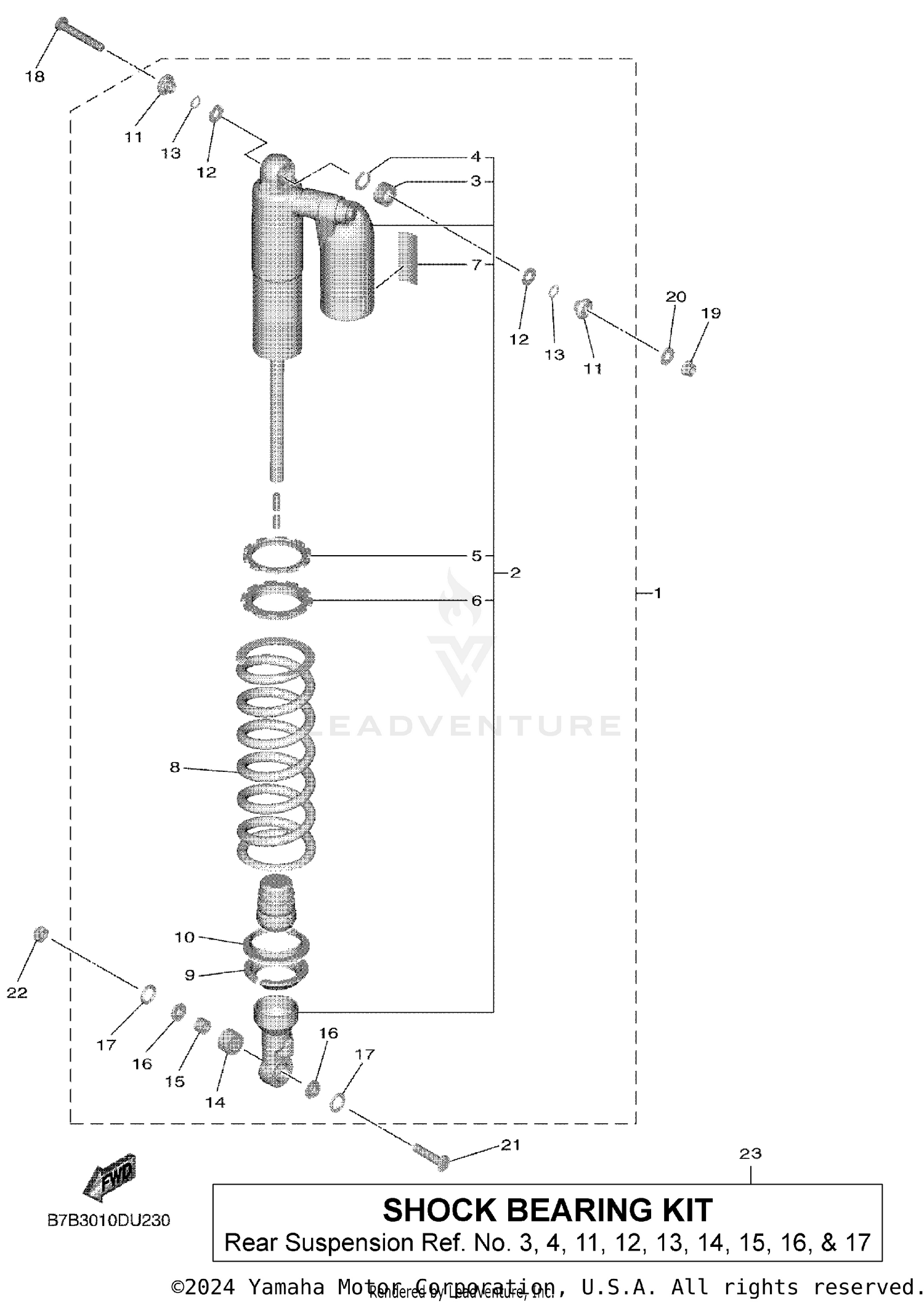

REAR SUSPENSION
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | B7B-22201-00-00 | DAMPER SUB ASSY Price: $957.99 |
| 5 | 33D-22234-00-00 | GUIDE, SPRING 3 Price: $44.99 |
| 6 | 1SL-22213-00-00 | SEAT, SPRING UPPER Price: $18.99 |
| 7 | 4AA-22259-80-00 | LABEL, WARNING Price: $14.49 |
| 9 | 33D-22214-00-00 | GUIDE, SPRING 1 Price: $62.99 |
| 10 | 33D-22224-00-00 | GUIDE, SPRING 2 Price: $25.99 |
| 18 | 5XE-22242-01-00 | BOLT 2 Price: $7.49 |
| 19 | 95602-10200-00 | NUT, S/L FLANGE Price: $2.70 |
| 20 | 92990-10200-00 | WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 21 | 5NY-22241-00-00 | BOLT 1 Price: $12.99 |
| 22 | 90185-10012-00 | NUT, SELF-LOCKING Price: $3.60 |
