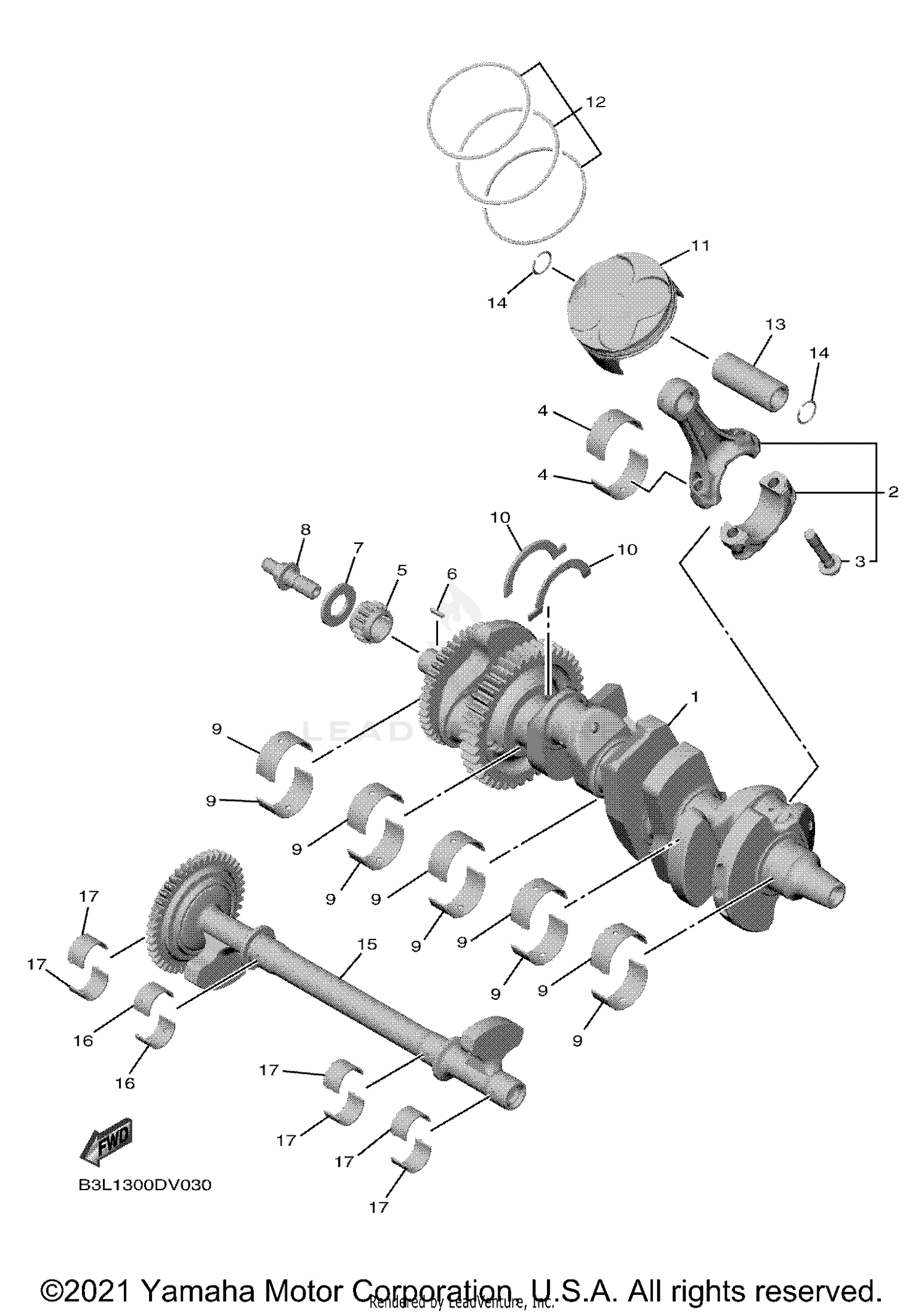

CRANKSHAFT & PISTON
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B3L-11400-00-00 | CRANKSHAFT ASSY Price: $1,202.99 |
| 2 | 2CR-11650-00-00 | CONNECTING ROD ASSY Price: $741.99 |
| 3 | 2CR-11654-00-00 | BOLT, CONNECTING ROD Price: $8.49 |
| 5 | 2CR-11549-00-00 | SPROCKET, CAM CHAIN Price: $50.99 |
| 6 | 90282-03012-00 | KEY, STRAIGHT Price: $14.49 |
| 7 | 90201-13021-00 | WASHER, PLATE Price: $3.90 |
| 8 | 2CR-12157-00-00 | BOLT Price: $21.99 |
| 10 | BW8-11426-00-00 | BEARING, THRUST 1 Price: $16.49 |
| 11 | 2CR-11631-10-00 | PISTON (STD) Price: $150.99 |
| 12 | 2CR-11603-11-00 | PISTON RING SET (STD) This part replaces 2CR-11603-10-00. Price: $72.99 |
| 13 | 2CR-11633-00-00 | PIN, PISTON Price: $70.99 |
| 14 | 93450-18169-00 | CIRCLIP Price: $1.15 |
| 15 | 2CR-11500-00-00 | BALANCER ASSY This part replaces 2CR-11500-01-00. Price: $467.99 |
