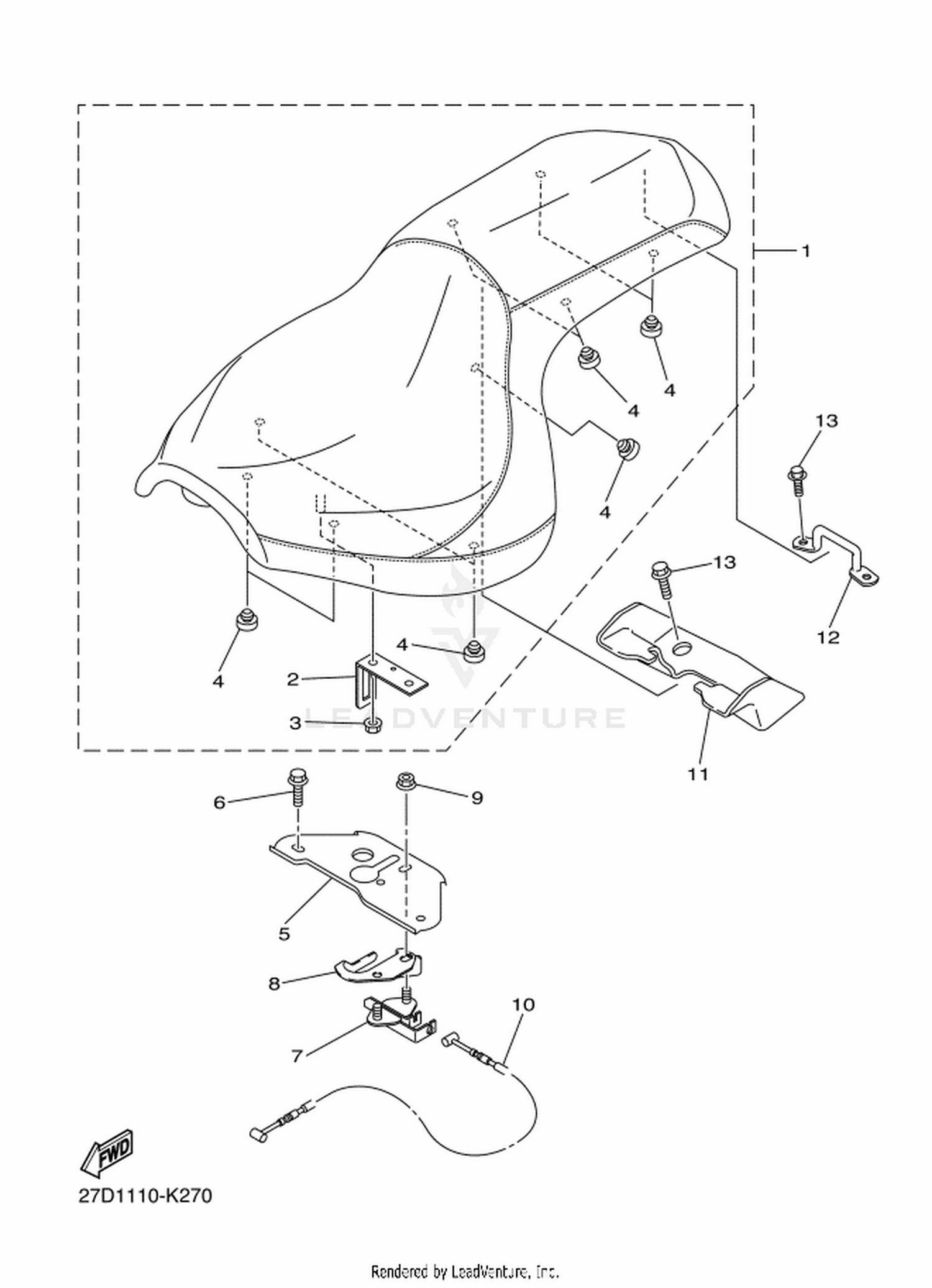

27 SEAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 27D-24730-00 | DOUBLE SEAT ASSY Price: Call Us |
| 3 | 95602-06200 | NUT, SELF-LOCKING Price: Call Us |
| 4 | 22W-24741-00 | PAD, SEAT Price: Call Us |
| 5 | 3D8-21341-10 | BRACKET, SEAT 1 Price: Call Us |
| 6 | 95802-06012 | BOLT, FLANGE Price: Call Us |
| 7 | 4BP-24780-00 | SEAT LOCK ASSY Price: Call Us |
| 8 | 27D-24792-00 | PLATE Price: Call Us |
| 9 | 95702-06500 | NUT, WITH WASHER Price: Call Us |
| 10 | 5PX-2478E-00 | CABLE, SEAT LOCK Price: Call Us |
| 11 | 27D-2475N-00 | BRACKET Price: Call Us |
| 12 | 1D7-2475R-00 | BRACKET 6 Price: Call Us |
