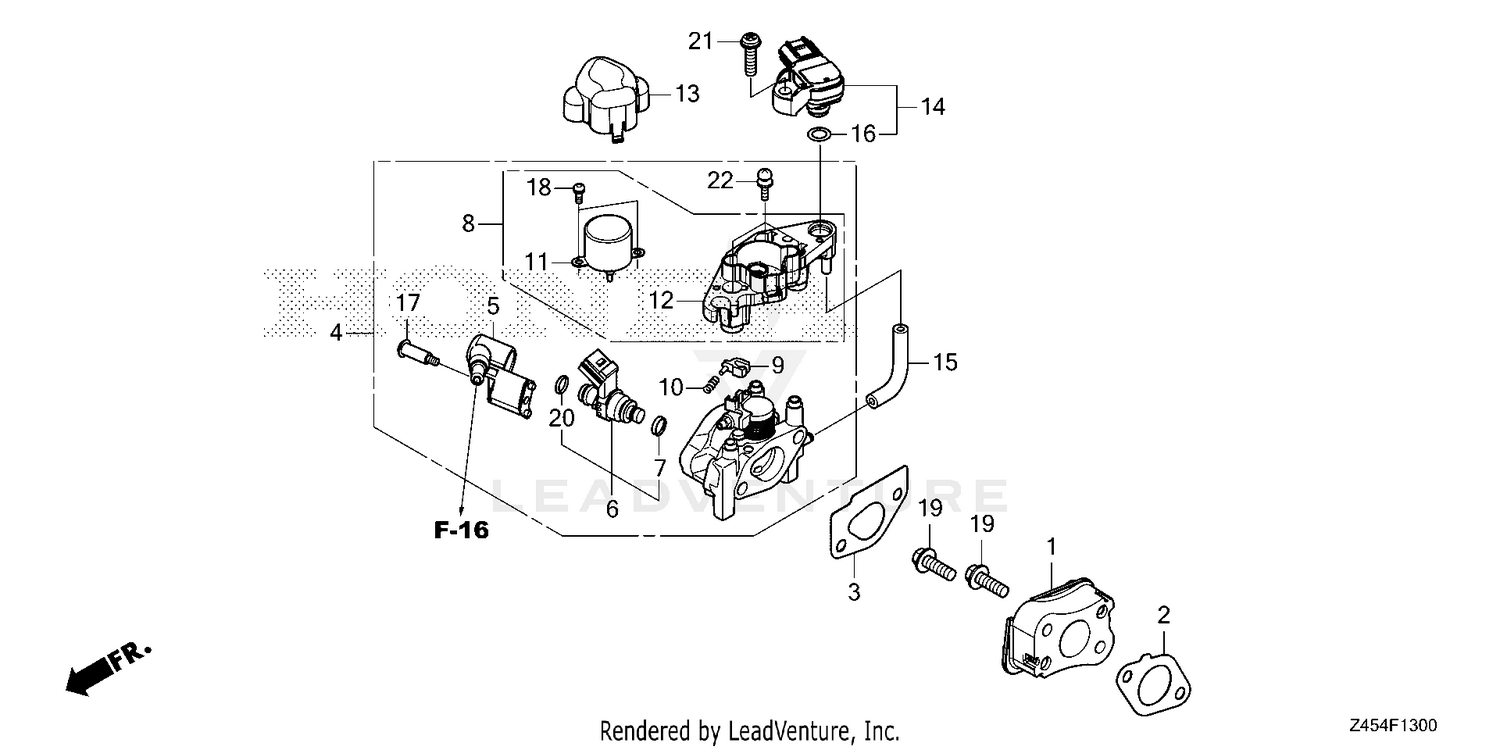

| Ref | Part Number | Description |
|---|
| 1 |
16210-ZDY-000 |
INSULATOR COMP Price: $17.88 |
| 2 |
16212-ZDY-003 |
GASKET, INSULATOR Price: $2.74 |
| 3 |
16221-ZDY-003 |
GSKT, THROTTLE BODY Price: $2.74 |
| 4 |
16400-ZDY-003 |
BODY ASSY., THROTTLE Price: $227.44 |
| 5 |
16422-ZDY-003 |
JOINT, INJECTOR Price: $11.26 |
| 6 |
16450-K80-H01 |
INJECTOR ASSY., FUEL Price: $117.18 |
| 7 |
16472-KPC-D50 |
RING, SEAL Price: $2.82 |
| 8 |
36160-ZDY-003 |
MOTOR ASSY. Price: $95.24 |
| 9 |
36161-ZL0-D31 |
LEVER, LINK (CARBURETOR NO.) Price: $14.30 |
| 10 |
36162-ZL0-D31 |
SPRING, COMPRESSION COIL (CARBURETOR NO.) Price: $6.88 |
| 11 |
36165-ZF6-F41 |
MOTOR, THROTTLE CONTROL Price: $100.32 |
| 12 |
36166-ZDY-003 |
BRKT, THROTTLE MOTOR Price: $15.40 |
| 13 |
36168-Z39-C90 |
COVER, THROTTLE MOTOR Price: $1.02 |
| 14 |
37830-6Y0-J01 |
SENSOR ASSY., MAP Price: $426.92 |
| 15 |
37833-ZDY-000 |
TUBE, MAP SENSOR Price: $2.92 |
| 16 |
37835-PGK-A01 |
O-RING Price: $11.78 |
| 17 |
90001-ZDY-003 |
SCREW, SHOULDER Price: $2.32 |
| 18 |
90003-ZL0-D30 |
SCREW-WASHER (3X8) Price: $2.36 |
| 19 |
90004-GHB-640 |
BOLT, FLANGE (6X18) (NSHF) Price: $3.68 |
| 20 |
91301-KZL-931 |
O-RING (6.3X2.2) Price: $13.64 |
| 21 |
93891-05020-08 |
SCREW-WASHER (5X20) Price: $1.44 |
