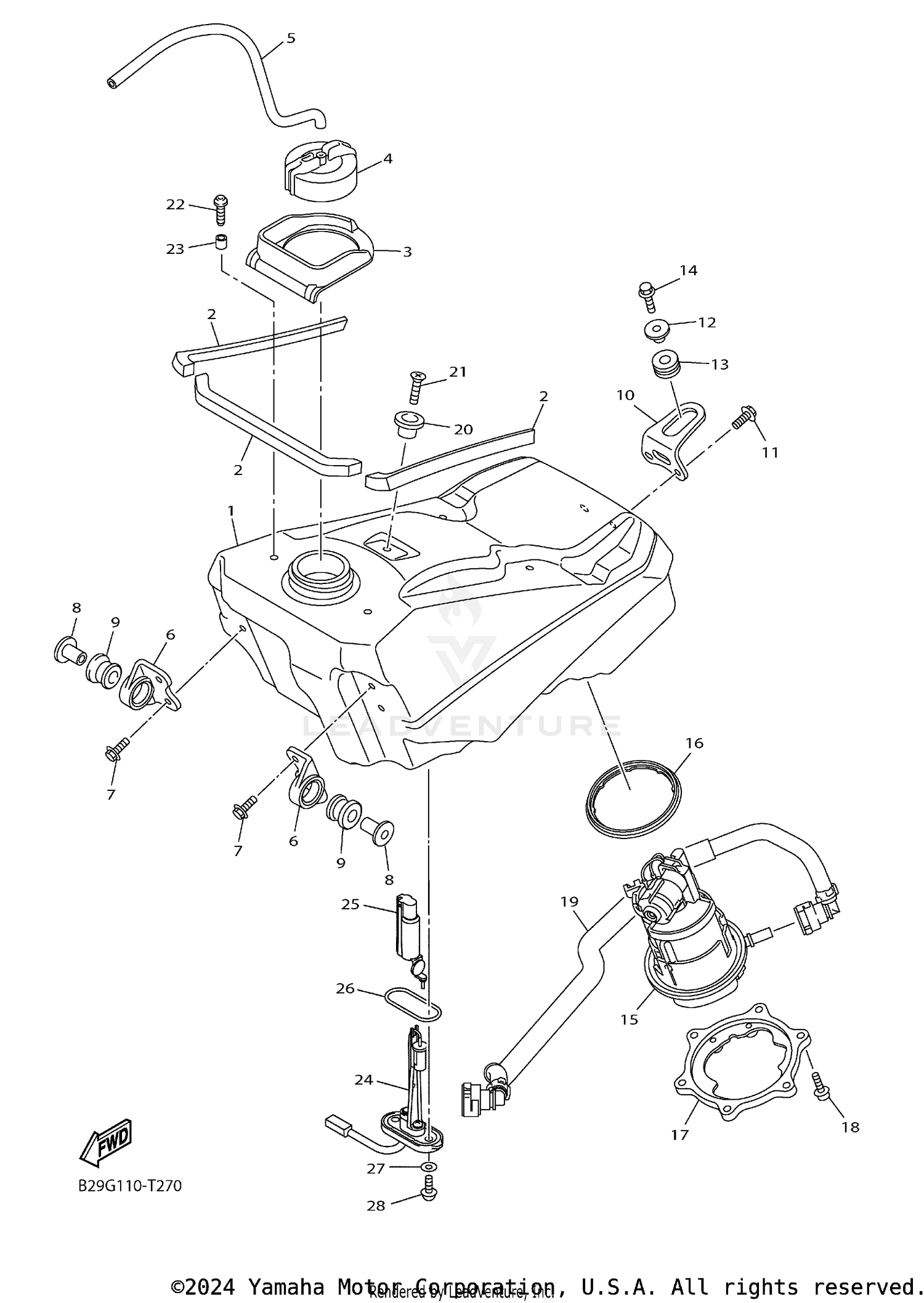

| Ref | Part Number | Description |
|---|
| 1 |
2GB-24110-10-00 |
FUEL TANK COMP. Price: $394.99 |
| 2 |
1S4-2414J-00-00 |
DAMPER, PLATE 2 Price: $3.10 |
| 3 |
1SL-24188-00-00 |
MOLD, FUEL TANK Price: $37.99 |
| 4 |
1SL-24610-01-00 |
CAP ASSY Price: $69.99 |
| 5 |
90445-098B3-00 |
HOSE (L580) This part replaces 90445-09008-00. Price: $13.49 |
| 6 |
1SL-24115-00-00 |
STAY, FUEL TANK 1 Price: $24.99 |
| 7 |
90105-06170-00 |
BOLT, FLANGE Price: $5.49 |
| 8 |
90387-06091-00 |
COLLAR Price: $9.49 |
| 9 |
90480-18549-00 |
GROMMET Price: $11.49 |
| 10 |
1SL-2419A-00-00 |
HOLDER Price: $5.99 |
| 11 |
90105-06170-00 |
BOLT, FLANGE Price: $5.49 |
| 12 |
90387-066Y6-00 |
COLLAR Price: $10.49 |
| 13 |
90480-10289-00 |
GROMMET Price: $9.49 |
| 14 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 15 |
33D-13907-02-00 |
FUEL PUMP COMP. This part replaces 33D-13907-01-00. Price: $580.99 |
| 16 |
33D-24486-00-00 |
O-RING Price: $35.99 |
| 17 |
33D-24491-00-00 |
BRACKET, FUEL PUMP Price: $78.99 |
| 18 |
90110-05058-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 19 |
1SM-13971-03-00 |
PIPE, FUEL 1 This part replaces 1SM-13971-01-00. Price: $97.99 |
| 20 |
4EW-2412F-00-00 |
BRACKET, SEAT Price: $15.49 |
| 21 |
90151-06005-00 |
SCREW, COUNTERSUNK Price: $10.49 |
| 22 |
90111-06171-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.35 |
| 23 |
90387-06284-00 |
COLLAR Price: $6.49 |
| 24 |
2GB-85752-01-00 |
SENDER UNIT ASSY, FUEL METER This part replaces 2GB-85752-00-00. Price: $172.99 |
| 25 |
1DX-24474-00-00 |
COVER Price: $15.49 |
| 26 |
1DX-85753-00-00 |
GASKET, SENDER UNIT Price: $11.99 |
| 27 |
90202-05187-00 |
WASHER, PLATE This part replaces 90202-05193-00. Price: $1.70 |
