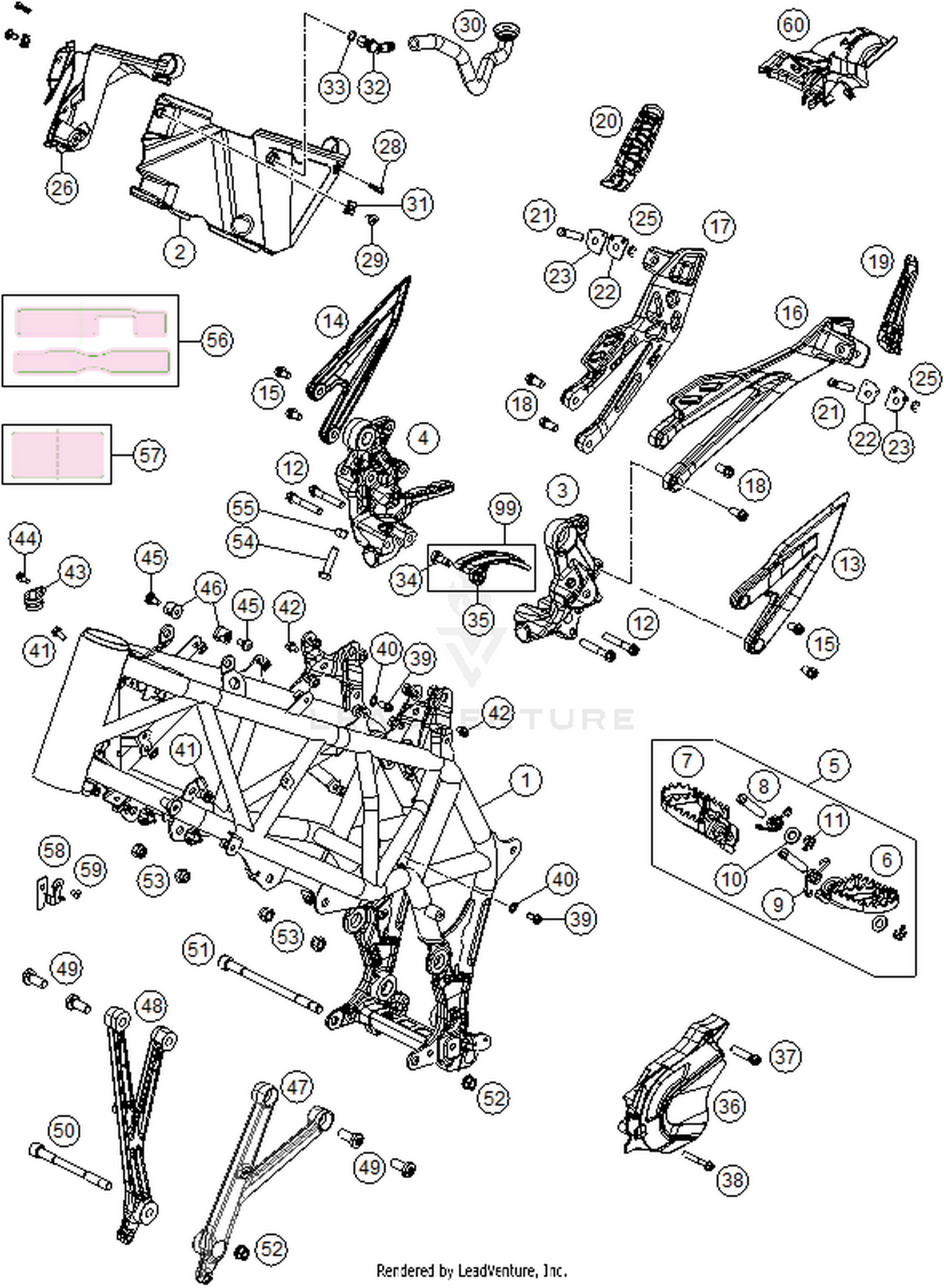

03 FRAME
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A60603001000EB | Frame Price: Call Us |
| 2 | A60603085000 | Frame cover left Price: Call Us |
| 3 | 7690303804401 | Front footpeg bracket left cmp Price: Call Us |
| 4 | 7690303904401 | Footpeg bracket right cmpl. Price: Call Us |
| 5 | 78003040033 | FOOTREST L/S + R/S CPL. 09 Price: Call Us |
| 6 | 78003040050 | FOOTREST L/S 08 Price: Call Us |
| 7 | 78003041050 | FOOTREST R/S 08 Price: Call Us |
| 8 | 54803044000 | PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 9 | 54603041000 | FOOTREST SPRING L/S R/S Price: Call Us |
| 11 | 0094032250 | PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: Call Us |
| 12 | 0025080456 | HH collar screw M8x45 TX40 Price: Call Us |
| 13 | 76903038050 | Heel protector, left Price: Call Us |
| 14 | 76903039050 | Heel protector, right Price: Call Us |
| 15 | 0025080126 | HH collar screw M8x12 TX40 Price: Call Us |
| 16 | A6060304800001 | Passenger footpeg bracket rlef Price: Call Us |
| 17 | A6060304900001 | Passenger footpeg bracket righ Price: Call Us |
| 18 | 0025080166 | HH COLLAR SCREW M8X16 TX40 Price: Call Us |
| 19 | 60003050000 | FOOTREST CPL. L/S REAR 03 Price: Call Us |
| 20 | 60003051000 | Footrest cmpl. r/s rear 03 Price: Call Us |
| 21 | 60003044000 | BOLT FOR FOOTREST REAR 03 Price: Call Us |
| 22 | 60003152000 | ENGAGE PANEL FOOTREST L/S 03 Price: Call Us |
| 23 | 60003052000 | ENGAGE PANEL FOOTREST R/S 03 Price: Call Us |
| 26 | A60603086000 | Frame cover right Price: Call Us |
| 28 | 0081250181 | SCREW FOR PLASTIC 50X18 T20 Price: Call Us |
| 32 | 60038082000 | ANGLE CONNECTOR LC8 03 Price: Call Us |
| 33 | 0770080020 | O-RING 8X2 SILICONE Price: Call Us |
| 34 | 0035080206S | SHCS M8x20 TX45 Price: Call Us |
| 35 | 76504067000 | CHAIN SLID. GUARD 08 Price: Call Us |
| 36 | A60603096000 | Front sprocket cover Price: Call Us |
| 37 | 0025080356 | HH collar screw M8x35 TX40 Price: Call Us |
| 38 | 0025060406 | HH collar screw M6x40 TX30 Price: Call Us |
| 39 | 0025060126 | HH collar screw M6x12 TX30 Price: Call Us |
| 40 | 58411098100 | CONTACT WASHER M6 VSV-K6 Price: Call Us |
| 41 | 0024060106 | HH COLLAR SCREW M6X10 TX30 Price: Call Us |
| 42 | 0025060086 | HH collar screw M6x8 TX30 Price: Call Us |
| 43 | 49007439000 | CLAMP RSGU 15/12 Price: Call Us |
| 44 | 0025050126 | HH collar screw M5x12 TX30 Price: Call Us |
| 46 | 76907026000 | Seat holder Price: Call Us |
| 47 | A60603005000C1 | Engine brace left Price: Call Us |
| 48 | A60603006000C1 | Engine brace right Price: Call Us |
| 49 | 0035100249 | AH collar screw M10x24 ISA45 Price: Call Us |
| 50 | 0900001012000S | Engine bracket screw M10x120-1 Price: Call Us |
| 51 | 0900001015200S | Engine bracket screw M10x152-1 Price: Call Us |
| 52 | 55530044000 | Collar nut M10-SW13 ZnNi This part replaces 54630044000. Price: Call Us |
| 53 | 54310086100 | SELF LOCKING NUT M10 CU WS=14 Price: Call Us |
| 54 | 0933050203 | HH SCREW DIN933 M5x20 Price: Call Us |
| 55 | 0934050003 | HEXAGON NUT DIN0934-M 5 Price: Call Us |
| 56 | A60603094000 | Frame Protection sticker set Price: Call Us |
| 57 | A40007012000 | Protective film trans. 80x40mm Price: Call Us |
| 59 | 0738050082 | Flat Head Screw ISO7380 M5x8 A Price: Call Us |
| 60 | A60603001085 | Cover shock absorber support Price: Call Us |
