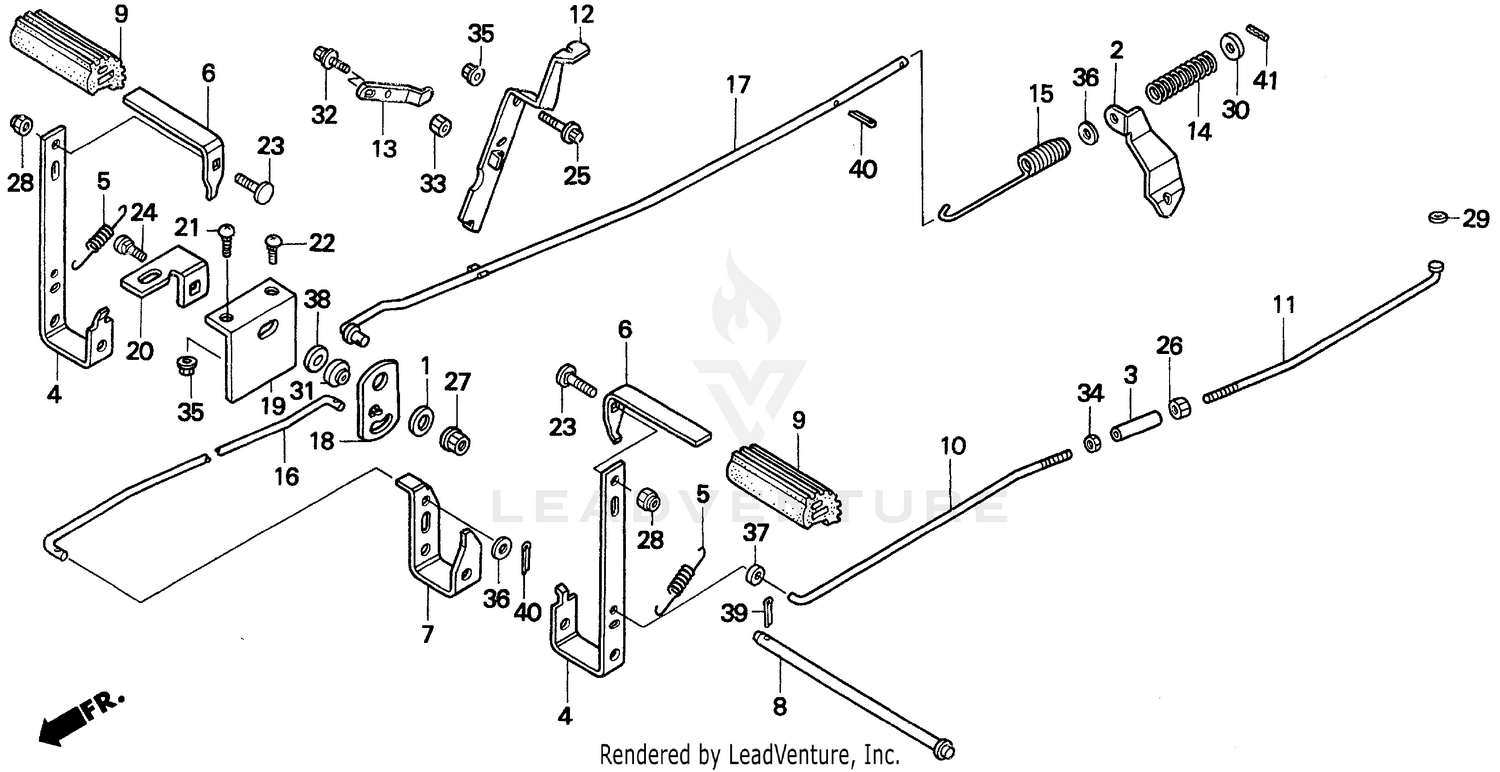

| Ref | Part Number | Description |
|---|
| 1 |
40213-041-730 |
WASHER (42X8.5) Price: $15.14 |
| 2 |
43411-772-003 |
ARM, RR. BRAKE Price: $15.18 |
| 3 |
43453-752-000 |
JOINT (8MM) Price: $11.12 |
| 4 |
46511-772-000 |
PEDAL, BRAKE/CLUTCH Price: $21.48 |
| 5 |
46514-772-000 |
SPRING, BRAKE PEDAL Price: $3.20 |
| 6 |
46515-772-000 |
BRACKET, BRAKE/CLUTCH Price: $4.50 |
| 7 |
46516-772-010 |
ARM, BRAKE Price: $11.66 |
| 8 |
46517-772-000 |
SHAFT, PEDAL Price: $10.02 |
| 9 |
46545-772-000 |
RUBBER, PEDAL Price: $12.43 |
| 10 |
46931-772-030 |
SEE PART DETAILS - PRI; ROD A, CLUTCH Price: $19.60 |
| 11 |
46932-772-020 |
SEE PART DETAILS - PRI; ROD B, CLUTCH Price: $10.26 |
| 12 |
47110-772-000 |
LEVER, PARKING BRAKE Price: $27.52 |
| 13 |
47135-772-010 |
SEE PART DETAILS - PRI; SPRING, PARKING BRAKE LEVER Price: $2.12 |
| 14 |
47251-772-000 |
SPRING, BRAKE LOAD Price: $1.78 |
| 15 |
47255-772-010 |
SPRING, BRAKE DAMPER Price: $3.44 |
| 16 |
47261-772-010 |
ROD, RR. BRAKE Price: $13.24 |
| 17 |
47265-772-010 |
ROD B, RR. BRAKE Price: $40.20 |
| 18 |
47277-772-010 |
ARM, BRAKE MIDDLE Price: $2.20 |
| 19 |
47278-772-000 |
BRACKET, BRAKE MIDDLE Price: $3.62 |
| 20 |
47279-772-000 |
PLATE, BRAKE MIDDLE ARM Price: $3.54 |
| 21 |
90101-750-920 |
BOLT, SPECIAL (8X20) Price: $3.04 |
| 22 |
90101-963-000 |
BOLT, SPECIAL (9X15) Price: $4.20 |
| 23 |
90105-750-000 |
BOLT, SPECIAL (8X27) Price: $4.46 |
| 24 |
90105-750-640 |
BOLT, SPECIAL (8X37) Price: $5.26 |
| 25 |
90110-751-000 |
BOLT, ADJUSTING ARM Price: $5.16 |
| 26 |
90201-750-000 |
NUT, HEX. (8MM) Price: $3.62 |
| 27 |
90309-GE2-000 |
NUT, FLANGE (8MM) Price: $5.18 |
| 28 |
90309-MR1-770 |
NUT, FLANGE (8MM) Price: $4.30 |
| 29 |
90524-030-000 |
SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING Price: $1.74 |
| 30 |
90505-772-000 |
WASHER, PLAIN (0.63) Price: $0.74 |
| 31 |
91554-772-000 |
COLLAR, TENSION ARM Price: $11.24 |
| 32 |
93404-05012-08 |
BOLT-WASHER (5X12) Price: $2.02 |
| 33 |
94001-05000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (5MM) Price: $3.34 |
| 34 |
94001-08000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338). Price: $1.64 |
| 35 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 36 |
94101-10800 |
WASHER, PLAIN (10MM) (Honda Code 0562199). Price: $2.36 |
| 37 |
94102-08800 |
WASHER, PLAIN (8MM) (Honda Code 0562215). Price: $1.18 |
| 38 |
94103-08800 |
WASHER, PLAIN (8MM) Price: $1.18 |
| 39 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.30 |
| 40 |
94201-40220 |
PIN, SPLIT (4.0X22) Price: $1.08 |
