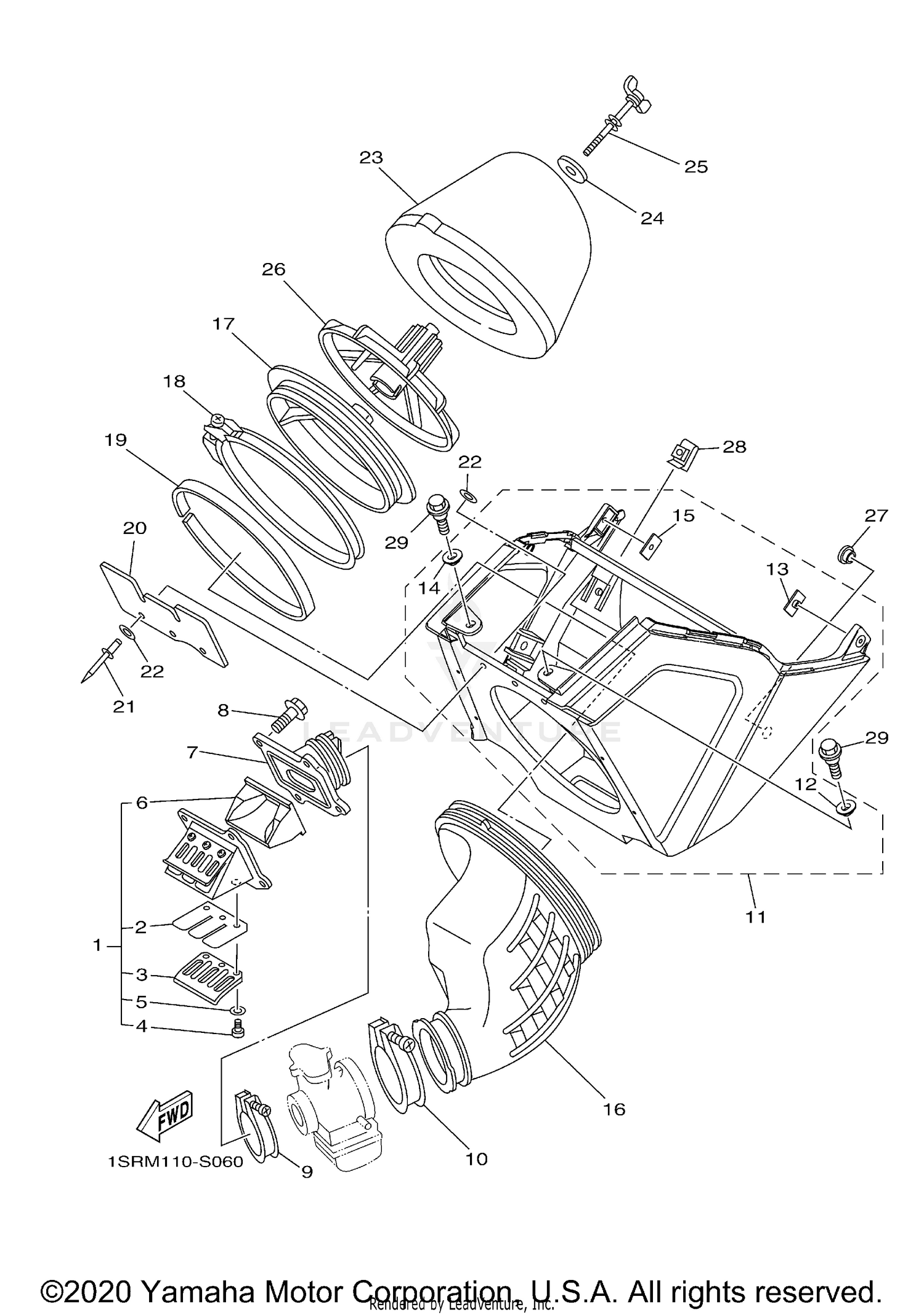

| Ref | Part Number | Description |
|---|
| 1 |
1C3-13610-20-00 |
REED VALVE ASSY Price: $341.99 |
| 2 |
5UN-13613-00-00 |
REED, VALVE Price: $125.99 |
| 3 |
5MV-13616-10-00 |
STOPPER, REED VALVE Price: $8.49 |
| 4 |
98580-03006-00 |
SCREW, PAN HEAD This part replaces 98502-03006-00. Price: $10.49 |
| 5 |
92990-03100-00 |
WASHER, SPRING This part replaces 92902-03100-00. Price: $9.49 |
| 6 |
1C3-13625-10-00 |
SPACER, REED VALVE Price: $50.99 |
| 7 |
1C3-13565-00-00 |
JOINT, CARBURETOR Price: $77.99 |
| 8 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 9 |
90450-54007-00 |
HOSE CLAMP ASSY Price: $16.49 |
| 10 |
90450-70002-00 |
HOSE CLAMP ASSY Price: $24.99 |
| 11 |
1SS-14401-00-00 |
AIR CLEANER CASE ASSY Price: $211.99 |
| 12 |
17D-14449-00-00 |
COLLAR Price: $8.49 |
| 13 |
5XE-21635-10-00 |
NUT, REAR FENDER Price: $14.49 |
| 14 |
17D-14449-00-00 |
COLLAR Price: $8.49 |
| 15 |
5XE-21635-10-00 |
NUT, REAR FENDER Price: $14.49 |
| 16 |
1C3-14453-11-00 |
JOINT, AIR CLEANER 1 This part replaces 1C3-14453-10-00. Price: $73.99 |
| 17 |
5NY-14459-00-00 |
HOLDER, GUIDE Price: $41.99 |
| 18 |
5NY-14455-20-00 |
BAND Price: $44.99 |
| 19 |
5NY-14442-00-00 |
SPACER Price: $25.99 |
| 20 |
5NY-14417-01-00 |
COVER 1 This part replaces 5NY-14417-00-00. Price: $16.49 |
| 21 |
90267-32070-00 |
RIVET, BLIND Price: $4.35 |
| 22 |
90201-03313-00 |
WASHER, PLATE Price: $10.49 |
| 23 |
4XM-14451-01-00 |
ELEMENT, AIR CLEANER This part replaces 4XM-14451-00-00. Price: $41.99 |
| 24 |
90209-06096-00 |
WASHER Price: $10.49 |
| 25 |
90122-06005-00 |
BOLT, WING Price: $13.49 |
| 26 |
3JD-14458-01-00 |
GUIDE Price: $76.99 |
| 27 |
90480-10M28-00 |
GROMMET Price: $3.55 |
| 28 |
90183-06023-00 |
NUT, SPRING Price: $10.49 |
