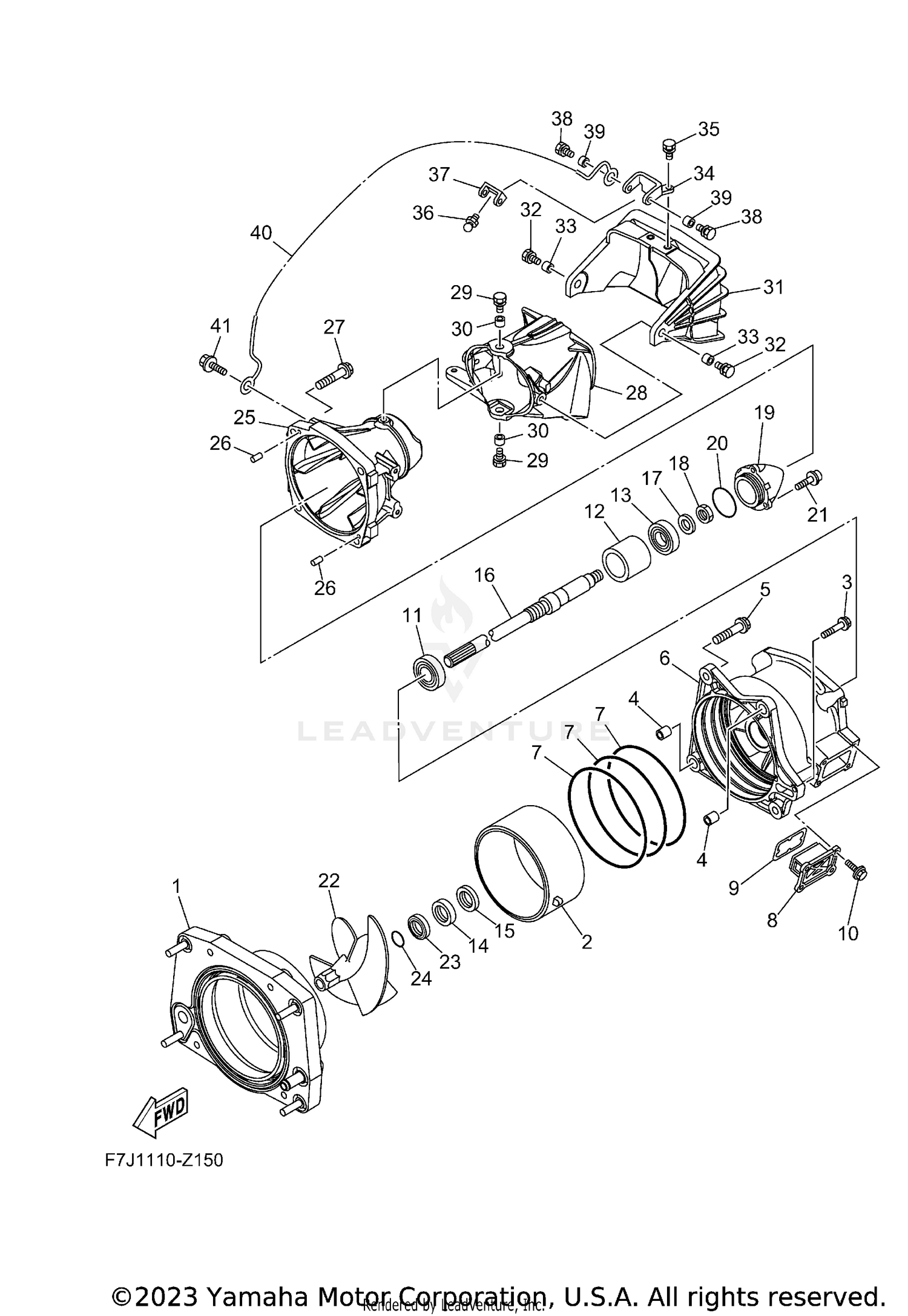

| Ref | Part Number | Description |
|---|
| 1 |
6AP-G5831-11-00 |
PLATE, TRANSOM Price: $221.99 |
| 2 |
6HH-R1337-00-00 |
SLEEVE, IMPELLER Price: $141.99 |
| 3 |
90119-06894-00 |
BOLT, WITH WASHER This part replaces 90119-06893-00. Price: $1.99 |
| 4 |
99590-14016-00 |
PIN, DOWEL Price: $4.60 |
| 5 |
90119-10811-00 |
BOLT,WITH WASHER This part replaces 90119-10810-00. Price: $1.99 |
| 6 |
6FU-R1312-10-00 |
HOUSING, IMPELLER Price: $284.99 |
| 8 |
6GN-G6882-00-00 |
FILTER Price: $15.99 |
| 9 |
66V-42414-00-00 |
O-RING Price: $6.99 |
| 10 |
90119-06890-00 |
BOLT,WITH WASHER This part replaces 90119-06889-00. Price: $2.99 |
| 11 |
93306-206Y7-00 |
BEARING Price: $20.99 |
| 12 |
6CS-G5538-00-00 |
SPACER 1 Price: $46.99 |
| 13 |
93306-355Y0-00 |
BEARING Price: $25.99 |
| 14 |
93102-31009-00 |
OIL SEAL Price: $80.49 |
| 15 |
93101-31001-00 |
OIL SEAL Price: $32.99 |
| 16 |
6S5-G5511-00-00 |
SHAFT, DRIVE Price: $352.99 |
| 17 |
92990-20600-00 |
WASHER Price: $5.49 |
| 18 |
95312-20700-00 |
NUT (98812-20300) Price: $13.99 |
| 19 |
6FU-R1326-00-00 |
CAP Price: $26.99 |
| 20 |
93210-54010-00 |
O-RING Price: $2.99 |
| 21 |
90110-06823-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06822-00. Price: $6.99 |
| 22 |
6MF-R1321-01-00 |
IMPELLER Price: $300.99 |
| 23 |
6BH-R1348-00-00 |
SPACER Price: $33.99 |
| 24 |
93210-30611-00 |
O-RING Price: $14.49 |
| 25 |
6AP-R1318-10-00 |
NOZZLE Price: $133.99 |
| 26 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 27 |
90119-10811-00 |
BOLT,WITH WASHER This part replaces 90119-10810-00. Price: $1.99 |
| 28 |
6HH-R1313-00-00 |
NOZZLE, DEFLECTOR Price: $234.99 |
| 29 |
90119-08852-00 |
BOLT,WITH WASHER This part replaces 90119-08851-00. Price: $8.99 |
| 30 |
90387-08M08-00 |
COLLAR Price: $14.99 |
| 31 |
6FY-R1314-00-00 |
GATE, REVERSE Price: $48.99 |
| 32 |
90119-08854-00 |
BOLT,WITH WASHER This part replaces 90119-08853-00. Price: $11.99 |
| 33 |
90387-08M30-00 |
COLLAR Price: $9.99 |
| 34 |
6FY-G4121-00-00 |
LEVER, SHIFT ROD Price: $13.99 |
| 35 |
90119-068D1-00 |
BOLT, WITH WASHER Price: $5.99 |
| 36 |
6R8-G2316-00-00 |
BOLT, JOINT Price: $5.99 |
| 37 |
6R8-G4125-00-00 |
LEVER, SHIFT ROD Price: $8.99 |
| 38 |
97E95-06512-00 |
BOLT, HEXAGON W/W This part replaces 90119-068C9-00. Price: $2.05 |
| 39 |
90387-06M24-00 |
COLLAR Price: $16.49 |
| 40 |
F4X-82148-00-00 |
WIRE, LEAD 4 Price: $7.49 |
