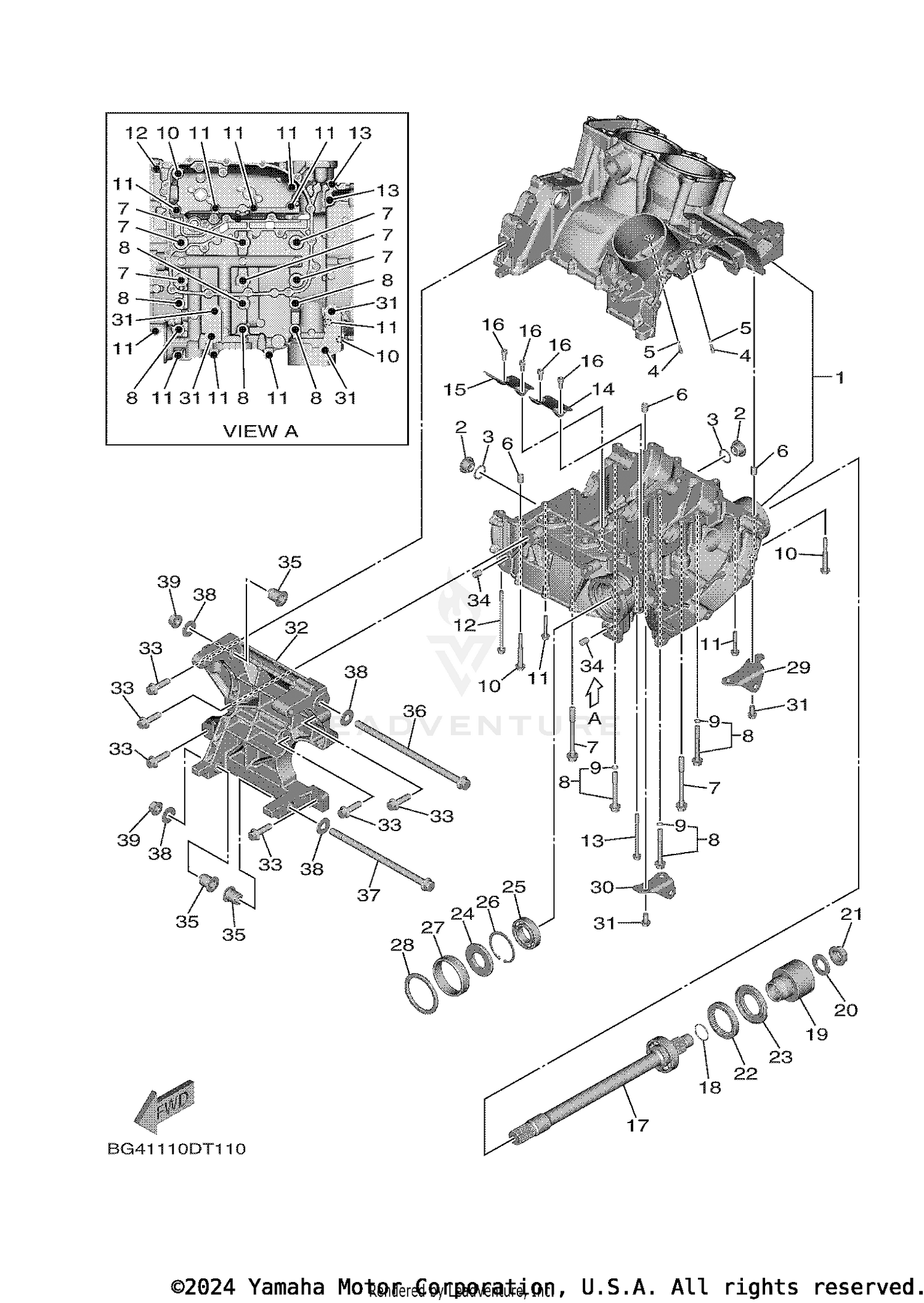

| Ref | Part Number | Description |
|---|
| 1 |
BG4-E5100-09-00 |
CRANKCASE ASSY This part replaces BG4-15150-00-00. Price: $647.99 |
| 2 |
4H7-15189-00-00 |
PLUG Price: $33.99 |
| 3 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 4 |
5EB-15155-00-00 |
NOZZLE 3 Price: $15.49 |
| 5 |
93210-04092-00 |
O-RING Price: $4.05 |
| 6 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 7 |
90119-09010-00 |
BOLT, WITH WASHER Price: $14.49 |
| 8 |
BG4-15156-00-00 |
BOLT, CRANKCASE JOURNAL Price: $8.49 |
| 9 |
93210-07540-00 |
O-RING Price: $7.49 |
| 10 |
90109-06100-00 |
BOLT Price: $9.49 |
| 11 |
95817-06040-00 |
BOLT, FLANGE This part replaces 95812-06040-00. Price: $6.49 |
| 12 |
95812-06120-00 |
BOLT, FLANGE Price: $4.25 |
| 13 |
90105-06202-00 |
BOLT, FLANGE Price: $2.05 |
| 14 |
BG4-15123-00-00 |
PLATE, BAFFLE 1 Price: $6.49 |
| 15 |
BG4-15124-00-00 |
PLATE, BUFFLE 2 Price: $9.49 |
| 16 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 17 |
BG4-1755A-00-00 |
MIDDLE DRIVEN SHAFT ASSY Price: $262.99 |
| 18 |
93210-25755-00 |
O-RING Price: $6.49 |
| 19 |
B4D-E7832-00-00 |
COUPLING This part replaces BG4-17832-00-00. Price: $51.99 |
| 20 |
90201-22025-00 |
WASHER, PLATE Price: $10.49 |
| 21 |
90179-22025-00 |
NUT Price: $22.99 |
| 22 |
90179-65305-00 |
NUT Price: $47.99 |
| 23 |
93102-40031-00 |
OIL SEAL Price: $18.49 |
| 24 |
93102-30018-00 |
OIL SEAL Price: $14.49 |
| 25 |
93306-00612-00 |
BEARING Price: $51.99 |
| 26 |
99009-55500-00 |
CIRCLIP Price: $10.49 |
| 27 |
90387-61001-00 |
COLLAR Price: $63.99 |
| 28 |
93210-63442-00 |
O-RING Price: $8.49 |
| 29 |
B4D-E4867-00-00 |
BRACKET This part replaces BG4-14867-00-00. Price: $6.49 |
| 30 |
B4D-E4868-00-00 |
BRACKET 2 This part replaces BG4-14868-00-00. Price: $4.95 |
| 31 |
95022-08016-00 |
BOLT, FLANGE Price: $0.85 |
| 32 |
BG4-17848-00-00 |
ADAPTER Price: $152.99 |
| 33 |
95812-10035-00 |
BOLT, FLANGE Price: $6.49 |
| 34 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 35 |
8FG-2149C-00-00 |
BOLT Price: $42.99 |
| 36 |
90105-12086-00 |
BOLT, FLANGE Price: $38.99 |
| 37 |
90105-12044-00 |
BOLT, FLANGE Price: $23.99 |
| 38 |
90201-120T5-00 |
WASHER, PLATE Price: $8.49 |
