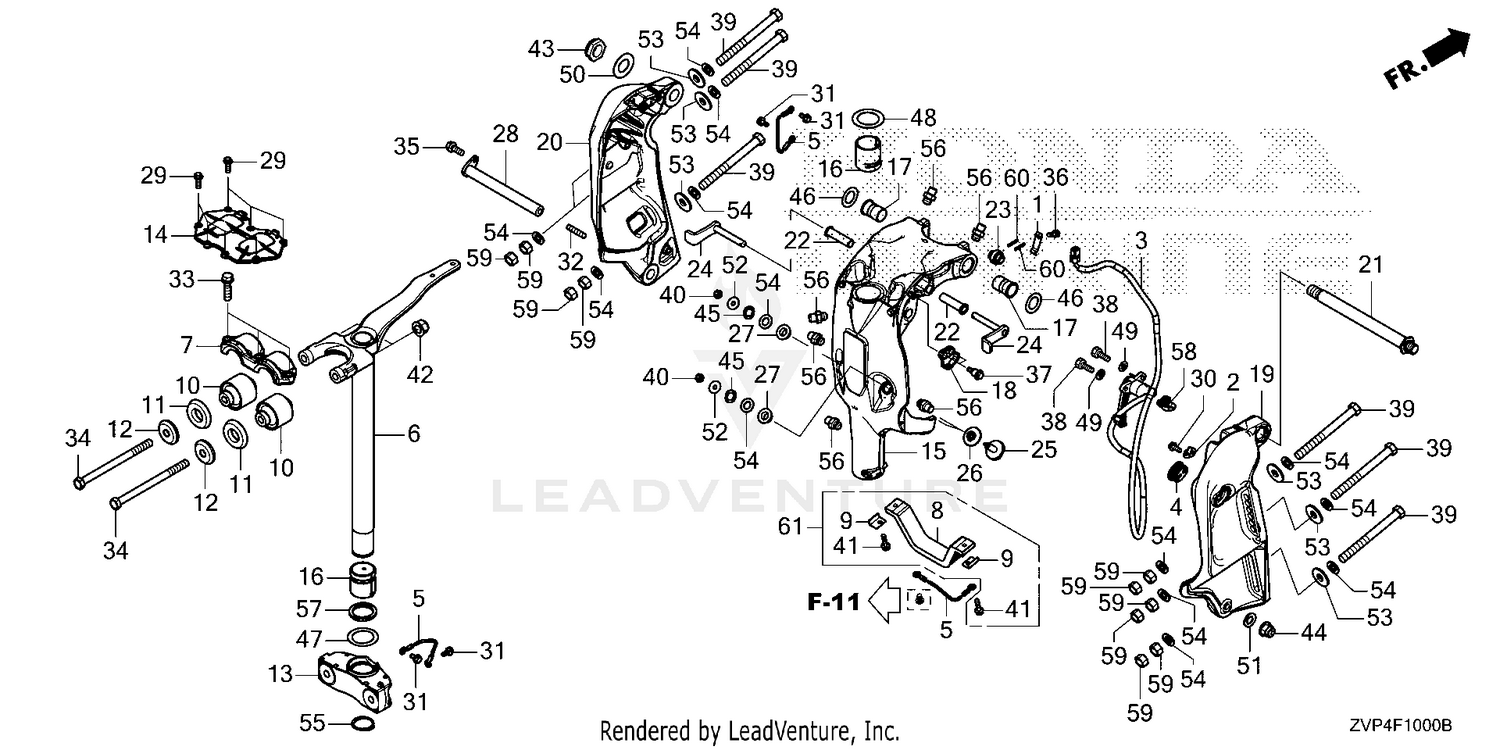

| Ref | Part Number | Description |
|---|
| 1 |
24211-ZVP-000 |
SPRING, CLICK Price: $5.22 |
| 2 |
32116-ZVP-000 |
BRACKET, HARN CLIP D Price: $5.18 |
| 3 |
35660-ZVP-003 |
SENSOR ASSY. Price: $315.32 |
| 4 |
35664-ZVP-000 |
GROMMET, SENSOR HARN Price: $12.30 |
| 5 |
40219-ZY3-023 |
WIRE, LEAD (1.5X116MM) Price: $12.40 |
| 6 |
50100-ZVP-000ZA |
FRAME, MOUNT *NH565* Price: $1,001.28 |
| 6 |
50100-ZVP-000ZB |
FRAME *NHB14M* Price: $1,001.28 |
| 7 |
50109-ZVP-000 |
HSG, MNT (UPPER) Price: $54.13 |
| 10 |
50151-ZVP-000 |
MOUNT COMP, RUBBER Price: $75.16 |
| 11 |
50153-ZVP-000 |
RUBBER, MNT STOPPER Price: $15.18 |
| 12 |
50158-ZVP-000 |
STOPPER, MOUNT Price: $34.72 |
| 13 |
50161-ZVP-000 |
HSG, MT CTR (LOWER) Price: $114.52 |
| 14 |
50166-ZVP-000 |
COVER, MOUNT (UPPER) Price: $67.22 |
| 15 |
50201-ZVP-000ZA |
CASE, SWIVEL *NH565* Price: $1,092.71 |
| 15 |
50201-ZVP-000ZB |
CASE *NHB14M* Price: $1,092.71 |
| 16 |
50211-ZVP-000 |
LINER, SWIVEL CASE Price: $8.19 |
| 17 |
50214-ZVP-000 |
BUSH, SWIVEL CASE Price: $8.19 |
| 18 |
50223-ZVP-000 |
CAM, TRIM/TILT ANGLE Price: $7.92 |
| 19 |
50301-ZVP-000ZA |
BRACKET *NH565* Price: $544.32 |
| 19 |
50301-ZVP-000ZB |
BRACKET *NHB14M* Price: $544.32 |
| 20 |
50311-ZVP-000ZA |
BRACKET *NH565* Price: $544.32 |
| 20 |
50311-ZVP-000ZB |
BRACKET *NHB14M* Price: $544.32 |
| 21 |
50381-ZVP-000 |
SHAFT, TILTING Price: $83.42 |
| 22 |
50522-ZY3-000 |
BUSH, TILT ARM Price: $10.98 |
| 23 |
50527-ZVP-000 |
BRACKET, TILTING Price: $8.88 |
| 24 |
50529-ZVP-000 |
STOPPER, TILT Price: $69.46 |
| 25 |
56516-ZY3-A00 |
RECEIVER, THRUST Price: $20.32 |
| 26 |
56518-ZY3-A00 |
BUSH A, THRUST RECEIVE Price: $16.40 |
| 27 |
56519-ZY3-A00 |
BUSH B, THRUST RECEIVE Price: $8.08 |
| 28 |
56539-ZVL-000 |
SHAFT, CYLINDER (LOWER) Price: $109.88 |
| 29 |
90005-ZW9-030 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $2.54 |
| 30 |
90101-ZX2-C00 |
BOLT-WASHER (6X16) Price: $3.90 |
| 31 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 32 |
90105-ZVL-000 |
BOLT, STUD (10X28) Price: $6.80 |
| 33 |
90105-ZVP-000 |
BOLT-WASHER (10X37) Price: $5.92 |
| 34 |
90106-ZVP-000 |
BOLT, HEX. (14X205) Price: $58.84 |
| 35 |
90106-ZY3-A00 |
BOLT, FLANGE (8X22) Price: $1.42 |
| 36 |
90110-881-000 |
BOLT, HEX. (6X14) Price: $2.90 |
| 37 |
90113-ZY3-C00 |
BOLT, SPECIAL (6X22) Price: $13.70 |
| 38 |
90124-ZV4-000 |
BOLT, HEX. (6X20) Price: $2.90 |
| 39 |
90129-ZVL-000 |
BOLT, HEX. (12X150) Price: $22.04 |
| 40 |
90205-ZY1-000 |
NUT, SELF-LOCK (6MM) Price: $6.52 |
| 42 |
90302-ZVP-000 |
NUT (14MM) Price: $15.00 |
| 43 |
90304-ZV5-013 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF) Price: $24.24 |
| 44 |
90306-ZW4-003 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) Price: $5.94 |
| 45 |
90501-ZY3-A00 |
WASHER, WAVE (12MM) Price: $5.18 |
| 46 |
90502-ZV5-000 |
WASHER, WAVE (26MM) Price: $11.94 |
| 47 |
90502-ZVP-000 |
WASHER, WAVE (45MM) Price: $10.42 |
| 48 |
90504-ZVP-000 |
WASHER (45MM) Price: $5.74 |
| 49 |
90506-ZV4-000 |
WASHER, PLAIN (6MM) Use up to Frame SN 4800342. Price: $3.36 |
| 50 |
90509-ZY3-000 |
WASHER (7/8") Price: $1.62 |
| 51 |
90511-921-000 |
WASHER, PLAIN (10MM) Price: $1.18 |
| 52 |
90512-ZV4-000 |
WASHER, PLAIN (6MM) Price: $4.16 |
| 53 |
90552-ZV5-000 |
WASHER, PLAIN (12MM) Price: $6.40 |
| 54 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 55 |
90651-ZVP-000 |
CIRCLIP, EX (44) Price: $8.58 |
| 56 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 57 |
91256-ZVP-003 |
OIL SEAL Price: $20.76 |
| 58 |
91540-3A0-003 |
CLIP, HARNESS BAND (175.2MM) (DARK GRAY) Price: $0.56 |
| 59 |
94001-12490-0S |
NUT, HEX. (12MM) Price: $2.60 |
| 60 |
94305-30203 |
PIN, SPRING (3X20) Price: $1.62 |
