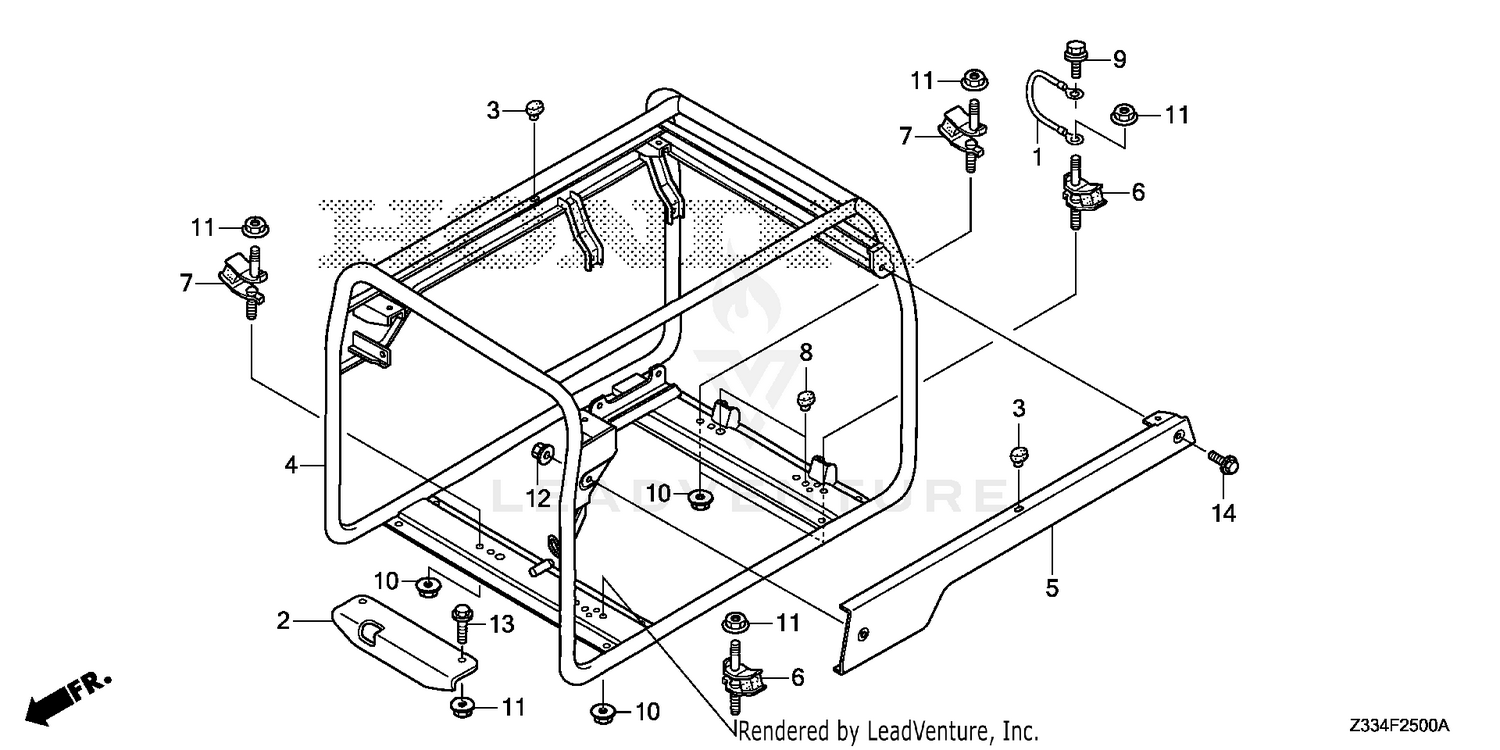

| Ref | Part Number | Description |
|---|
| 1 |
32610-ZD1-A40 |
CABLE, SUB-GROUND Price: $8.08 |
| 2 |
50138-Z16-000 |
BRACKET, STOPPER Price: $30.40 |
| 3 |
50153-ZR6-000 |
RUBBER, FUEL TANK MOUNTING Price: $5.96 |
| 4 |
50310-Z33-V20ZA |
FRAME *NH105* (CL) (MAT BLACK) Price: $534.56 |
| 5 |
50315-Z33-V20ZA |
FRAME, R. SIDE *NH105* (MAT BLACK) Price: $67.90 |
| 6 |
68325-Z21-E30 |
RUBBER (LOWER) Price: $25.70 |
| 7 |
68325-Z22-E30 |
RUBBER (LOWER) Price: $25.64 |
| 8 |
68331-Z18-000 |
RUBBER, BUMP STOP Price: $3.86 |
| 9 |
90148-SE0-003 |
BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) Price: $10.86 |
| 10 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 11 |
94050-10000 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867). Price: $1.94 |
| 12 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 13 |
95701-10040-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (10X40) Price: $1.90 |
