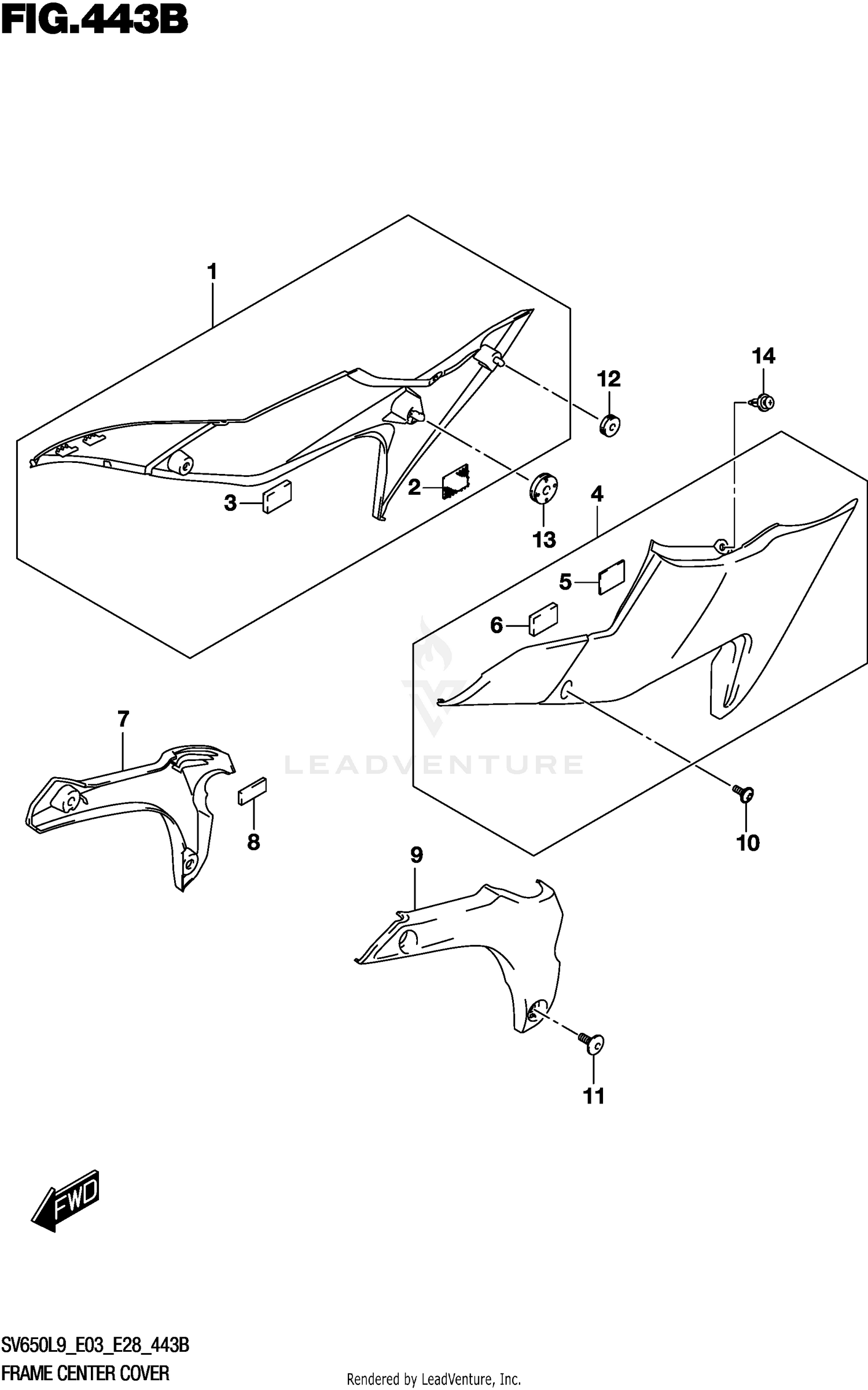

FRAME CENTER COVER (SV650L9 E33)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47110-18K00 | COVER,FRAME FRONT,R Price: $122.22 |
| 2 | 44572-13G00 | FASTENER (33X25X2.6) Price: $13.67 |
| 3 | 51827-01A00 | CUSHION This part replaces 63411-35B00. Price: $6.66 |
| 4 | 47210-18K00 | COVER,FRAME,L Price: $122.22 |
| 5 | 44572-13G00 | FASTENER (33X25X2.6) Price: $13.67 |
| 6 | 51827-01A00 | CUSHION This part replaces 63411-35B00. Price: $6.66 |
| 7 | 47611-18K00-YKV | COVER,FRAME LOWER,R (BLACK) Price: $142.63 |
| 8 | 47613-44H00 | CUSHION (18X43X5) Price: $7.35 |
| 9 | 47711-18K00-YKV | COVER,FRAME LOWER,L (BLACK) Price: $142.63 |
| 10 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 11 | 47915-31J00 | SCREW (6X16) Price: $3.61 |
| 12 | 09320-06504 | CUSHION Price: $6.04 |
| 13 | 09320-08028 | CUSHION (8X26X7) Price: $3.70 |
