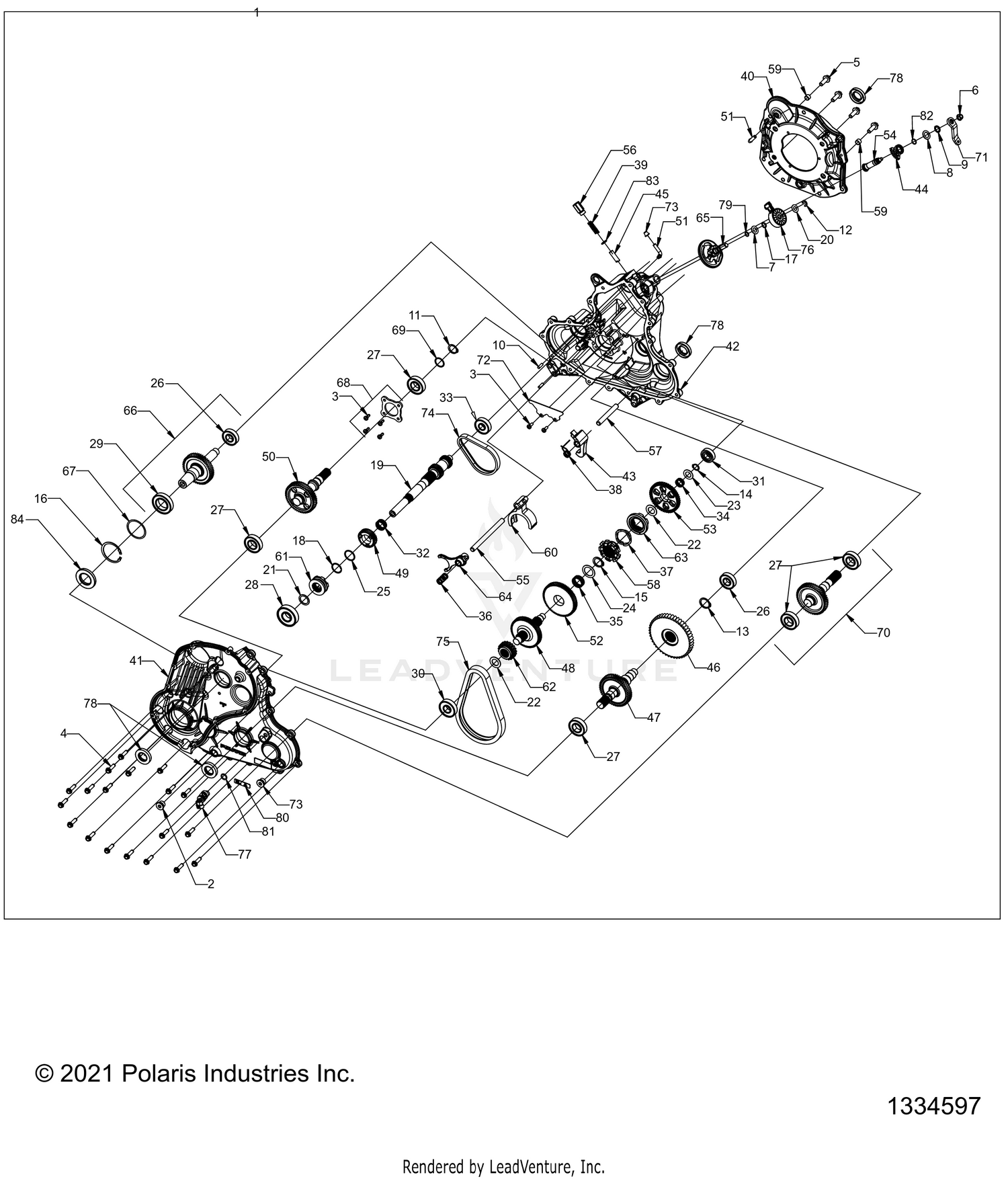

| Ref | Part Number | Description |
|---|
| 1 |
1334597 |
ASM-TRANS,BOSS/LUK,1/1,SUPLOW Price: $2,704.99 |
| 2 |
3234756 |
PLUG, M18 X 1.5 MAGNETIC Price: $39.99 |
| 3 |
3234309 |
SCREW, 6-LOBE, PAN HD M6 X 1 X 16 Price: $8.99 |
| 4 |
3234898 |
SCREW-HEXFLANGEHEAD,M8X1.25X30 Price: $11.99 |
| 5 |
3234634 |
SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30 Price: $16.99 |
| 6 |
3233961 |
NUT, LOCK, HEX FLANGE NYLON 5/16-24 Price: $3.49 |
| 7 |
3234636 |
WASHER, THRUST, 0.5 X 0.937 X 0.063 Price: $9.99 |
| 8 |
3234637 |
WASHER, THRUST, .625 X 1.000 X 0.063 Price: $13.99 |
| 9 |
3235508 |
WASHER, RIBBED Price: $4.99 |
| 10 |
3234330 |
PIN, DOWEL 6 X 20 Price: $8.99 |
| 11 |
3233106 |
RING,RETAINING BASIC,EXTERNAL 0.984 Price: $6.99 |
| 12 |
3233834 |
RING, RETAINING BASIC EXTERNAL Price: $12.99 |
| 13 |
3233699 |
RING RETAINING, IRR 7200-118 Price: $8.99 |
| 14 |
3234318 |
RING, RETAINING, EXTERNAL SHR-66 Price: $3.99 |
| 15 |
3234327 |
RING, RETAINING BASIC, EXTERNA Price: $8.99 |
| 16 |
3234741 |
RING, RETAINING BASIC, INTERNAL, 62MM Price: $11.99 |
| 17 |
3234639 |
RING, RETAINING BASIC, EXTERNAL, SHR-50 Price: $12.99 |
| 18 |
3234641 |
RING, RETAINING, EXTERNAL USC-112 Price: $16.99 |
| 19 |
3236308 |
SHAFT, INPUT 25T Price: $394.99 |
| 20 |
3234642 |
WASHER,THRUST,0.446 X 0.88 X 0.025 Price: $12.99 |
| 21 |
3234248 |
WASHER, THRUST 1.300 X 0.995 X 0.065 Price: $11.99 |
| 22 |
3234643 |
SHIM, 1.35 OD X 0.818 ID Price: $44.99 |
| 23 |
3234644 |
SHIM, 1.17 OD X 0.675 ID Price: $16.99 |
| 24 |
3234646 |
WASHER, THRUST, 1.568 OD X .1.110 ID Price: $29.99 |
| 25 |
3234757 |
WASHER, THRUST, Ø 33 X Ø 29 X 1.5 Price: $13.99 |
| 26 |
3233018 |
BEARING-BALL,6307 C3,35X80X21 Price: $34.99 |
| 27 |
3233019 |
BEARING, BALL, 6205 C3 25X52X15 Price: $39.99 |
| 28 |
3233020 |
BEARING Price: $59.99 |
| 29 |
3233265 |
BEARING-BALL 6007 C3 35 X 62 X 14 Price: $49.99 |
| 30 |
3234651 |
BEARING BALL,6304STD 20X52X15 Price: $19.99 |
| 31 |
3234274 |
BEARING, BALL 6203 17 X 40 X 12 Price: $34.99 |
| 32 |
3234759 |
BEARING, NEEDLE, SPLIT CAGE Price: $19.99 |
| 33 |
3234652 |
BEARING, BALL 6303, 17 X 47 X 14 Price: $19.99 |
| 34 |
3234655 |
BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10 Price: $19.99 |
| 35 |
3234656 |
BEARING, NEEDLE, 28 X 33 X 13 Price: $19.99 |
| 36 |
3234687 |
SPRING, COMPRESSION, 0.648 O.D. X 1.33 Price: $10.99 |
| 37 |
3234688 |
SPRING, WAVE, 1.60 ID X 0.375 Price: $12.99 |
| 38 |
3234787 |
SPRING, PARK PAWL, TORSION Price: $34.99 |
| 39 |
3234790 |
SPRING, COMPRESSION, 0.45 OD X 1.58 Price: $29.99 |
| 40 |
3235196 |
BELLHOUSING, MACH Price: $49.99 |
| 41 |
3235614 |
GEARCASE GTO , COVER, MACH. Price: $554.99 |
| 42 |
3235615 |
GEARCASE, MAIN, GTO MACH Price: $479.99 |
| 43 |
3239339 |
PAWL, PARK Price: $64.99 |
| 44 |
3234694 |
GEAR, SECTOR, 38T Price: $39.99 |
| 45 |
3234695 |
BULLET DETENT Price: $44.99 |
| 46 |
2204332 |
SPROCKET, 47 TOOTH Price: $214.99 |
| 47 |
3235505 |
SHAFT, OUTPUT REAR Price: $514.99 |
| 48 |
3235612 |
SHAFT, REVERSE, 61T Price: $274.99 |
| 49 |
3235613 |
GEAR, HELICAL 33T Price: $144.99 |
| 50 |
3236557 |
SHAFT, INPUT Price: $299.99 |
| 51 |
3234230 |
TUBE, VENT 90 -1/4 INCH HOSE Price: $12.99 |
| 52 |
3234706 |
GEAR, 67T Price: $114.99 |
| 53 |
3236309 |
SPROCKET 48T 6-FACE Price: $64.99 |
| 54 |
3234712 |
SHAFT, SHIFT, BELLCRANK Price: $79.99 |
| 55 |
3234714 |
Rail, Shift, Shaft Price: $34.99 |
| 56 |
3234715 |
PLUG, DETENT Price: $44.99 |
| 57 |
3234716 |
RAIL, PARK SHAFT Price: $34.99 |
| 58 |
3234718 |
DOG, ENGAGEMENT, GTO, LOW Price: $229.99 |
| 59 |
3234765 |
PIPE, KNOCK Price: $16.99 |
| 60 |
3236310 |
FORK, SHIFT Price: $114.99 |
| 61 |
3235190 |
DOG, ENGAGEMENT, GTO, HIGH Price: $89.99 |
| 62 |
2204331 |
Sprocket, 19T Price: $104.99 |
| 63 |
3235341 |
DOG, ENGAGEMENT, GTO, REV/LOW Price: $224.99 |
| 64 |
3235342 |
FORK, SHIFT Price: $109.99 |
| 65 |
3234767 |
SUBASM., SWITCH SHAFT Price: $154.99 |
| 66 |
3235191 |
SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25) Price: $384.99 |
| 67 |
2204268 |
KIT, GTO, PRIMARY SHIM PACK Price: $49.99 |
| 68 |
3235198 |
SUBASSY BEARING COVER W/SCREWS (#3) Price: $29.99 |
| 69 |
2204343 |
KIT, LUK, INPUT SHAFT SHIM PACK Price: $39.99 |
| 70 |
3235506 |
SUBASSY, OUTPUT, FRONT W/BEARINGS (#27) Price: $369.99 |
| 71 |
3234724 |
BELLCRANK, 15T SPLINE Price: $34.99 |
| 72 |
3234725 |
Deflector, Oil Price: $16.99 |
| 73 |
3234755 |
PLUG, M18 X 1.5 Price: $34.99 |
| 74 |
3235633 |
CHAIN, SILENT, TYPE 103 .25P X .48W X 58L Price: $329.99 |
| 75 |
3235245 |
CHAIN SILENT, 0.75 X .375P X 64P Price: $259.99 |
| 76 |
7662383 |
SWITCH, ROTARY, 2 PIN RESISTIVE Price: $139.99 |
| 77 |
4013908 |
SENSOR-SPEED,TRANS Price: $114.99 |
| 78 |
3234892 |
SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON Price: $44.99 |
| 79 |
3236171 |
O-RING - N70, 9.5 MM X 2 MM Price: $11.99 |
| 80 |
2878068 |
AGL GEARCASE & TRANS OIL, QT This part replaces 2877606. Price: $24.99 |
| 81 |
3233840 |
O-RING, -113 VITON Price: $13.99 |
| 82 |
3233828 |
O-RING, -014 VITON Price: $8.49 |
| 83 |
3234729 |
O-RING, 0.53 I.D X 0.082 WIDE Price: $16.99 |
