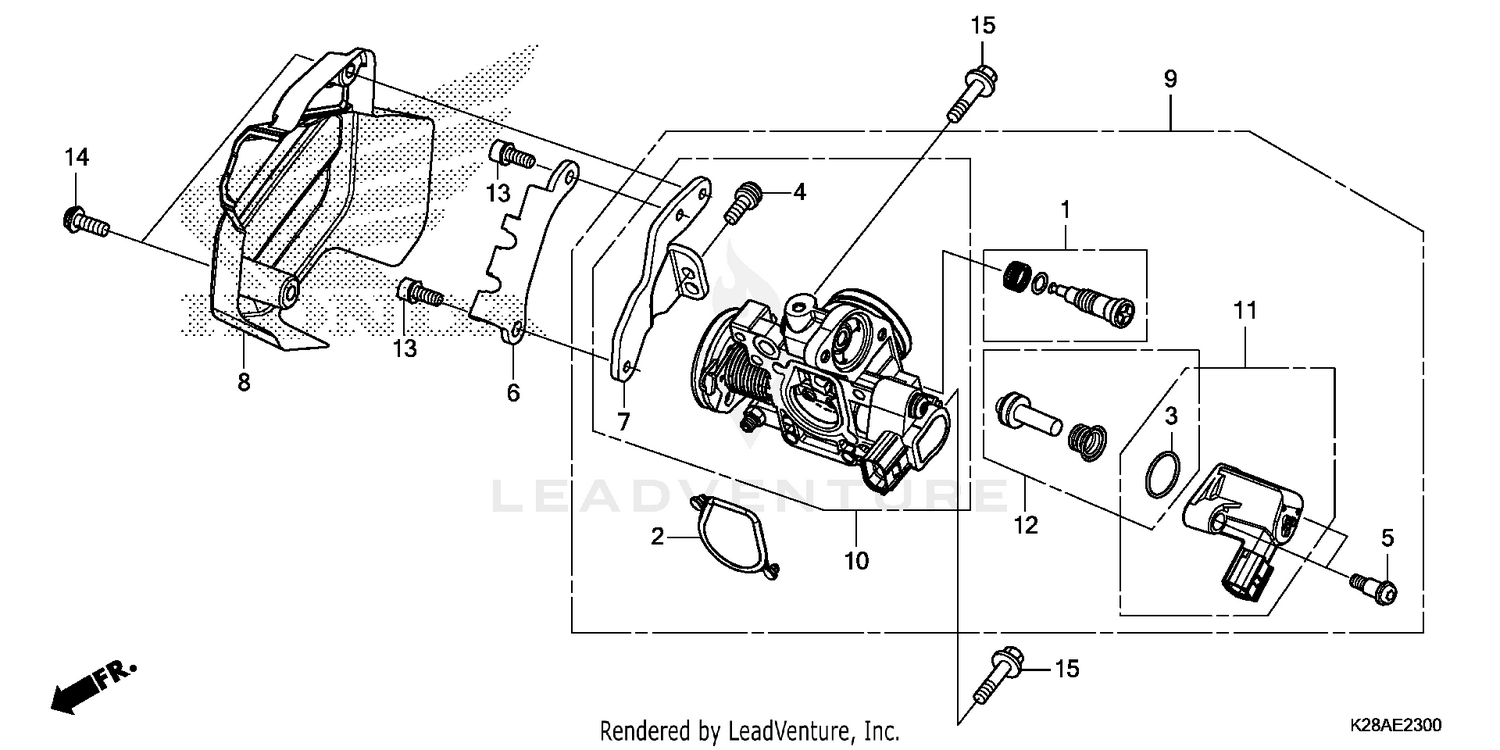

THROTTLE BODY
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16016-K03-H11 | SCREW SET Price: $2.20 |
| 2 | 16075-KWW-641 | O-RING Price: $7.55 |
| 3 | 16077-KVB-S51 | O-RING (1.9X20.4) Price: $1.56 |
| 4 | 16081-KVS-J01 | SCREW-WASHER (5X12) (TORX) Price: $8.80 |
| 5 | 16081-KYJ-901 | SCREW, TORX (5X8.7) Price: $3.13 |
| 6 | 16168-K28-A61 | STAY B, THROTTLE WIRE Price: $13.02 |
| 7 | 16169-K28-A61 | STAY A, THROTTLE WIRE Price: $15.09 |
| 8 | 16305-K28-A60 | COVER, THROTTLE BODY Price: $18.24 |
| 9 | 16400-K28-A61 | BODY ASSY., THROTTLE (GQRYB A) Price: $352.58 |
| 10 | 16410-K28-A61 | BODY SET Price: $236.38 |
| 11 | 16480-KVB-S51 | SOLENOID Price: $55.02 |
| 12 | 16485-KVB-S51 | SEAT SET Price: $57.93 |
| 13 | 90001-K35-V00 | BOLT, SOCKET (5X12) Price: $0.25 |
| 14 | 93891-05014-07 | SCREW-WASHER (5X14) Price: $1.16 |
